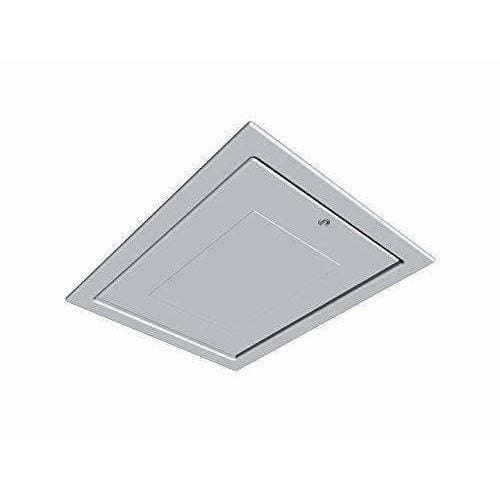

The Manthorpe GL250-03 Loft Access Door (also known as a loft hatch) is the best selling and longest established loft access of the Manthorpe range which is great for both new build and retro fit to replace your existing loft hatch.
Frame seals to ceiling
Thermally insulated lid
Secure catches to ensure draught sealing and to prevent wind uplift
Easy-clean textured finish
Pre-formed frame and fixing screws provided
Foam compression seal for draught free fitting
How do you install a loft door?
Ensure there is a minimum of 100m between the edge of the loft opening and any wall or obstruction.
Unlock and remove the door from the frame before you start installation.
Place the frame into the roof space opening to create an airtight seal. Then use the screws provided to fix the frame into place.
Ensure the hinge lugs are exposed so that the cover is in the open position. Align the door panel with the frame slots. Check that the door swings freely before moving on.
Secure the hinge with the blockers which prevents the removal of the door.
Close using the twist action lock to secure the air tight foam compression seal.
What are the benefits of a loft door?
The benefits of installing a loft door include:
Improved heat retention: Air leakage is reduced increasing heat retention in the house below and preventing warm air from entering the loft, which is in-line with Part L of the building regulations. This also produces lower heating costs as a result. The Manthorpe GL250-03 comes with a thermally insulated lid to enhance energy efficiency in your home.
Easy loft access: Loft space access is made much easier with a door installed, while also improving the overall security of the property.
Lower condensation: With more heat retained in the home, the risk of condensation is reduced both in the loft space and on the surface of the hatch, as moisture is less likely to get into the area.
Comfortable home: You’ll enjoy a warmer, more comfortable home once a new, air tight loft door has been installed.
How do I open the loft door?
The Manthorpe GL250-03 can be opened by hand or with a pole attachment (this has to be purchased separately) which allows you to open the door at floor level. Alternatively, you can also buy the GLL256 or GLL257 loft ladders which are compatible with the door. When it comes to closing the door it uses a three-point closing mechanism with a unique hinge system. This design enables the door to be either hinged downwards or removed completely so you can gain access to the roof space without any obstacle.
What are loft doors made of?
The Manthorpe GL250-03 loft doors is made from high impact polystyrene, which is a rubber modified version of standard polystyrene. This adds to the durability of the thermoplastic, creating a higher impact resistance making it ideal for use in the home where general wear and tear will occur.
How do I measure the loft hatch?
Use a tape measure to measure the length and width of the loft frame. Many loft openings are not fully square and you should account for about 5mm over your measurements to compensate for this. For example, if your loft opening is 730 x 570mm you can buy a loft door at 725 x 565mm and it should still fit. This is true with every loft space and loft door installed.
Fitting Requirements Prepare a 562 x 726mm opening in the ceiling. Remove the frame from the door and locate it squarely into the opening, fixing in place with the screws provided. Finally replace the door into the frame ensuring the hinge system is correctly located. Secure door by turning the door catch anti-clockwise.
Size Information
Door Sizes:
Overall Size: 821mm x 656mm
Fitting Size: 562mm x 726mm
Accessible Opening: 700mm x 530mm
Insulation for Air Leakage Options:
50mm Expanded Polystyrene
Manthorpe
Loft Door
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Downloadable information can be found here:
