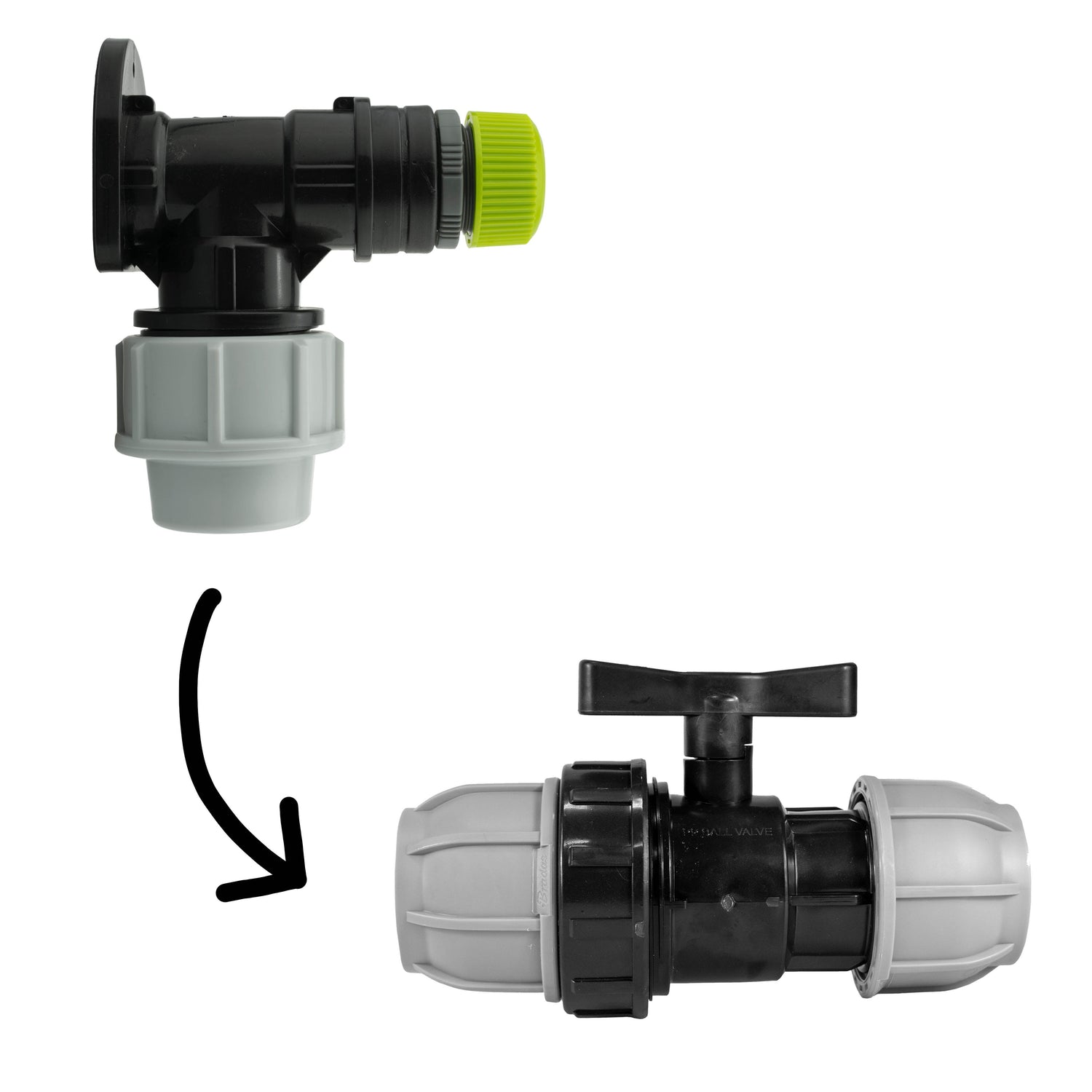

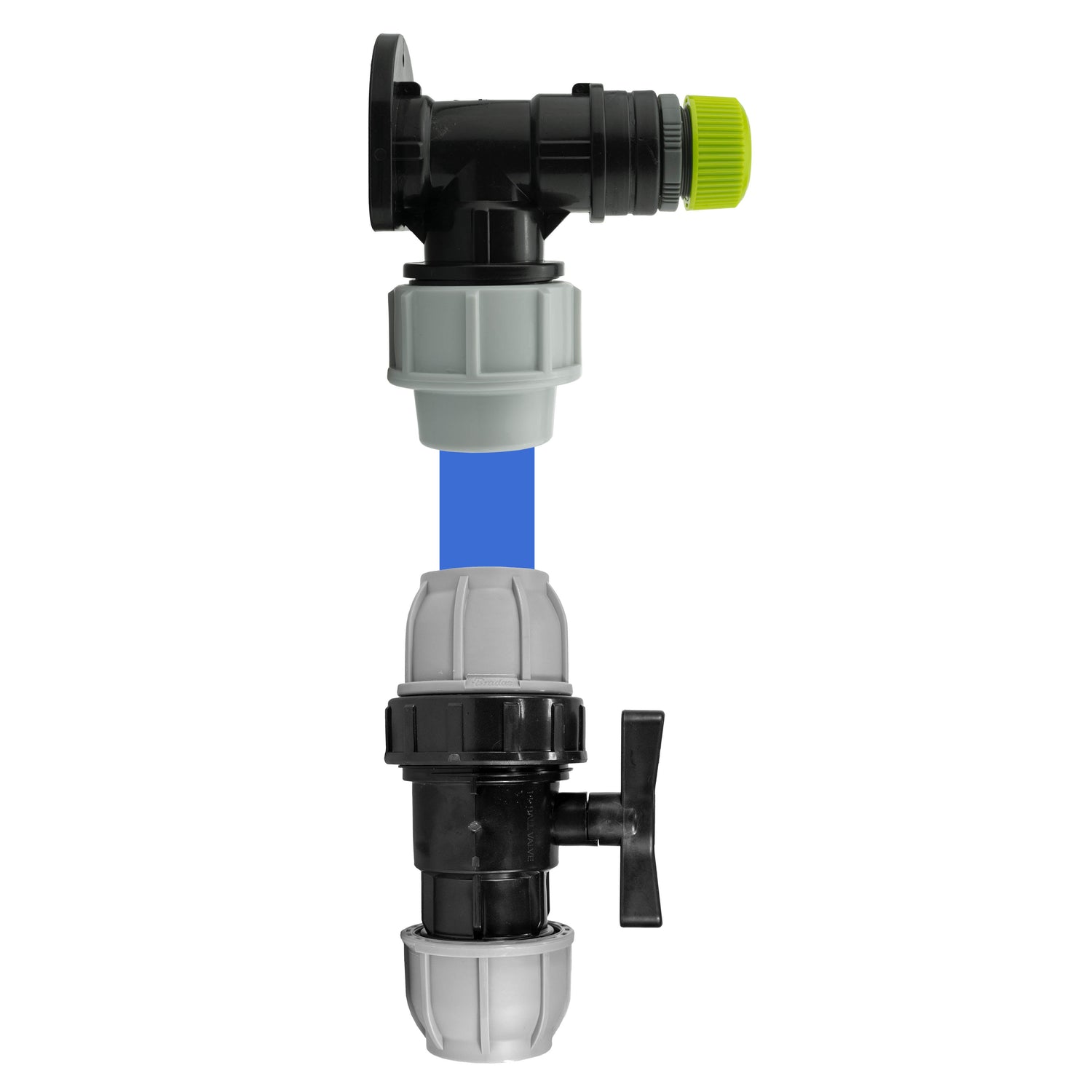

WF32KIT023 is a compact MDPE wall-flange kit for 32mm MDPE piping, delivering a neat, wall-mounted outlet with an integrated valve and direct hose connection. It’s aimed at tradespeople and installers tackling water supply or irrigation runs where a robust, straightforward fit is required.

What’s in the kit

  • MDPE Wall Flange 32mm – ¾" BSP (MDPEWF32-34BSPF)

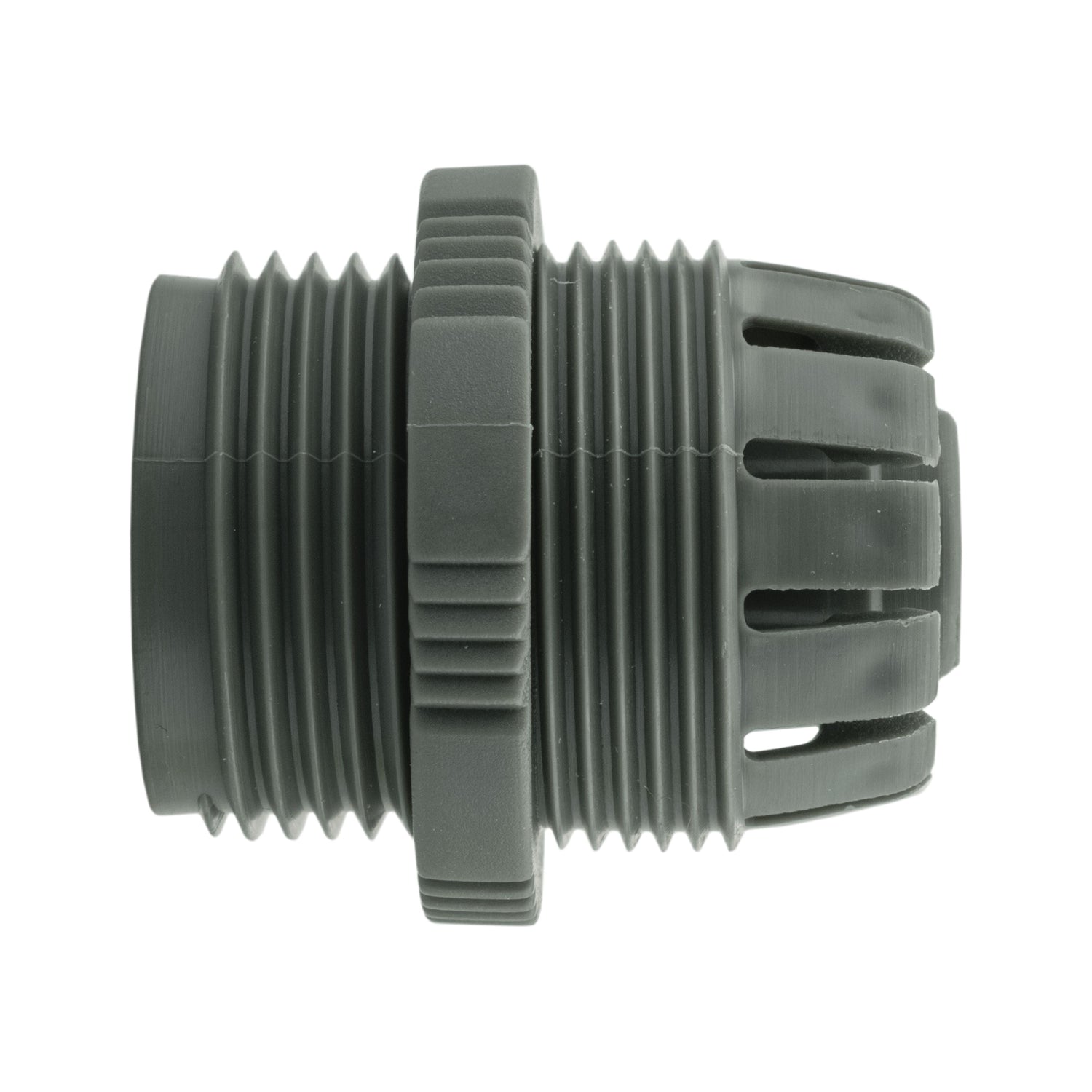

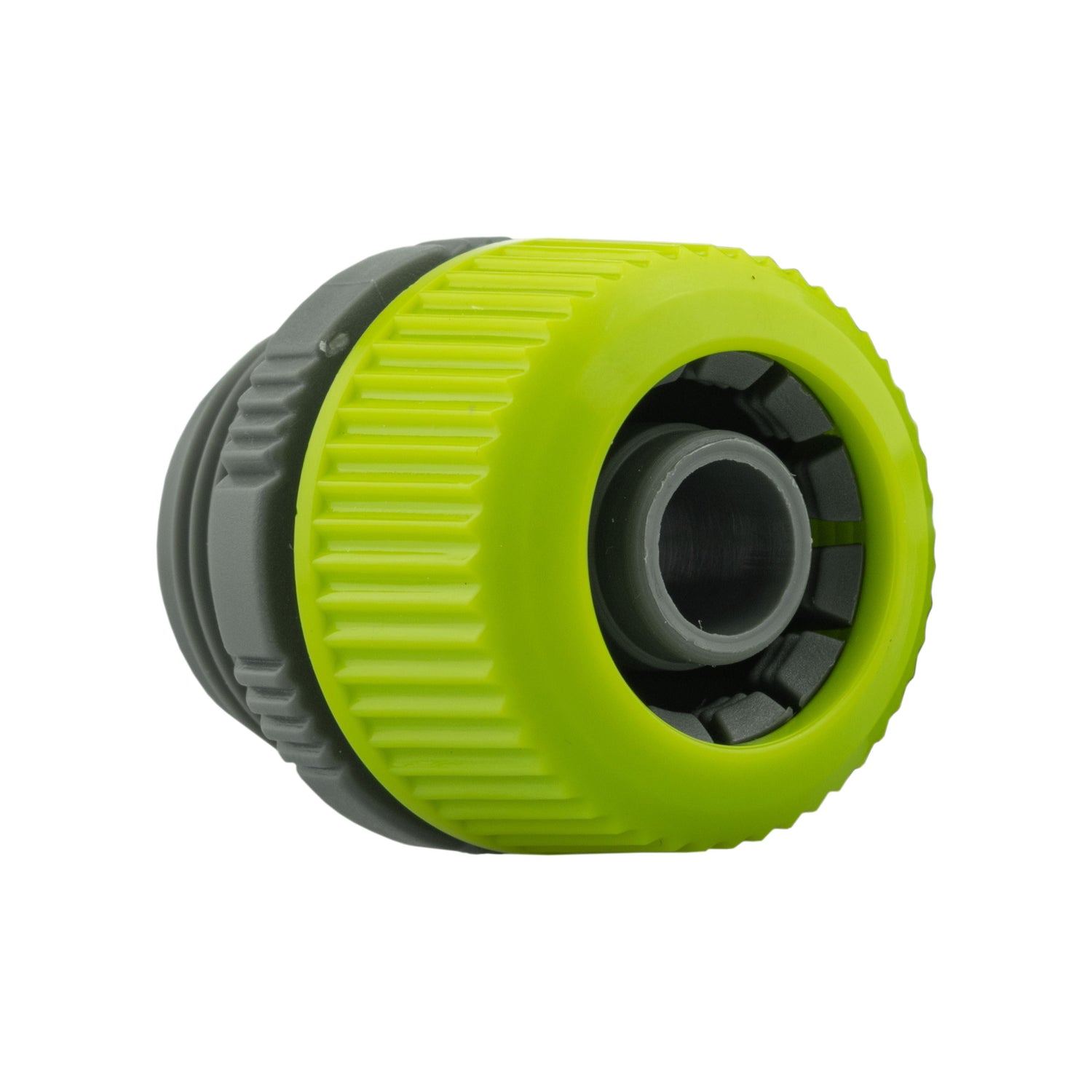

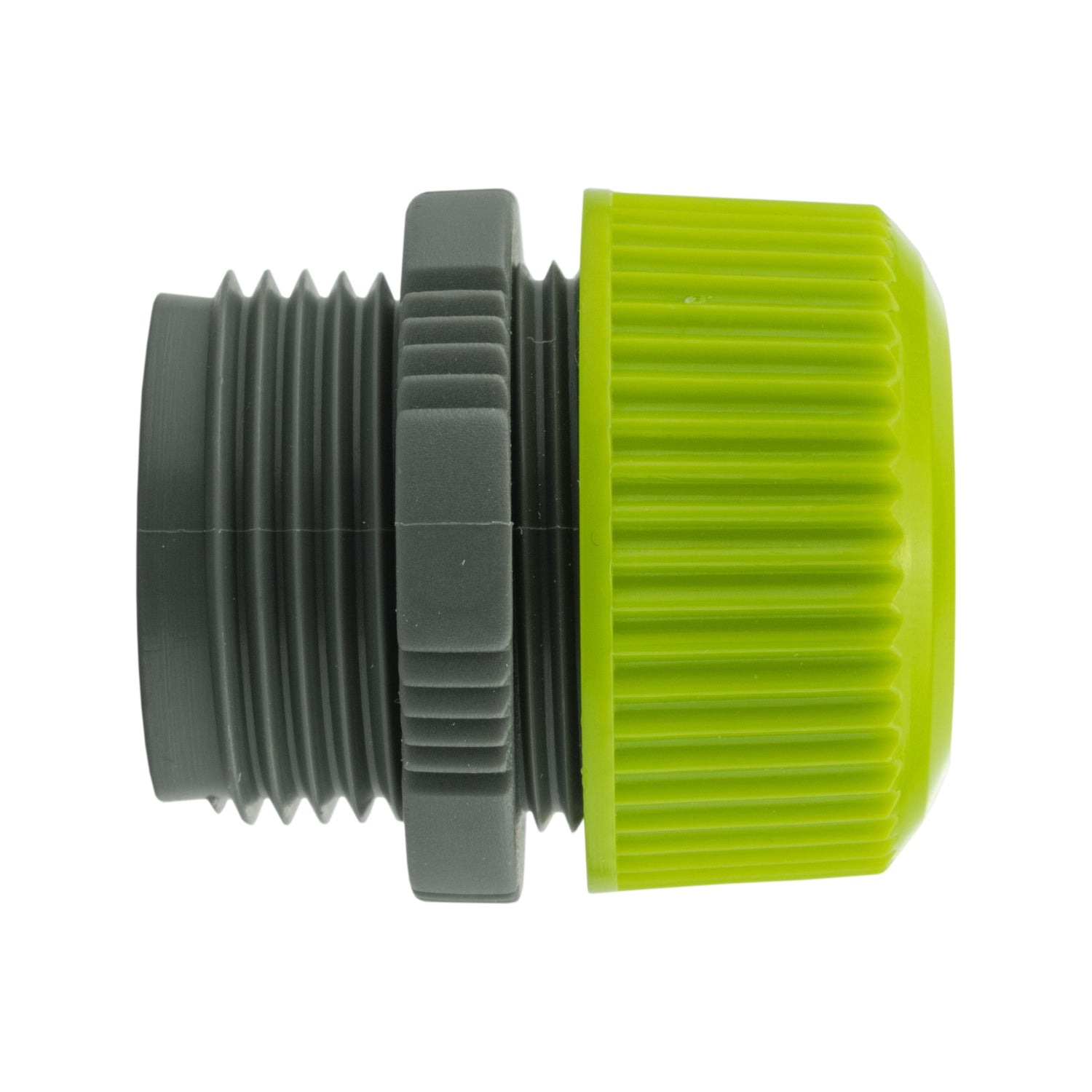

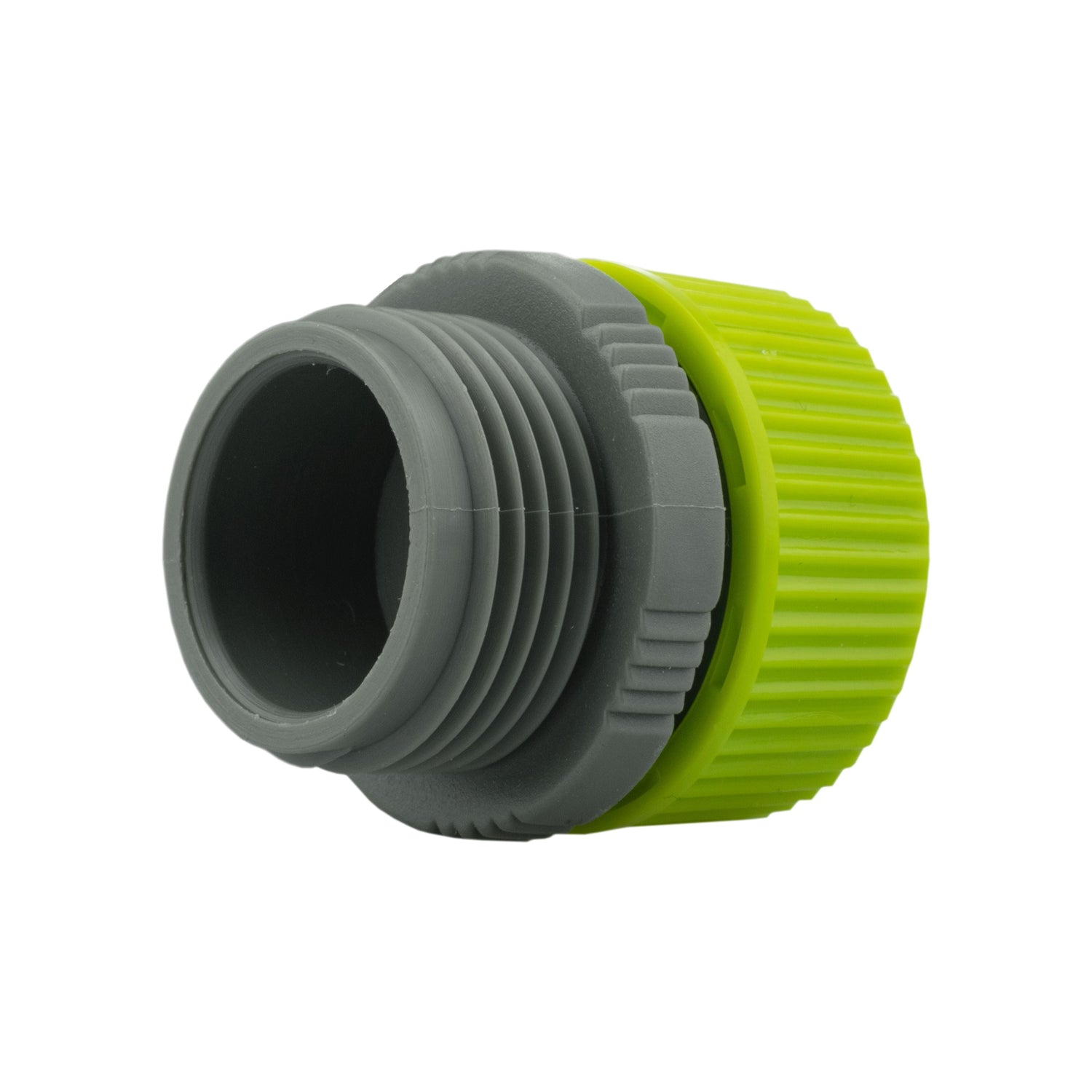

  • Hose Mender Direct Connector (HC12-TH-MENDERLIME) – ½" hose connection

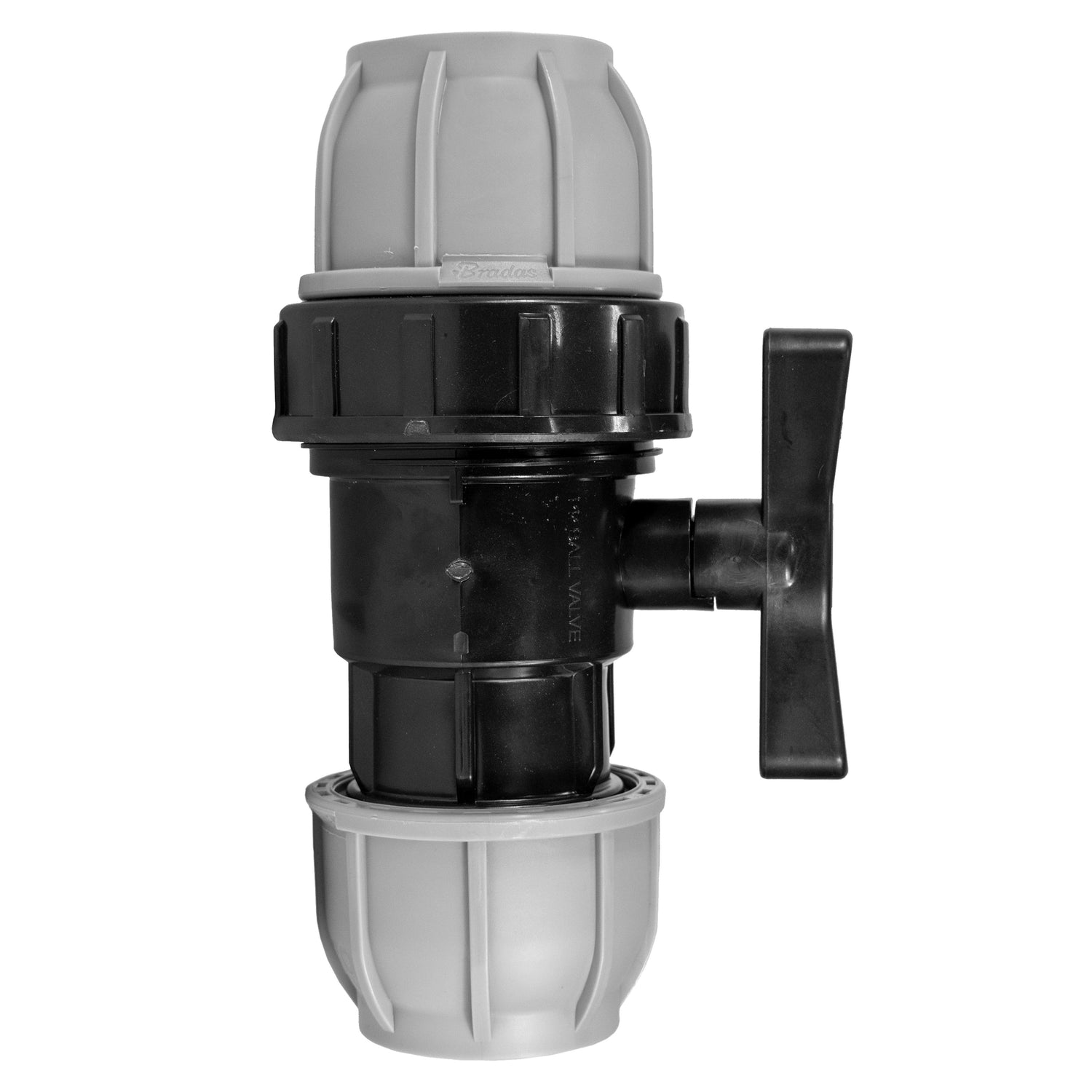

  • MDPE Valve 32mm (MDPEVALVE32) – MDPE compatible shut‑off

Key specifications and practical benefits

  • Pressure rating: MDPE PN10 fittings are engineered to handle up to 10 bar, making them suitable for domestic mains and irrigation systems in typical UK conditions.
  • Material and durability: MDPE fittings offer good chemical resistance, flexibility and long‑term durability, with a design that tolerates outdoor weathering when installed correctly.
  • Compression-connection system: The kit uses threaded compression connections that provide a tight, leak‑free seal without the need for specialist tooling. This supports fast on‑site assembly and easier future maintenance.
  • Wall‑mounted outlet: The wall flange enables a tidy connection point to a flat surface, reducing strain on the pipe run and improving the appearance and reliability of external installations.
  • Flow control: The integrated MDPE valve allows you to isolate the line for service or testing without draining the whole system, which is particularly helpful in garden irrigation or external water lines.
  • Direct hose connection: The hose mender features a BSP thread designed to secure ½" hose pipe efficiently, with a teeth profile intended to minimise hose movement and leaks under pressure.
  • Installation note: PTFE tape is not included with this kit and should be purchased separately if your application requires it for thread sealing.

Use cases and installation tips

  • External water points for garden taps, irrigation runs and pond lines where a wall outlet is preferred.
  • Temporary or permanent connections to flat surfaces in sheds, garages or outbuildings where controlled isolation is beneficial.
  • Sites needing a quick, reliable MDPE connection with a dedicated shut‑off for maintenance or testing.

Designed for straightforward on‑site fitting, this kit helps tradespeople save time by pairing a wall flange, valve and hose connection in one assembly. It provides a clear, durable interface for MDPE piping while maintaining simplicity and accessibility for routine servicing.
