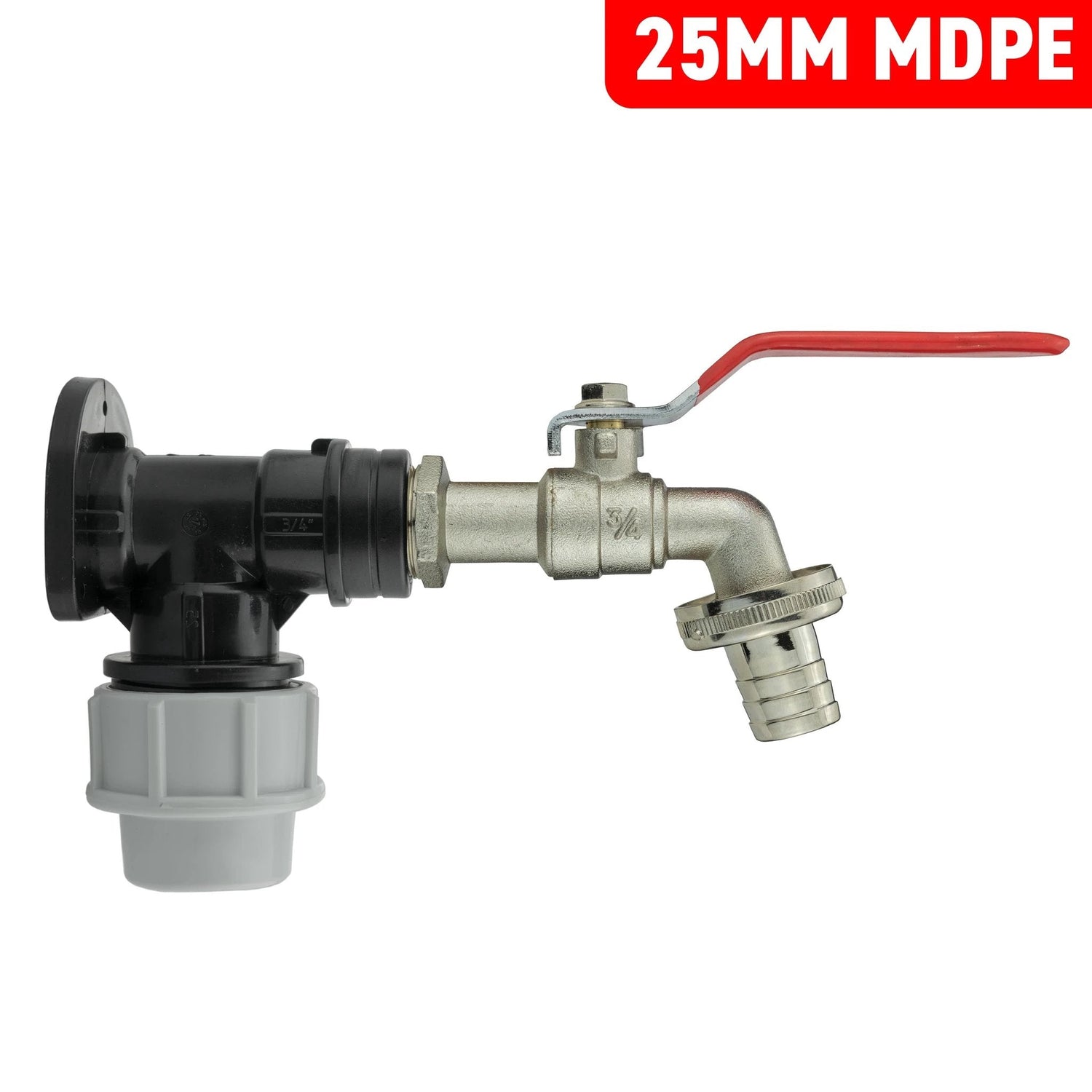

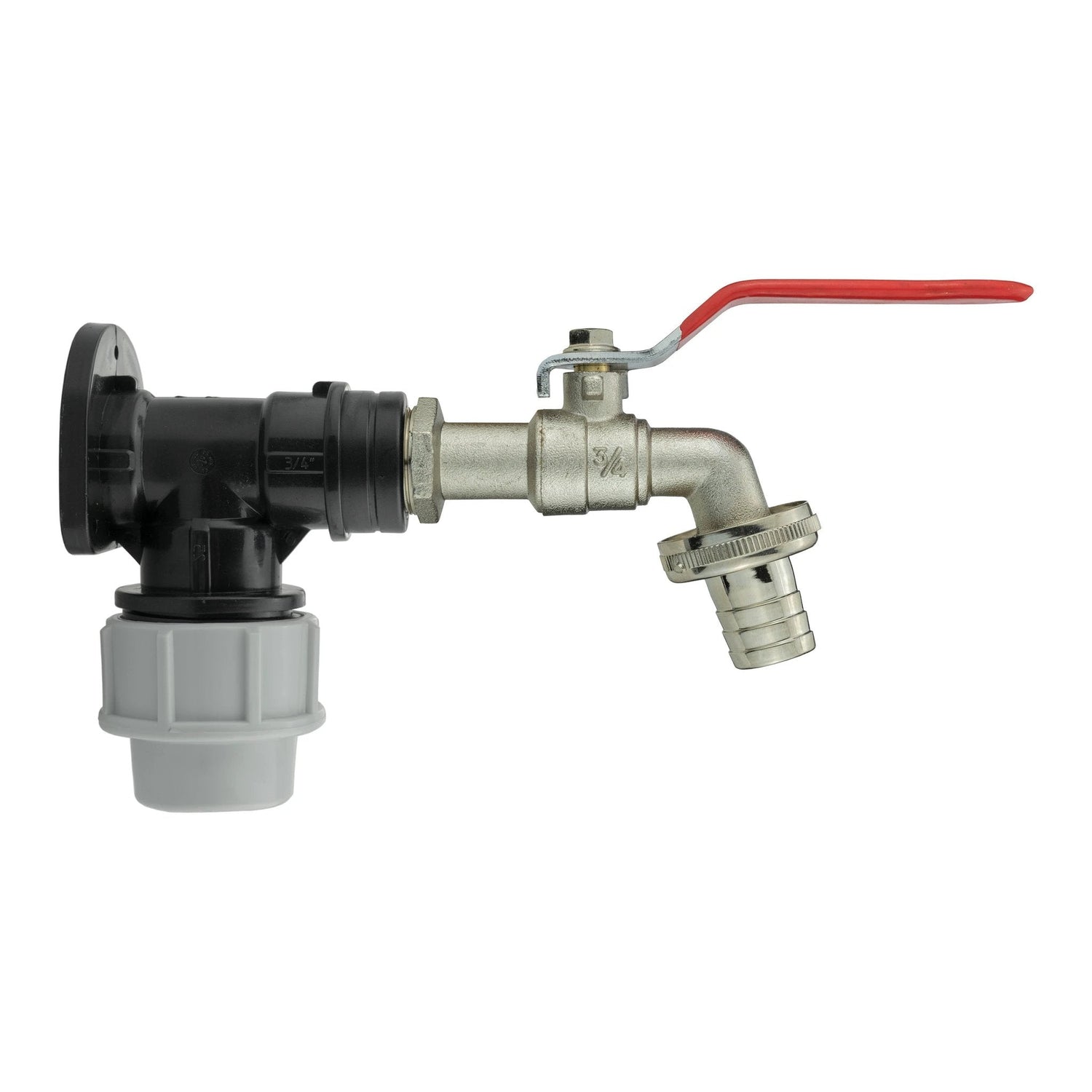

Wall Flange Kit 25mm MDPE + Lever Tap 3/4" Barb is a compact, ready-to-install connection for MDPE water lines, designed for tradespeople laying external or garden piping. The kit combines a 25mm MDPE wall flange with a ¾" BSP female thread and a zinc-nickel plated garden lever tap featuring a ¾" barb outlet, delivering a reliable, user-friendly solution at fixtures and wall penetrations.
  • Kit contents: MDPE wall flange 25mm – ¾" BSPF (MDPEWF25-34BSPF) and Garden Lever Tap with ¾" Barb (GTLEVER-ZINC34B).
  • MDPE advantages: flexible, durable, chemical resistant fittings designed for MDPE pipe connections with compression seals that minimise the need for specialist tools.
  • Pressure rating: MDPE PN10 fittings withstand up to 10 bars (about 145 psi) under designed conditions, supporting typical domestic and light commercial water duties.
  • Wall flange function: secures the pipe to a flat surface, improving stability and reducing movement in outdoor installations.

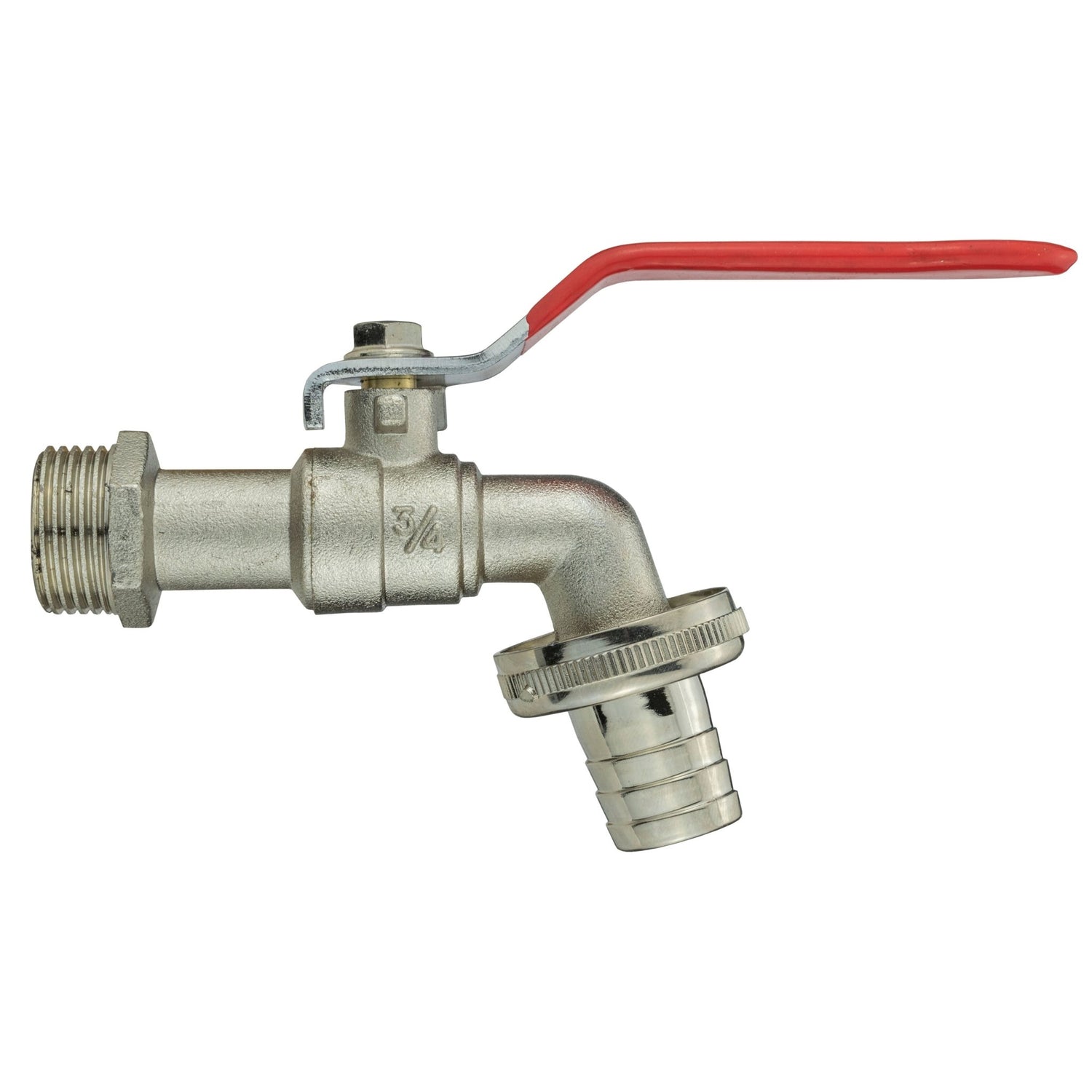

  • Garden tap features: lever operation for straightforward on/off control; ¾" barb outlet accepts standard hoses with a secure push-on fit.
  • Durability: tap body is zinc-nickel plated for corrosion resistance in outdoor environments; the lever mechanism is designed for frequent use.

Why this kit matters for plumbers, landscapers and garden installers who need a reliable, straightforward connection from MDPE to a wall point and a garden tap. The compression-style MDPE connection reduces reliance on specialised tools, while the wall flange provides a neat, secure finish at exterior walls or service voids. The ¾" barb on the tap ensures quick hose attachment with a leak-free seal when pushed fully home.

Practical tips: ensure the MDPE pipe ends are clean and square before assembly; use the compression nut and sleeve as designed to achieve a clean seal; note that PTFE tape is not included and will need to be purchased separately. This kit is intended for water applications at up to 10 bar where provided conditions are met.
