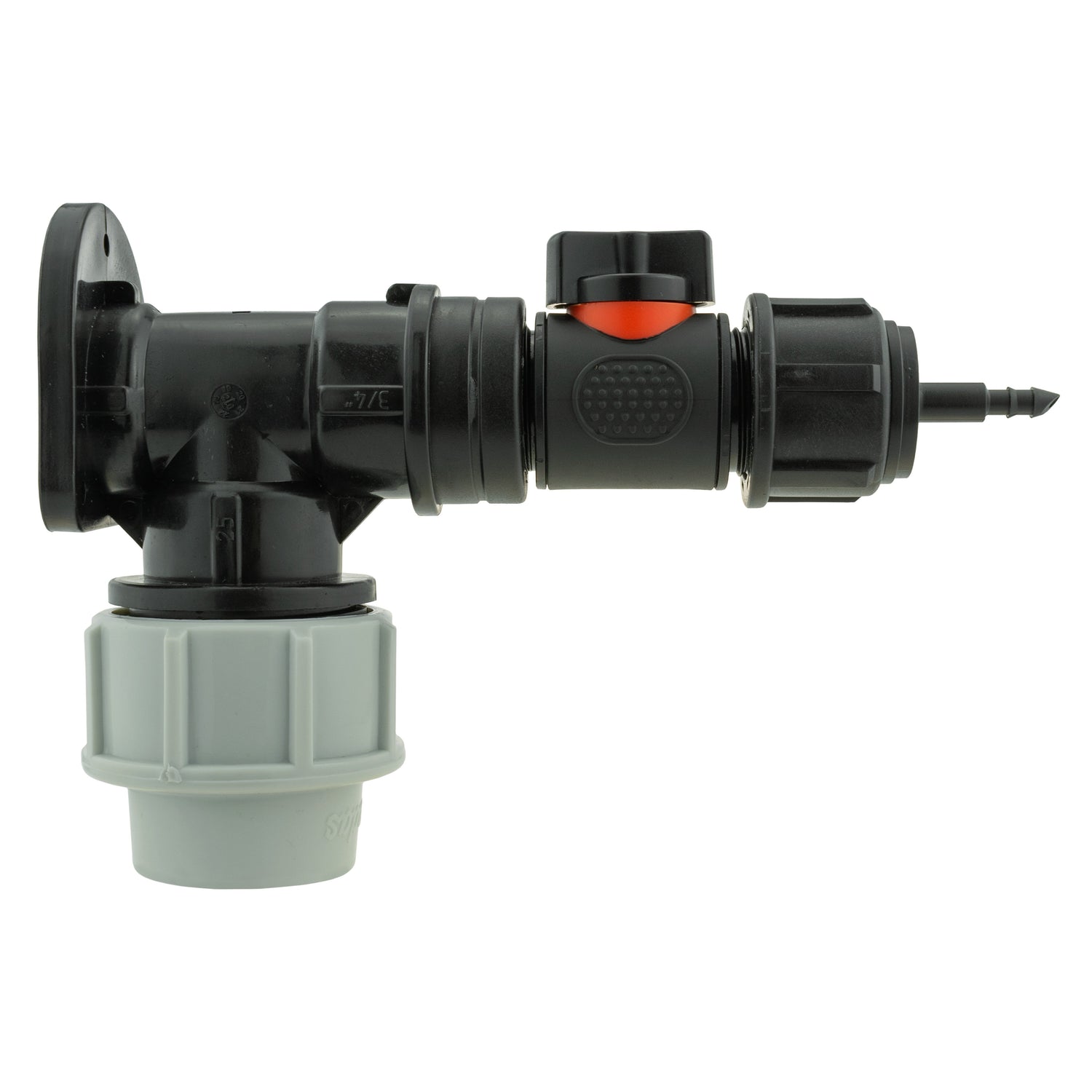

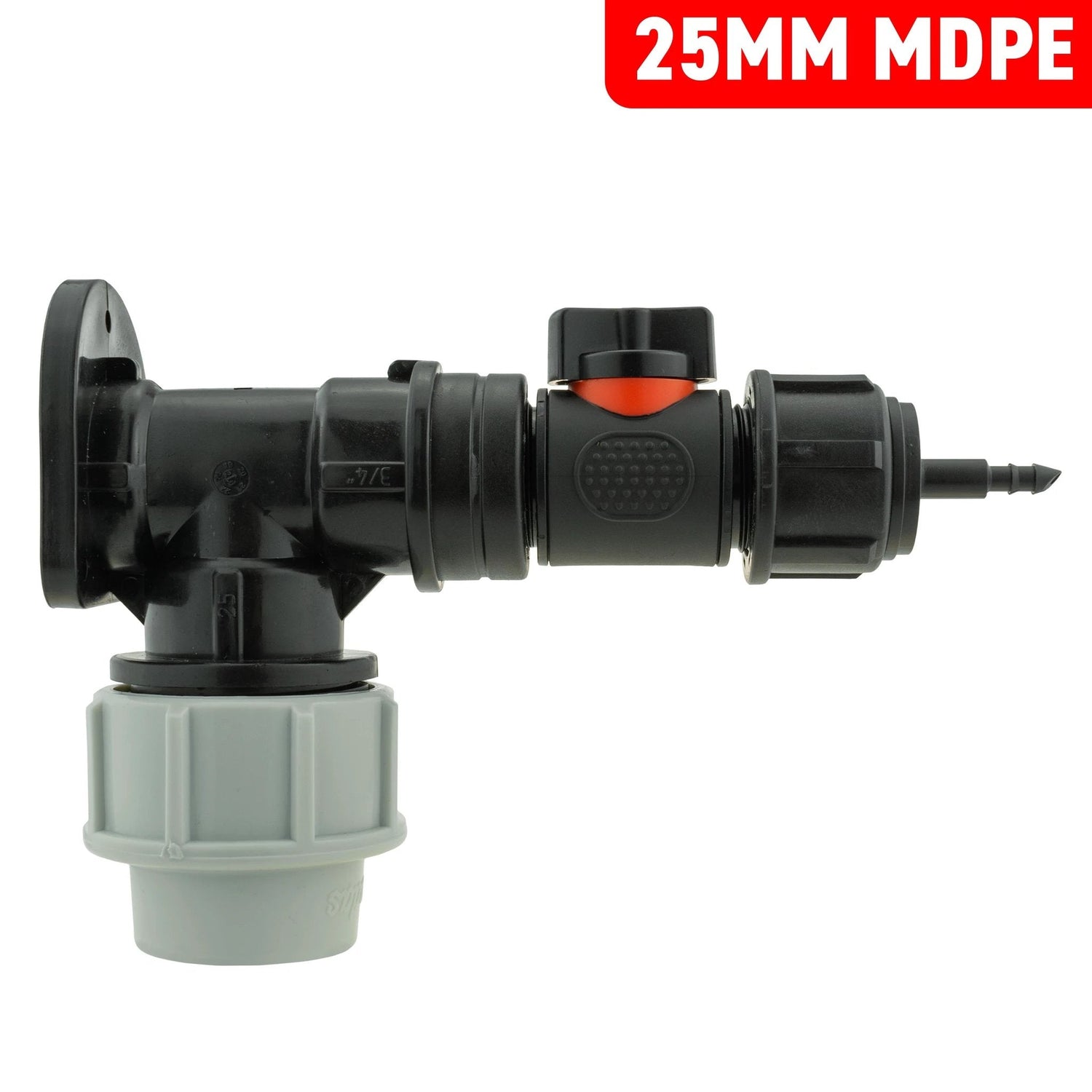

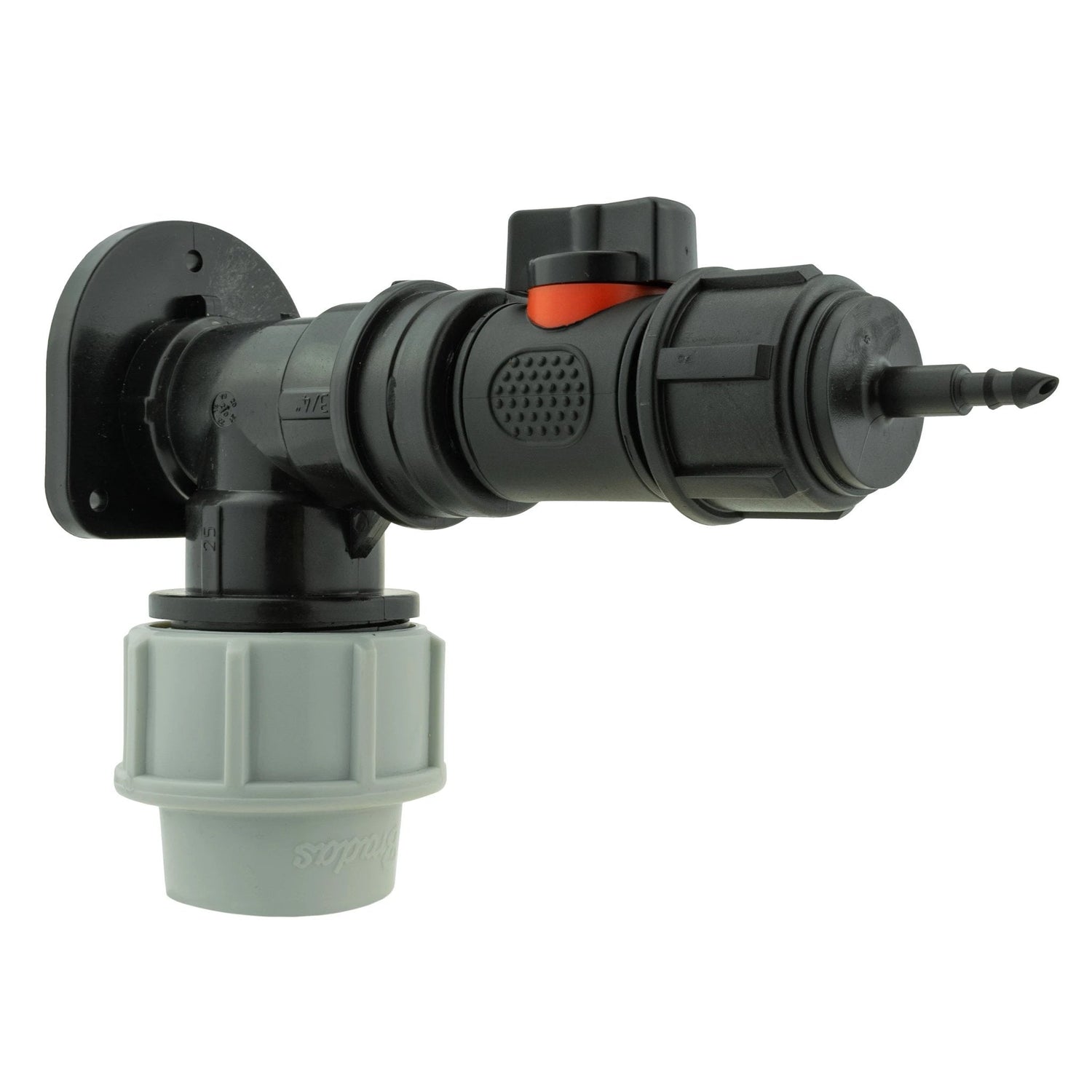

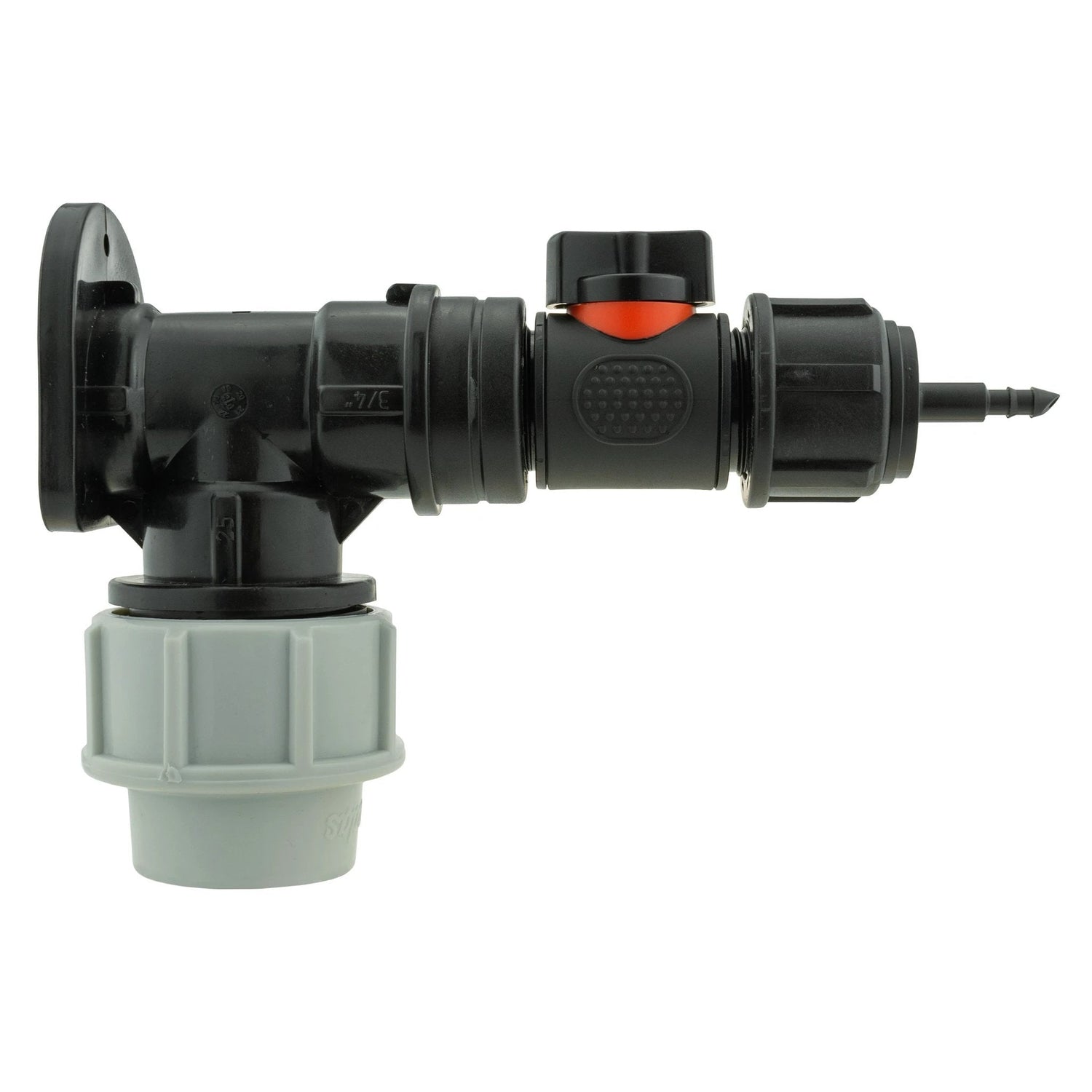

The Wall Flange Kit 25mm MDPE + In-Line Valve + 4mm Micro Barb is a practical, ready‑to‑fit connection set for MDPE piping. Designed for tradespeople installing water supply or irrigation run‑outs, it combines a through‑wall connection, a ¾" BSP in‑line valve and a 4mm micro barb adaptor in one compact kit to speed up installs and reduce on‑site fittings.

Kit contents: 1 x MDPE Wall Flange 25mm – ¾” BSPF, 1 x In‑Line Valve ¾” BSPM, 1 x Tap Connector ¾” BSPF – 4mm Micro Barb. These components are selected to work together seamlessly on MDPE PN10 systems, enabling straightforward assembly without specialist tools.

MDPE fittings are known for durability, flexibility and chemical resistance, making them suitable for water supply and irrigation. The wall flange provides a secure, neat through‑wall connection to a flat surface, while the compression connections offer a reliable, leak‑free seal without soldering or gluing. MDPE PN10 fittings are engineered to withstand up to 10 bars (approximately 145 psi) at standard temperatures, helping maintain system integrity under typical UK conditions.

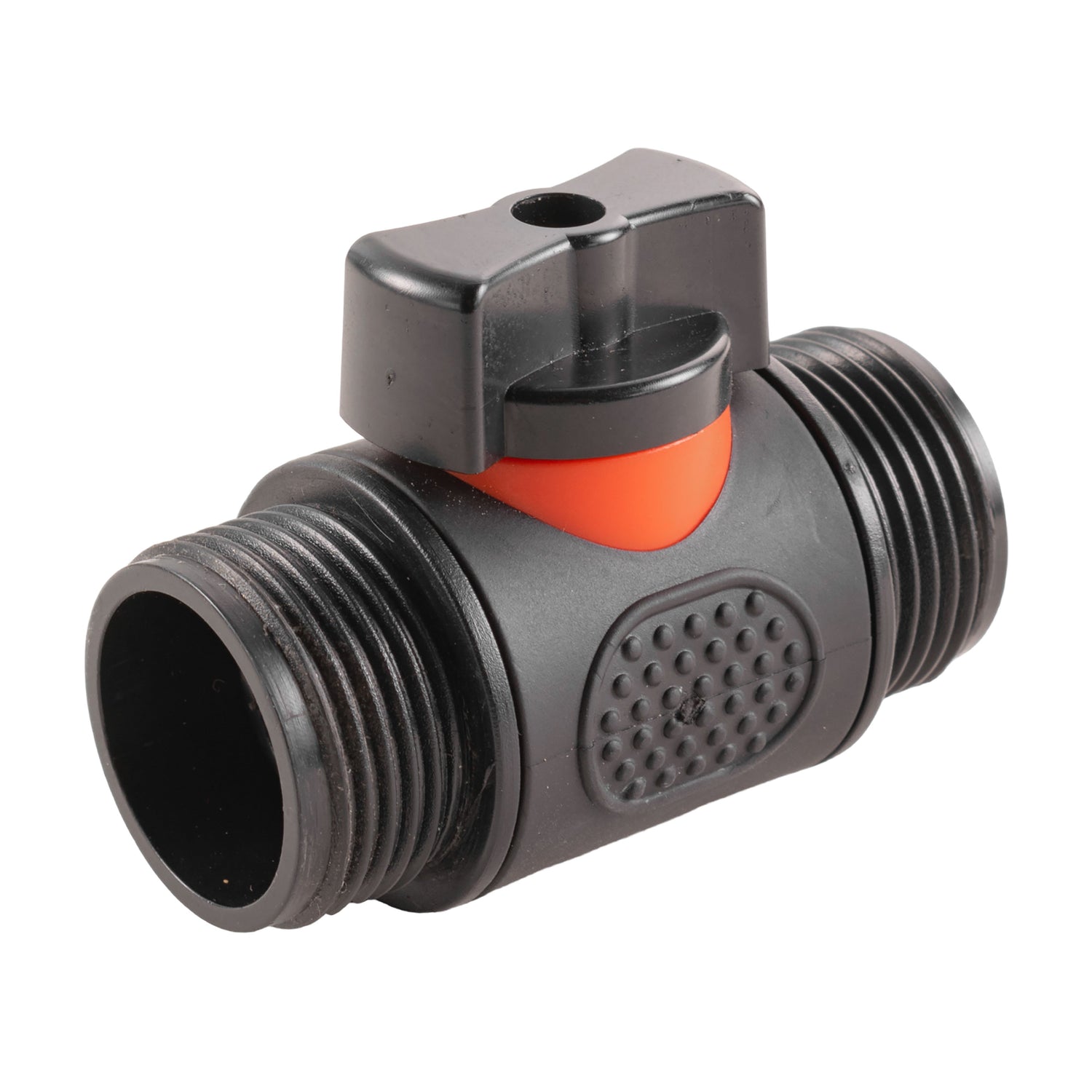

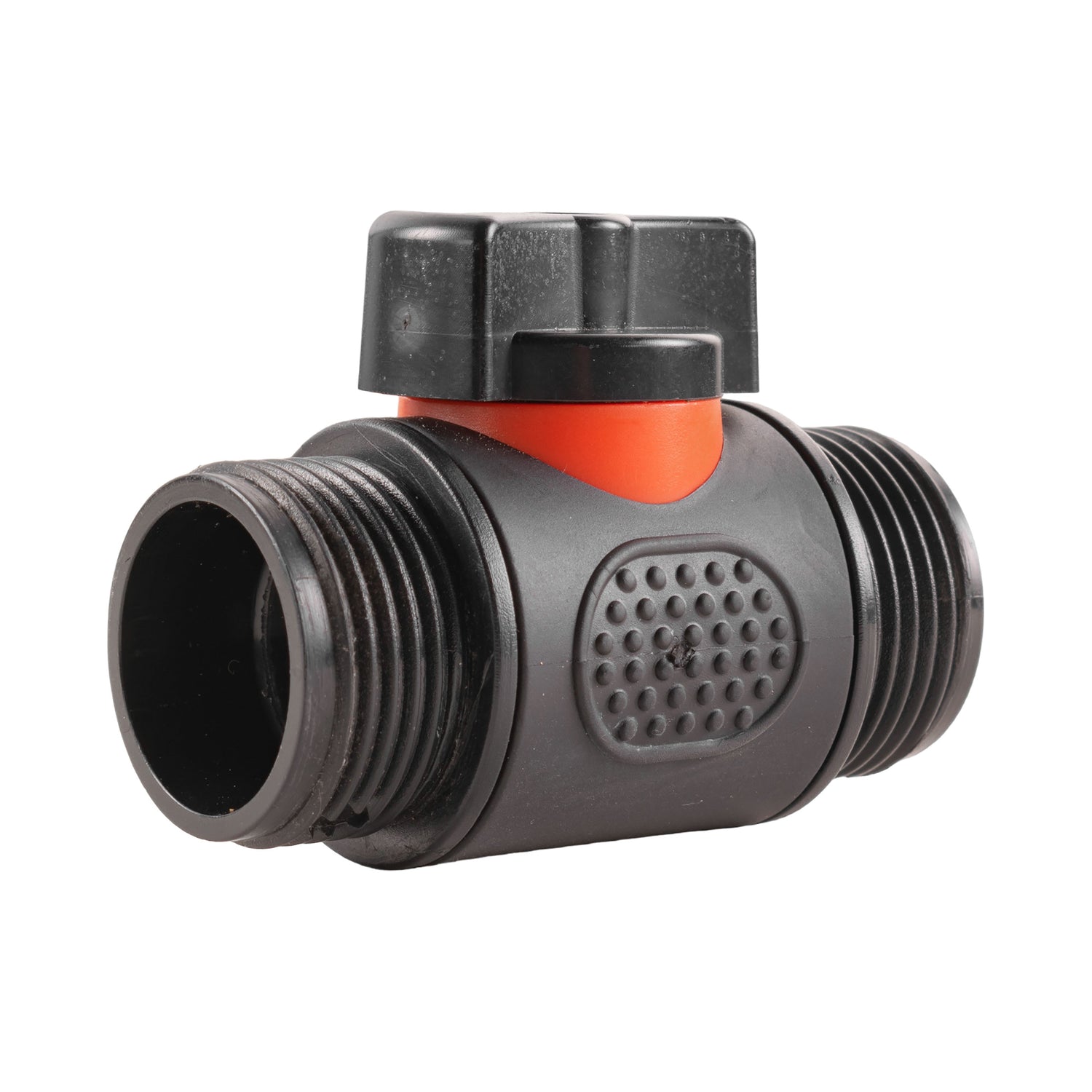

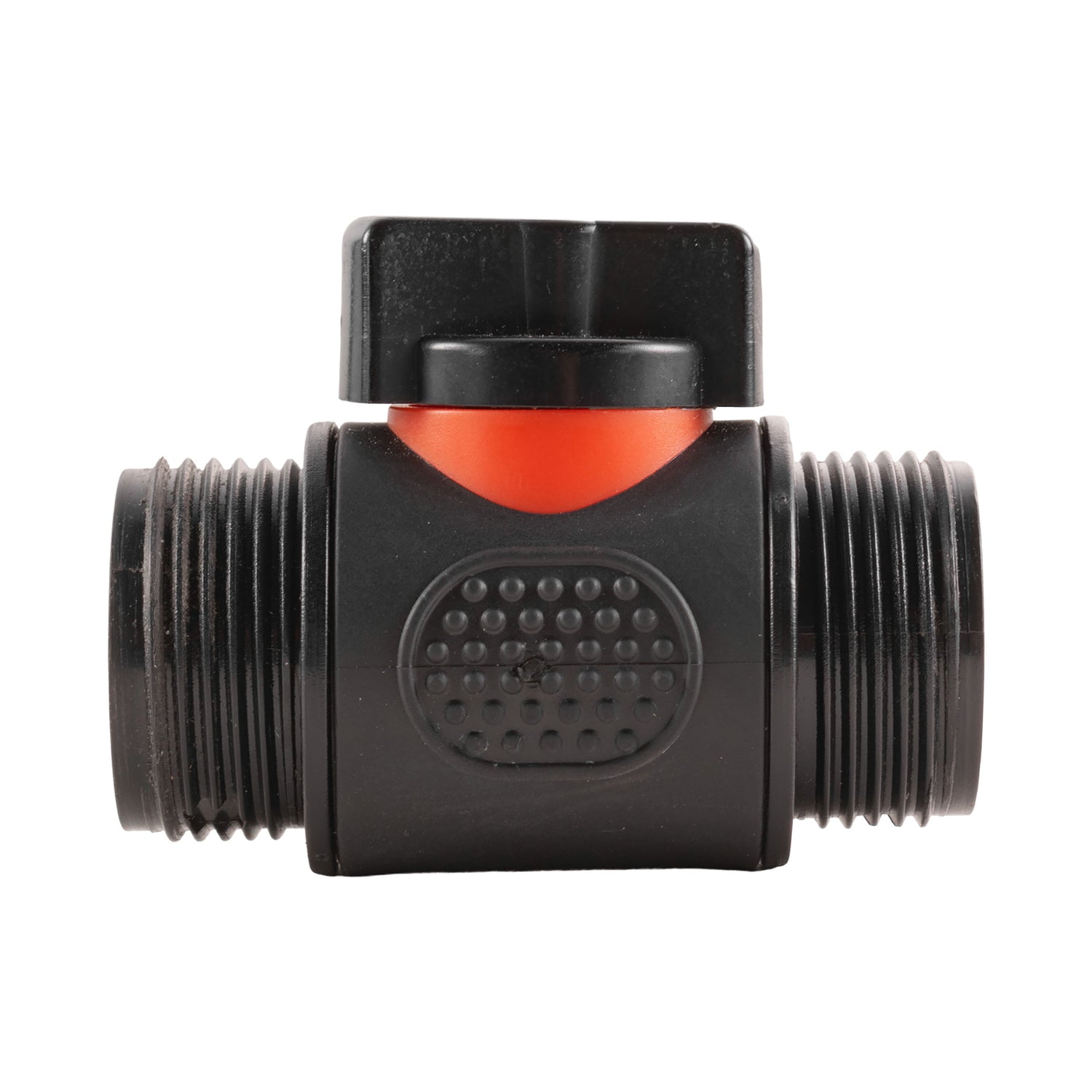

The In‑Line Soft Touch Valve (3/4" BSPM) features a plastic body that keeps the unit light and corrosion‑resistant. Its smooth, soft‑turn mechanism allows for precise flow control and quick shut‑off, which is particularly useful for garden feeds, drip lines and irrigation circuits where frequent adjustment is needed. The valve is designed to minimise leaks when closed, helping to protect against drips and water waste.

The Tap Adaptor 3/4" BSPF to 4mm micro tube provides a clean, secure connection to micro irrigation tubing. This makes it straightforward to route drip lines or mini‑sprinkler feeds from the wall outlet, with a snug barb fit that reduces slit‑outs and leaks over time.

Ideal for external taps, garden irrigation runs and light commercial installations, this kit offers a practical, cost‑effective solution for MDPE layouts up to PN10. It’s designed for easy maintenance and long‑term reliability in typical outdoor environments. For best results, ensure ends are clean and square, tighten compression fittings appropriately, secure the flange to a solid surface and test the system for leaks after commissioning.

Akor
MDPE Pipe Fittings

The Wall Flange Kit 25mm MDPE + In-Line Valve + 4mm Micro Barb is a practical, ready‑to‑fit connection set for MDPE piping. Designed for tradespeople installing water supply or irrigation run‑outs, it combines a through‑wall connection, a ¾" BSP in‑line valve and a 4mm micro barb adaptor in one compact kit to speed up installs and reduce on‑site fittings.

Kit contents: 1 x MDPE Wall Flange 25mm – ¾” BSPF, 1 x In‑Line Valve ¾” BSPM, 1 x Tap Connector ¾” BSPF – 4mm Micro Barb. These components are selected to work together seamlessly on MDPE PN10 systems, enabling straightforward assembly without specialist tools.

MDPE fittings are known for durability, flexibility and chemical resistance, making them suitable for water supply and irrigation. The wall flange provides a secure, neat through‑wall connection to a flat surface, while the compression connections offer a reliable, leak‑free seal without soldering or gluing. MDPE PN10 fittings are engineered to withstand up to 10 bars (approximately 145 psi) at standard temperatures, helping maintain system integrity under typical UK conditions.

The In‑Line Soft Touch Valve (3/4" BSPM) features a plastic body that keeps the unit light and corrosion‑resistant. Its smooth, soft‑turn mechanism allows for precise flow control and quick shut‑off, which is particularly useful for garden feeds, drip lines and irrigation circuits where frequent adjustment is needed. The valve is designed to minimise leaks when closed, helping to protect against drips and water waste.

The Tap Adaptor 3/4" BSPF to 4mm micro tube provides a clean, secure connection to micro irrigation tubing. This makes it straightforward to route drip lines or mini‑sprinkler feeds from the wall outlet, with a snug barb fit that reduces slit‑outs and leaks over time.

Ideal for external taps, garden irrigation runs and light commercial installations, this kit offers a practical, cost‑effective solution for MDPE layouts up to PN10. It’s designed for easy maintenance and long‑term reliability in typical outdoor environments. For best results, ensure ends are clean and square, tighten compression fittings appropriately, secure the flange to a solid surface and test the system for leaks after commissioning.

Akor
MDPE Pipe Fittings
