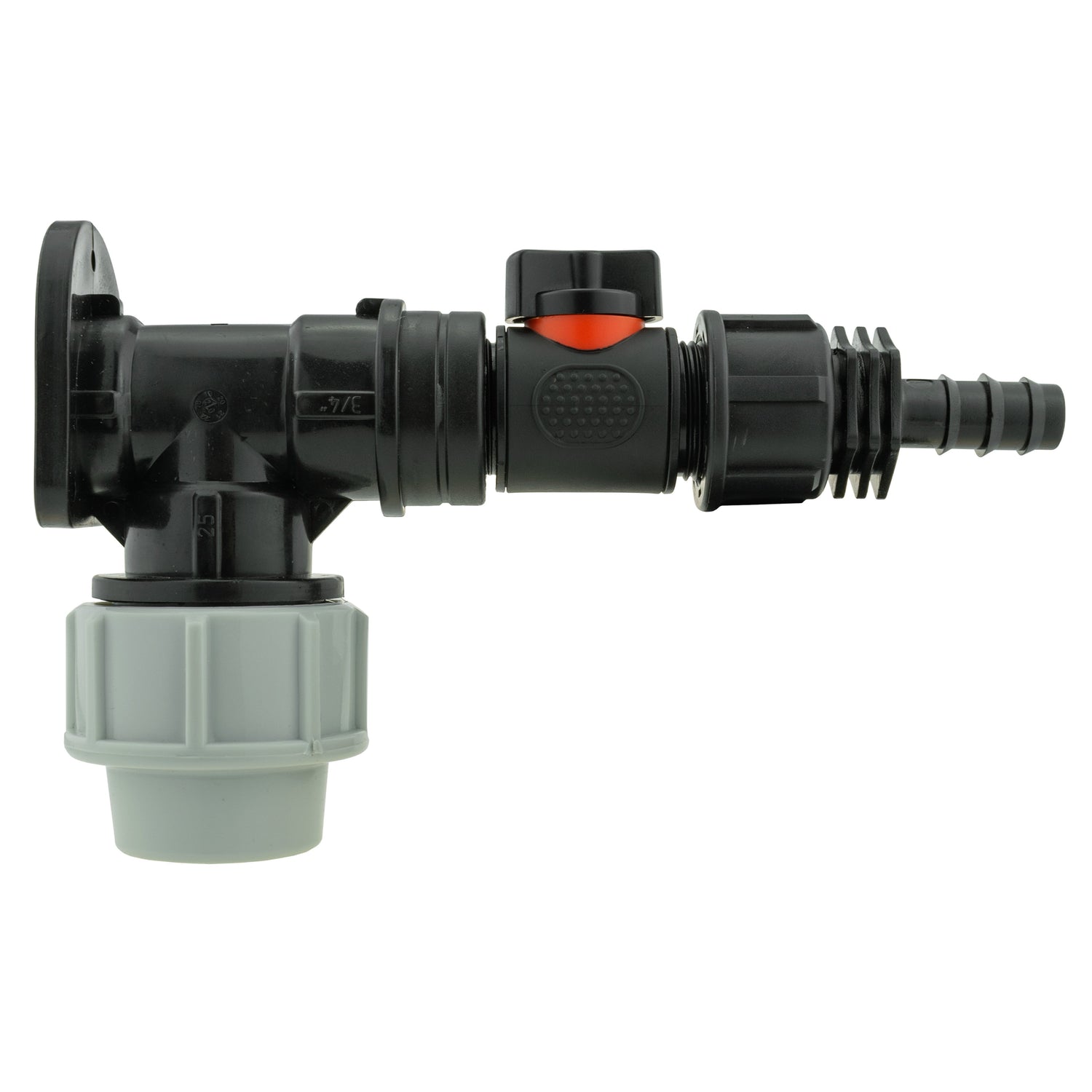

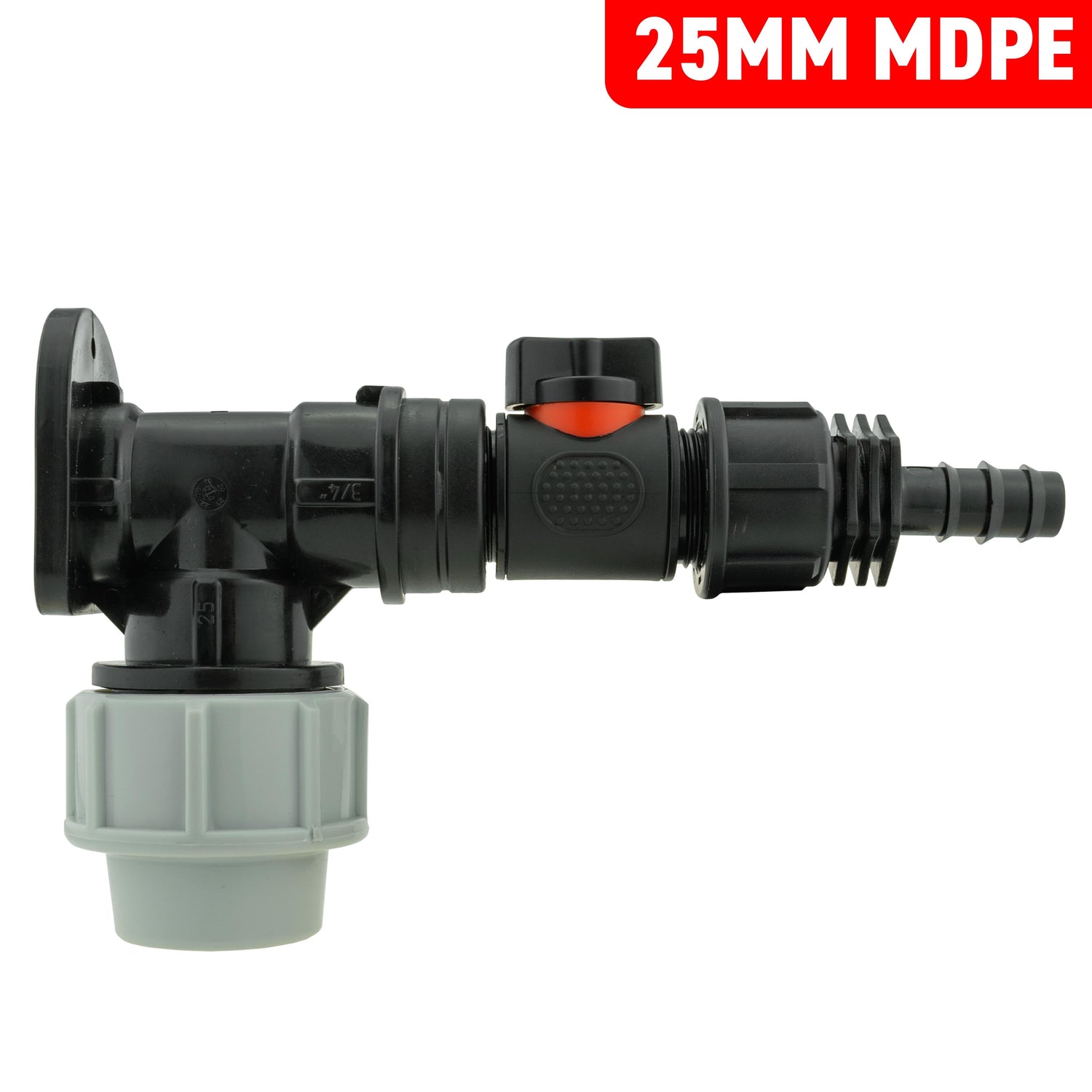

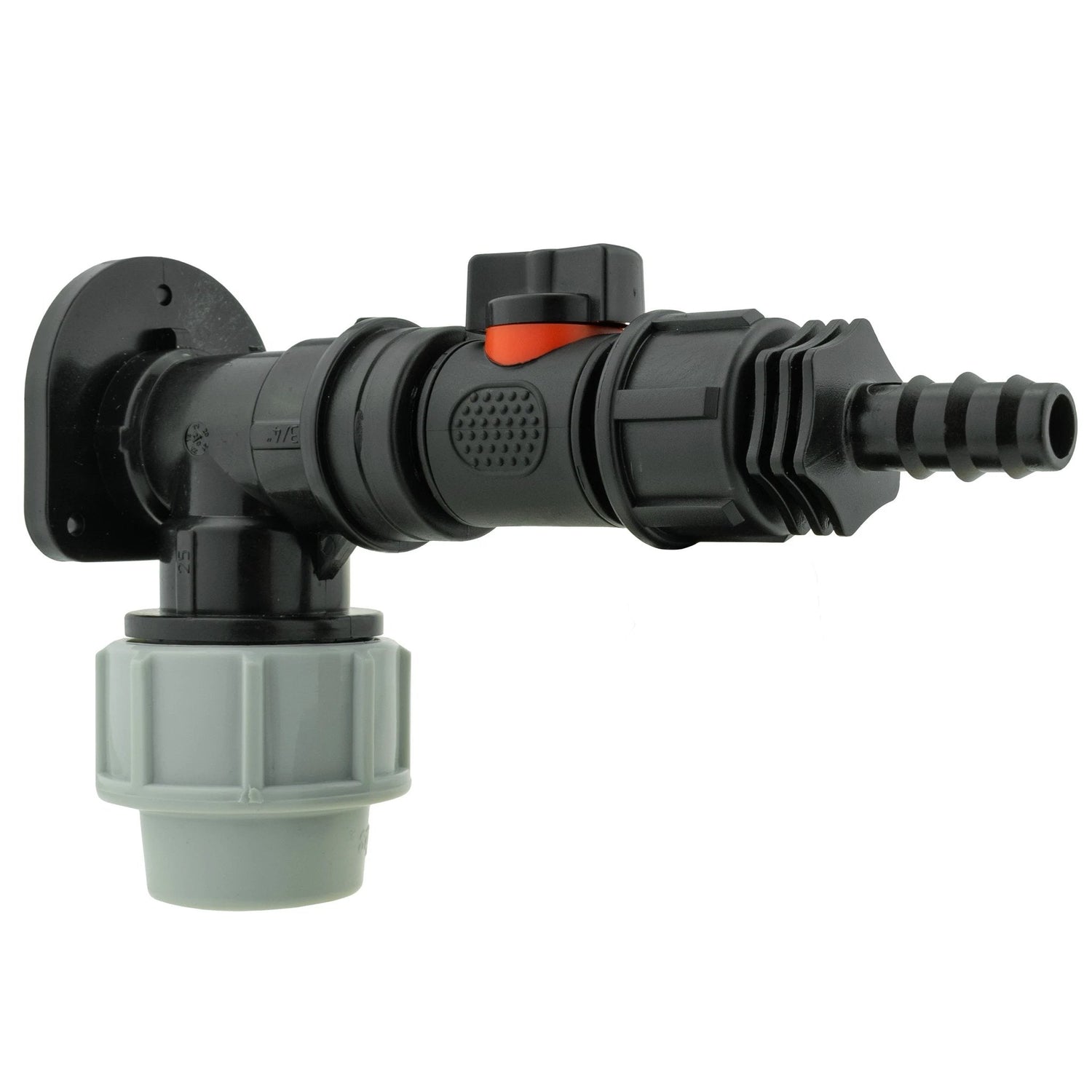

< p>Wall Flange Kit 25mm MDPE + In-Line Valve + 1/2" Barb is a ready-made connection solution for MDPE piping, aimed at installers tackling water supply and irrigation runs. It brings a wall entry, a reliable flow control valve, and a 3/4" BSP joiner with a 1/2" barb, designed for straightforward, leak‑tight assembly.
  • MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF)
  • In-Line Valve ¾” BSP (HCV34BSPM001BLACK)
  • Joiner Fitting ¾” BSP – ½” Barb (STR16B34BSPF)

MDPE fittings are chosen for durability, flexibility and chemical resistance, making them common in water supply and irrigation. The MDPE PN10 rating indicates a maximum working pressure of 10 bar (about 145 psi), which supports reliable performance in typical domestic and light commercial systems. The compression-style connections provide a tight seal without the need for specialist tooling, helping tradespeople complete installs quickly and with fewer leak points. The wall flange element allows a pipe to terminate neatly on a flat surface, improving installation neatness and system robustness.

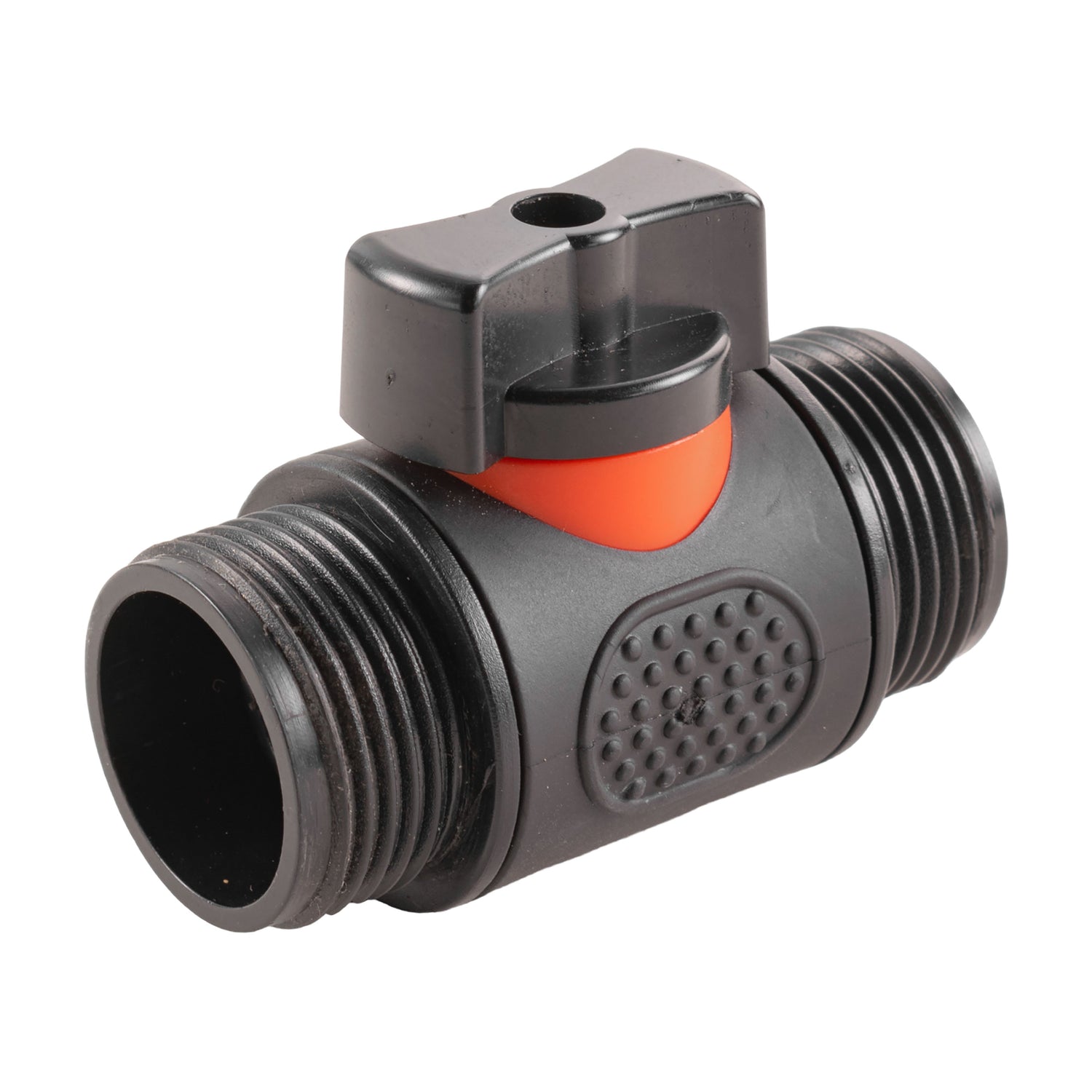

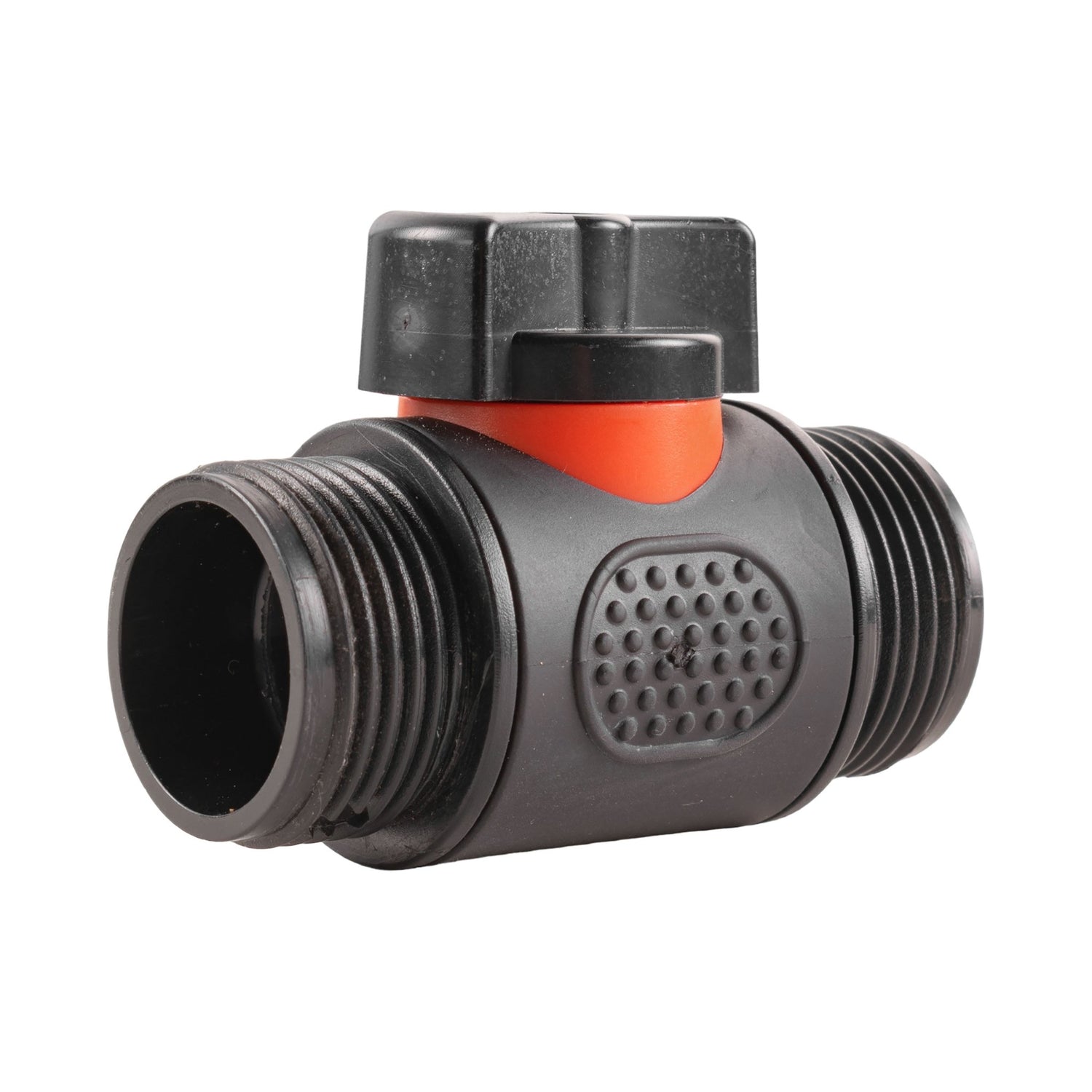

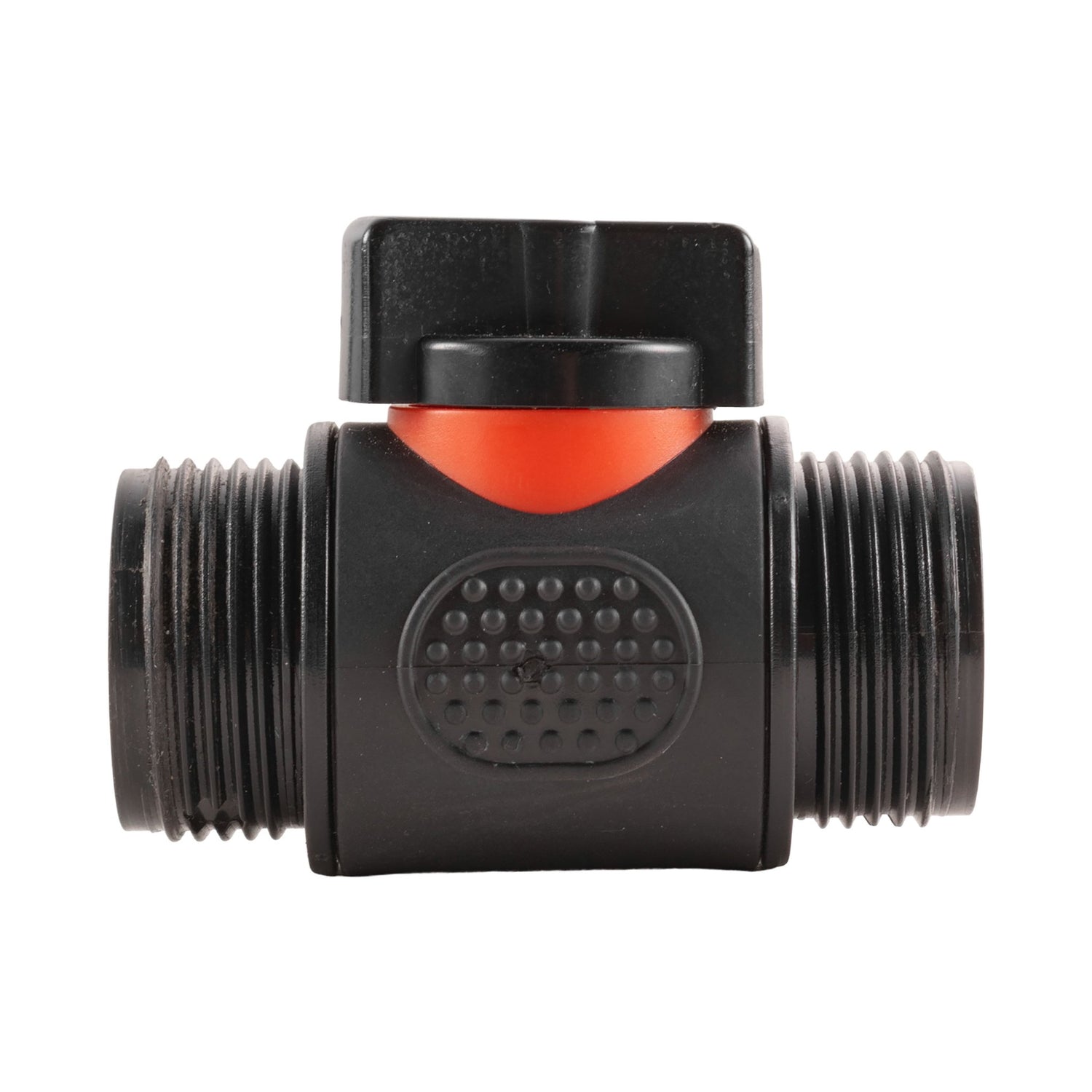

The In-Line Soft Touch Valve is a robust, plastic-bodied component designed for straightforward control of water flow. With a ¾” BSP male inlet and outlet, it fits directly into ¾” BSP pipelines and accessories. The soft-turn mechanism enables smooth operation and precise flow regulation, which is particularly beneficial when balancing irrigation lines or domestic supply runs. The plastic construction offers good resistance to corrosion and ease of handling on site, while reducing overall weight compared with metal equivalents. The valve is designed to minimise leaks when closed, helping to preserve system pressure and prevent unwanted drain-back.

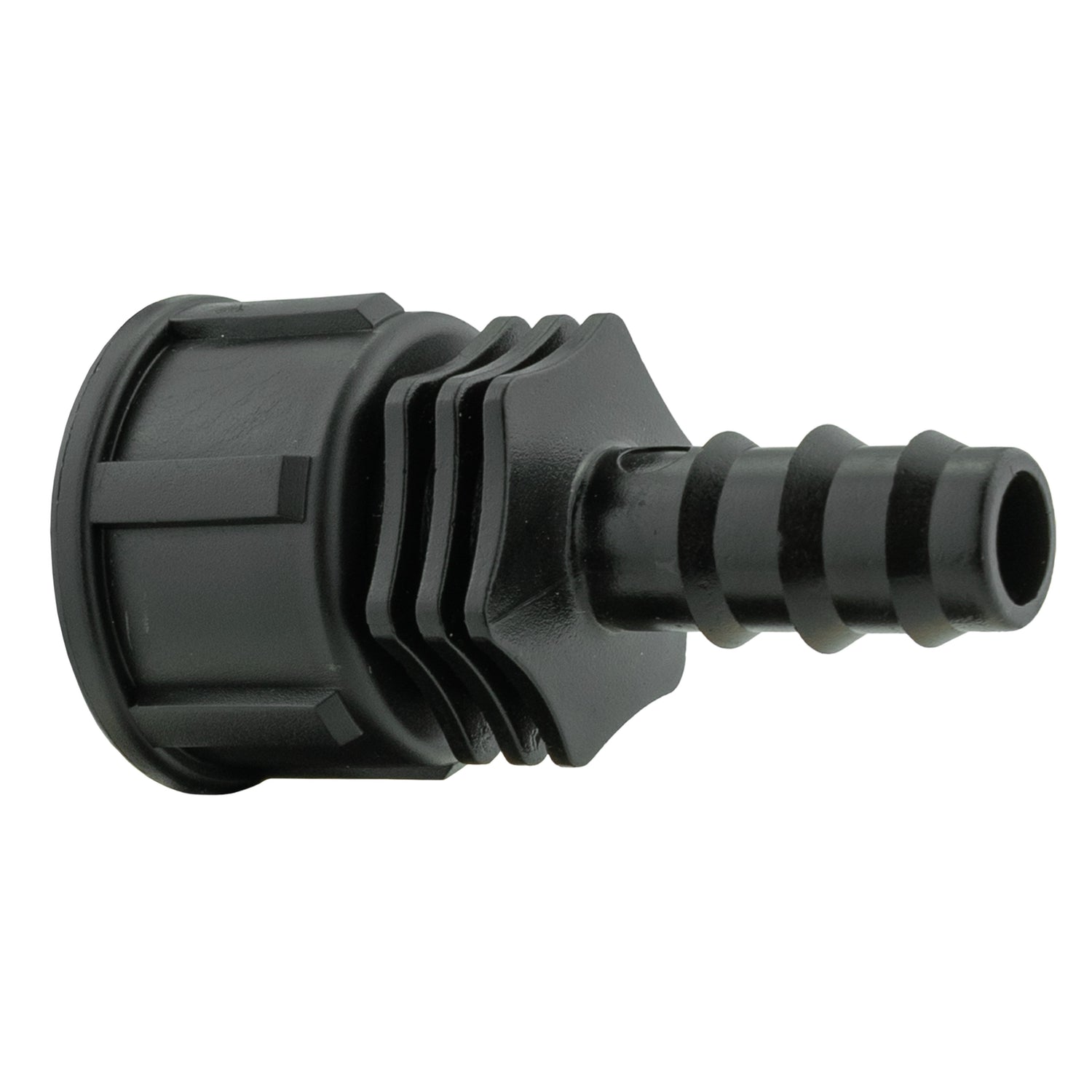

The Joiner Fitting converts ¾” BSP threads to a ½” barb, enabling connection to ½” irrigation tubing where another segment of MDPE or flexible hose is required. This versatility supports simple expansion or tailoring of layouts without reconfiguring the primary line.

Ideal for tradespeople, landscapers and installers working on garden water supplies, irrigation mains, or light industrial water systems. Use this kit where a secure wall entry, reliable shut‑off, and a flexible follow‑on connection are needed, with straightforward on-site assembly and maintenance in mind. Ensure all components are tightened to the recommended torque and test the completed run at operating pressures up to 10 bar to confirm a leak‑free seal.
