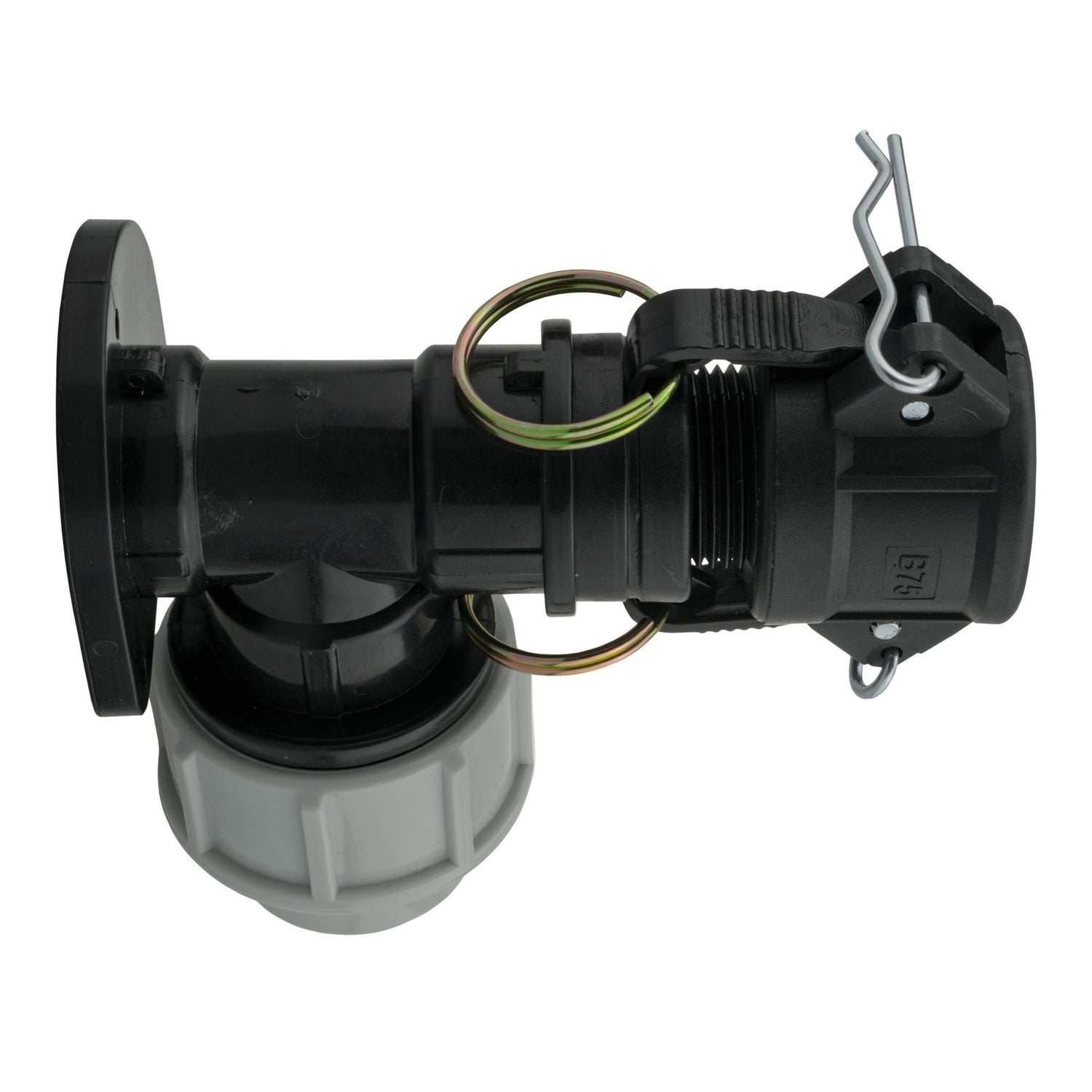

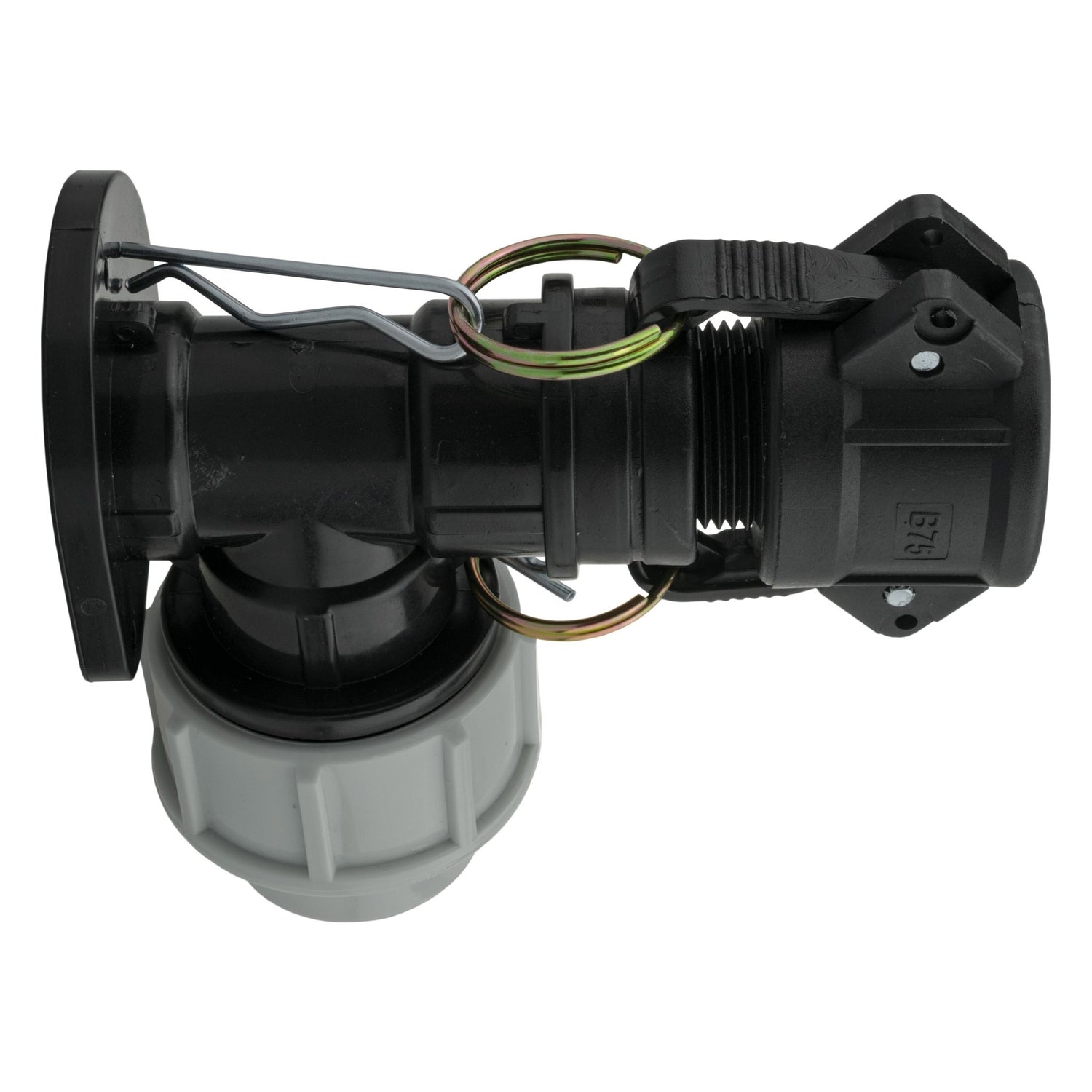

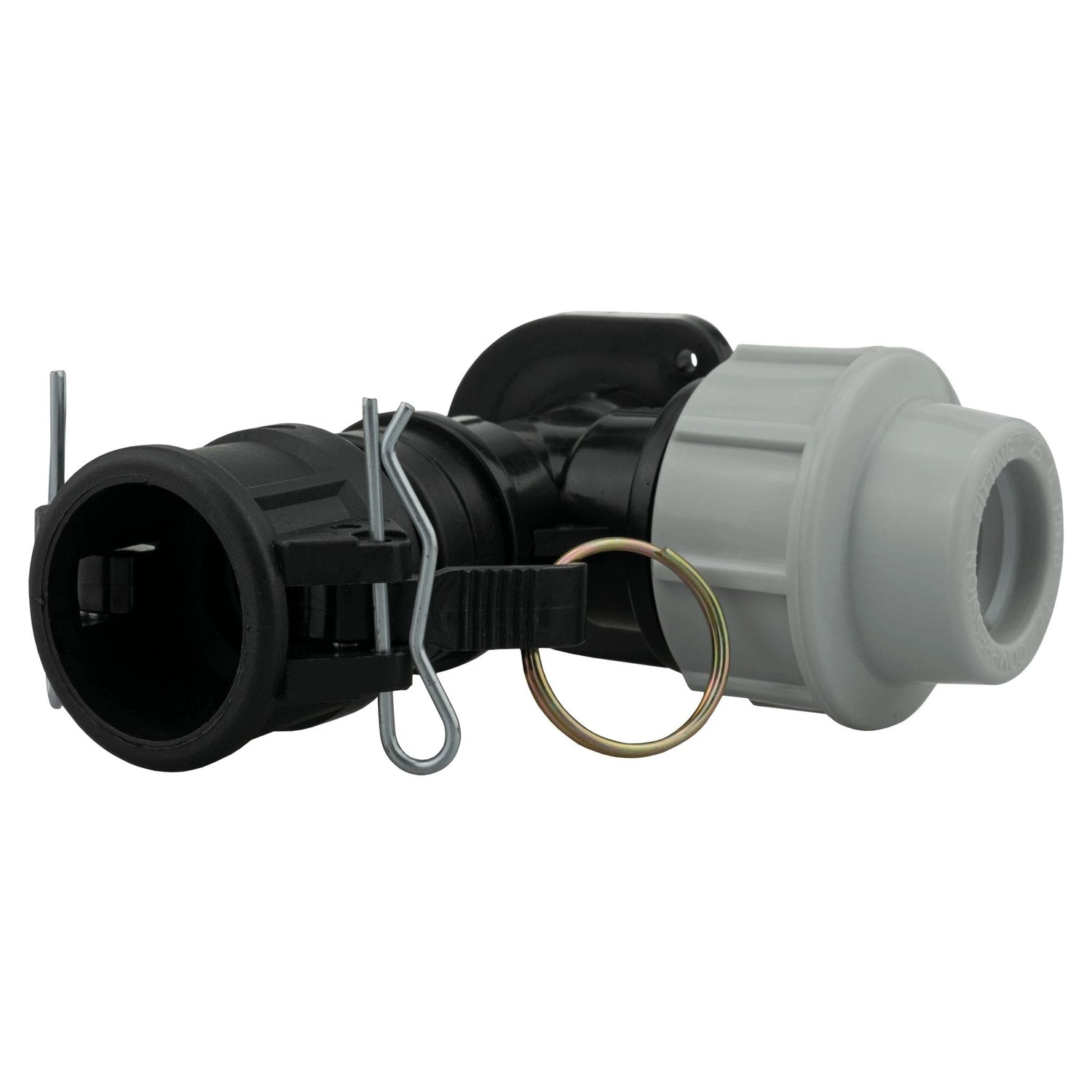

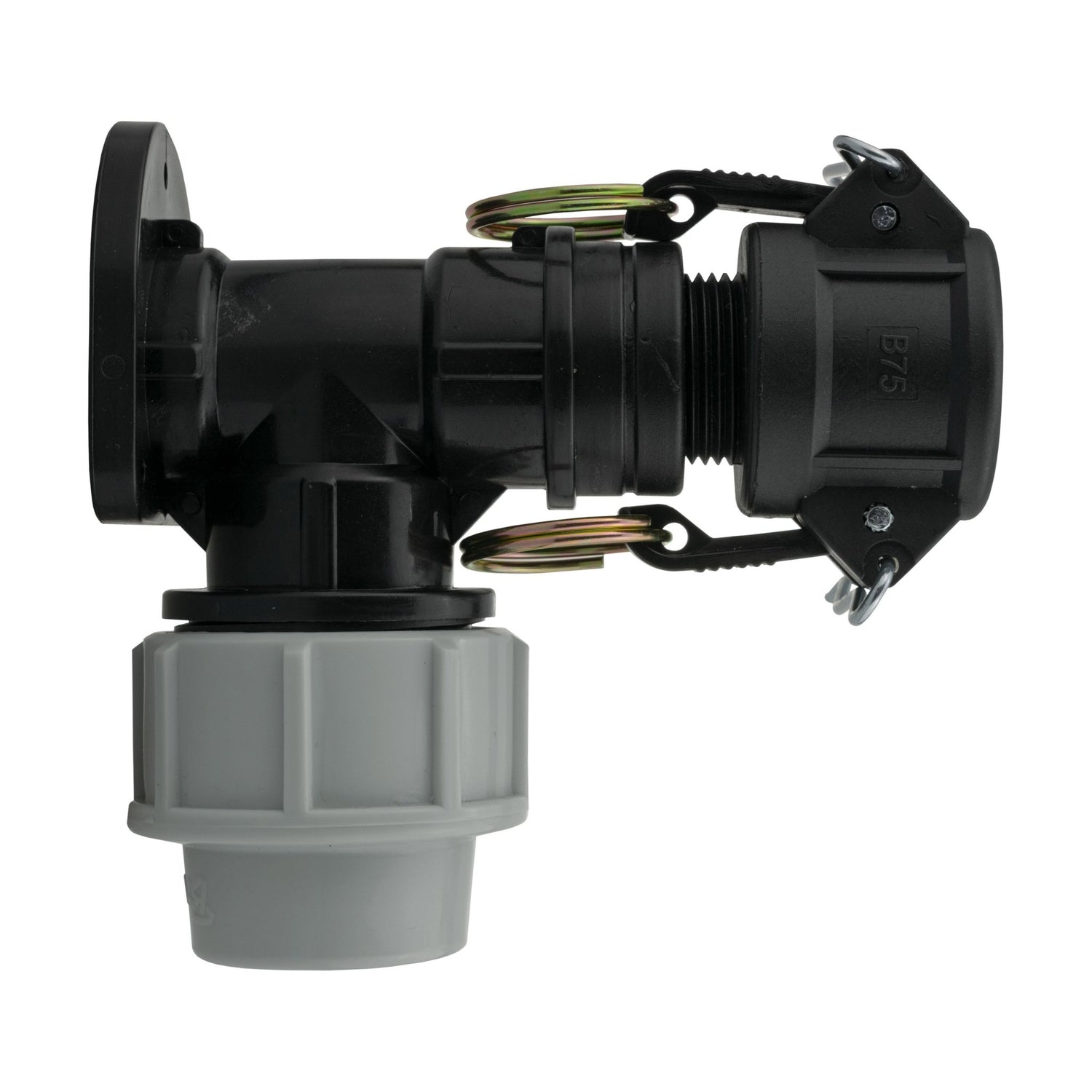

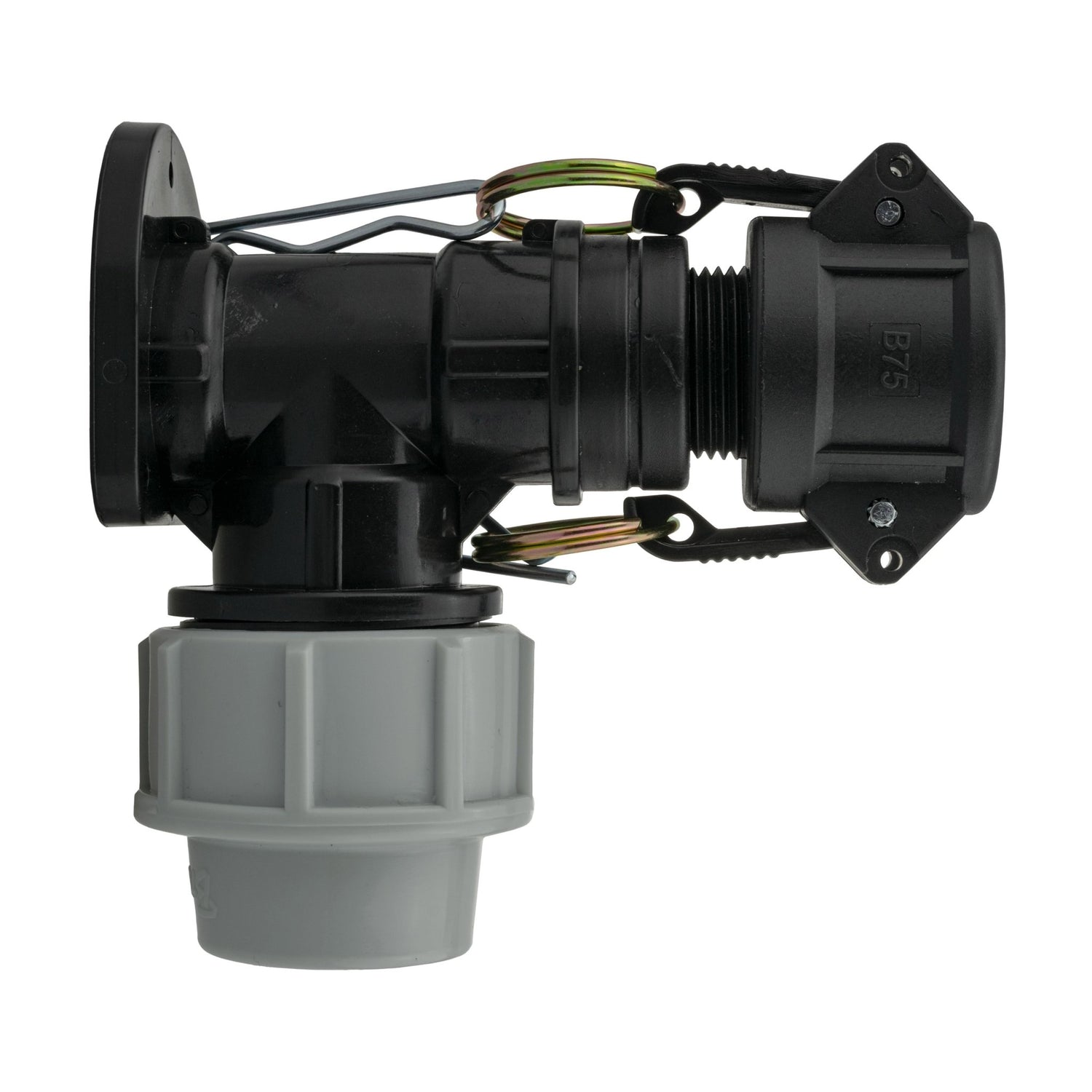

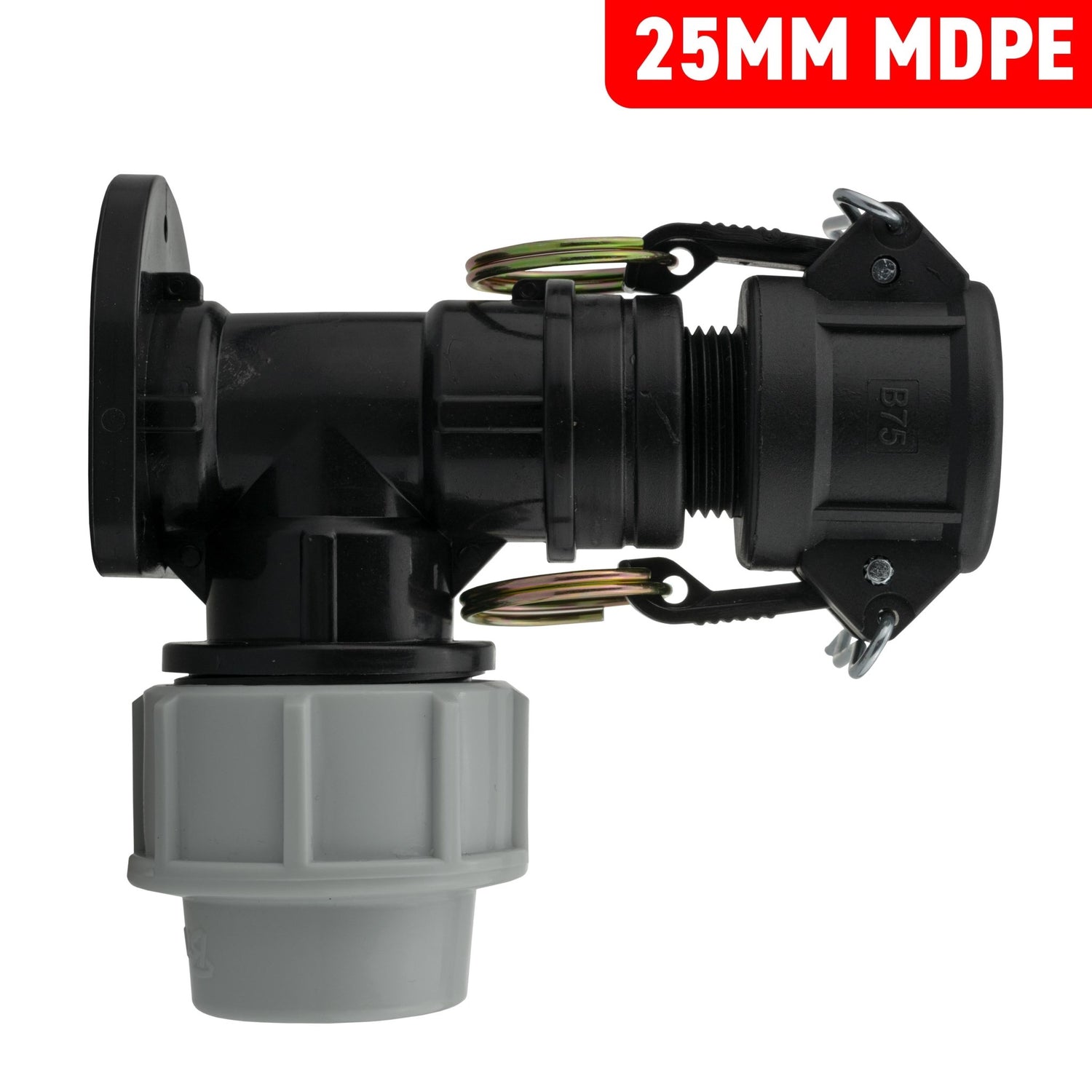

Wall Flange Kit 25mm MDPE + 3/4" Camlock Type B combines a 25mm MDPE wall flange with a ¾" Camlock, giving tradespeople a compact, ready-to-fit connection for MDPE piping. It’s designed for water supply, irrigation, and light industrial runs where a surface-mounted entry and quick-connect coupling are desirable.

  • Included in the kit: 1 x MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF) and 1 x Camlock Type B ¾” (CAMTB34BSPM).
  • MDPE characteristics: MDPE fittings are used to connect MDPE pipes and are chosen for durability, flexibility and chemical resistance. The wall flange uses compression connections to help seal without specialised tooling.
  • Pressure rating: MDPE PN10 fittings are rated to a maximum pressure of 10 bar (approximately 145 psi), supporting typical domestic and light industrial applications.

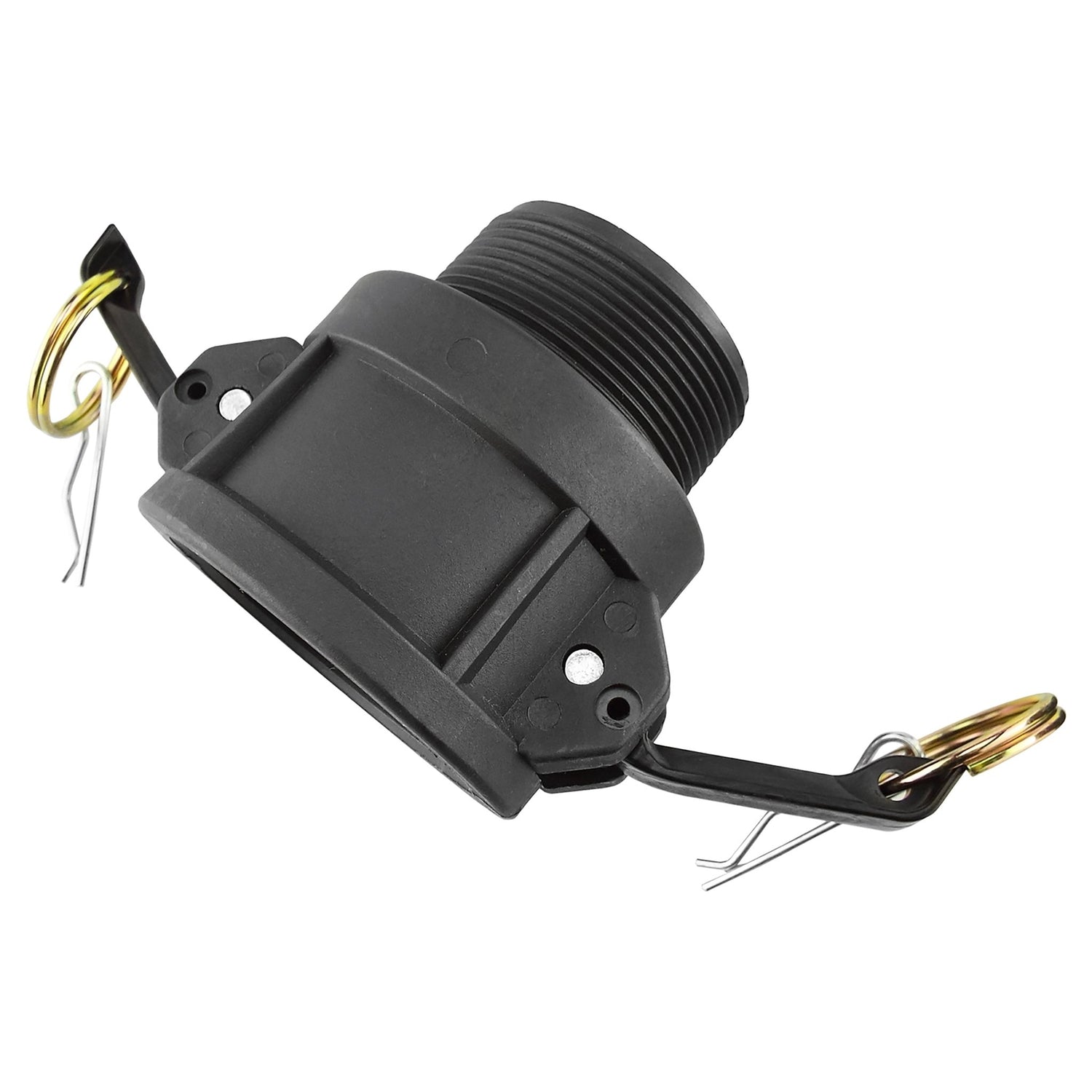

  • Camlock details: Type B camlocks have a female coupler end with a ¾" male BSP thread of the same size; they enable fast, secure connections and disconnections in fluid transfer lines. The camlock components in this kit are manufactured from polypropylene; ensure this material is suitable for the intended fluid and temperature.
  • Installation note: This kit is not supplied with PTFE tape; PTFE tape must be purchased separately if sealing at the BSP threads is required.

Use cases and practical tips: ideal for outdoor tap-offs, irrigation mains, temporary process lines or pump-fed systems where a wall entry plus quick-connect coupling saves time. Inspect thread compatibility with fittings in use and verify service conditions (pressure, temperature, chemical exposure) before installation. For any non-standard fluids or higher-temperature applications, confirm material compatibility of the polypropylene camlock and MDPE components.

Akor
MDPE Pipe Fittings

Wall Flange Kit 25mm MDPE + 3/4" Camlock Type B combines a 25mm MDPE wall flange with a ¾" Camlock, giving tradespeople a compact, ready-to-fit connection for MDPE piping. It’s designed for water supply, irrigation, and light industrial runs where a surface-mounted entry and quick-connect coupling are desirable.

  • Included in the kit: 1 x MDPE Wall Flange 25mm – ¾” BSP (MDPEWF25-34BSPF) and 1 x Camlock Type B ¾” (CAMTB34BSPM).
  • MDPE characteristics: MDPE fittings are used to connect MDPE pipes and are chosen for durability, flexibility and chemical resistance. The wall flange uses compression connections to help seal without specialised tooling.
  • Pressure rating: MDPE PN10 fittings are rated to a maximum pressure of 10 bar (approximately 145 psi), supporting typical domestic and light industrial applications.
  • Camlock details: Type B camlocks have a female coupler end with a ¾" male BSP thread of the same size; they enable fast, secure connections and disconnections in fluid transfer lines. The camlock components in this kit are manufactured from polypropylene; ensure this material is suitable for the intended fluid and temperature.
  • Installation note: This kit is not supplied with PTFE tape; PTFE tape must be purchased separately if sealing at the BSP threads is required.

Use cases and practical tips: ideal for outdoor tap-offs, irrigation mains, temporary process lines or pump-fed systems where a wall entry plus quick-connect coupling saves time. Inspect thread compatibility with fittings in use and verify service conditions (pressure, temperature, chemical exposure) before installation. For any non-standard fluids or higher-temperature applications, confirm material compatibility of the polypropylene camlock and MDPE components.
