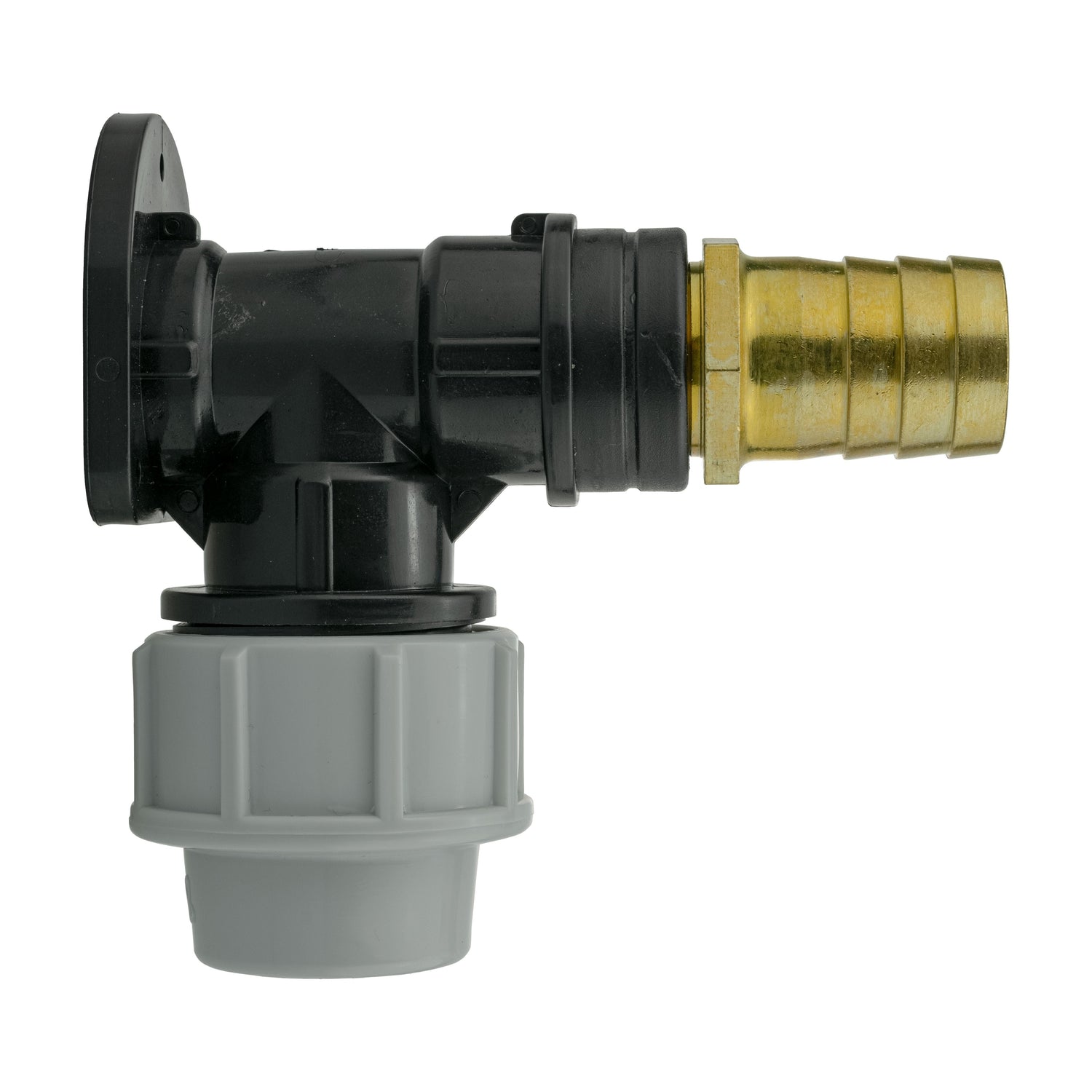

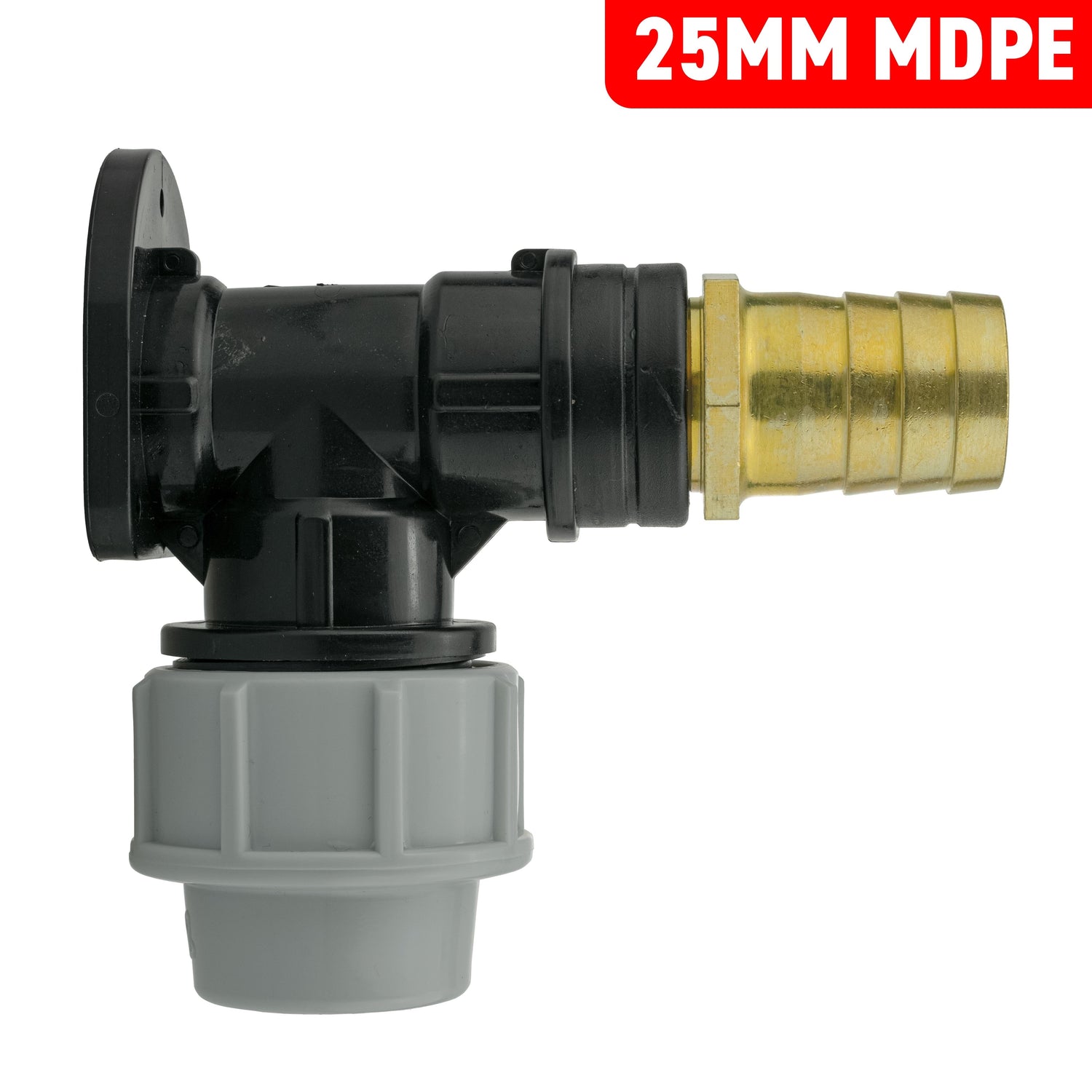

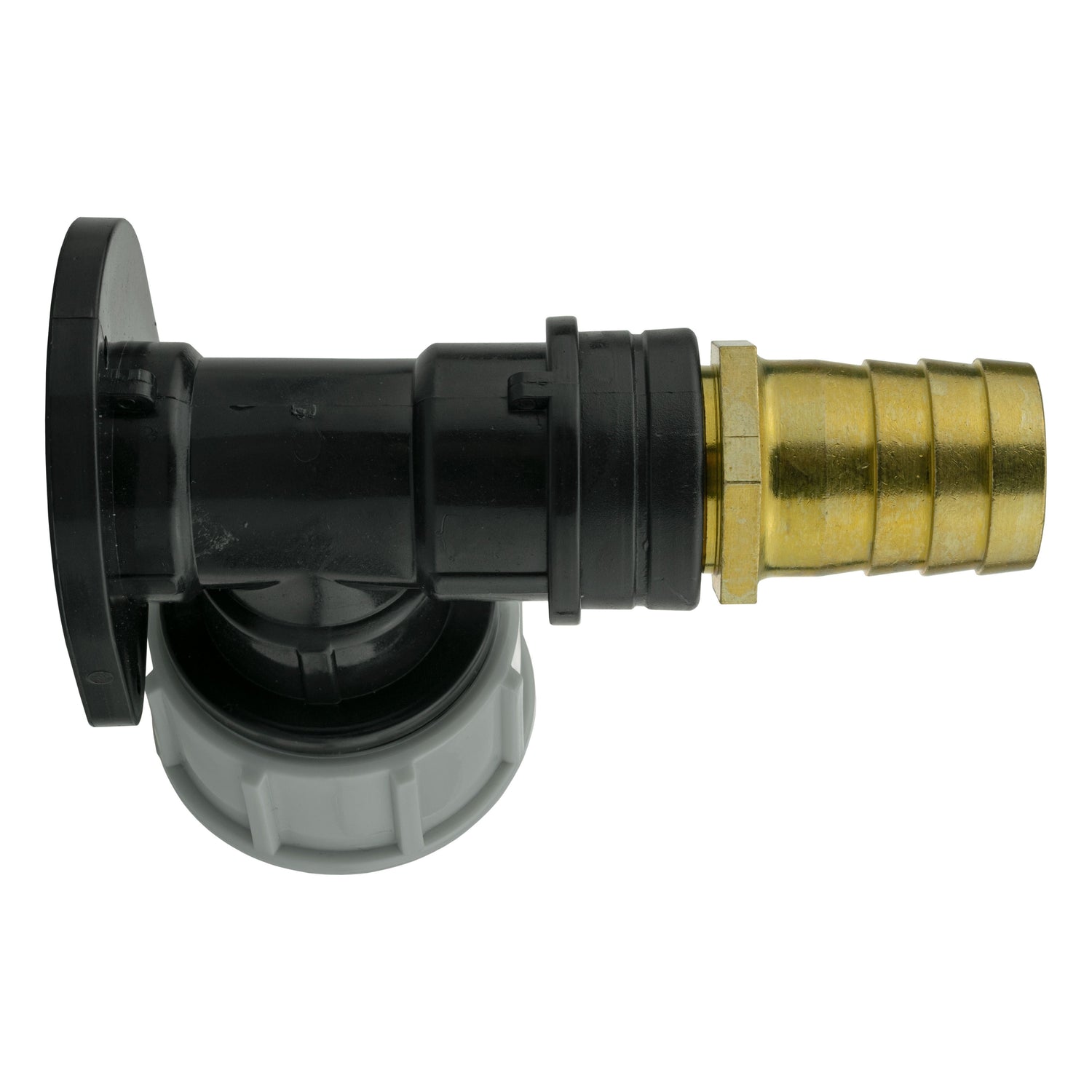

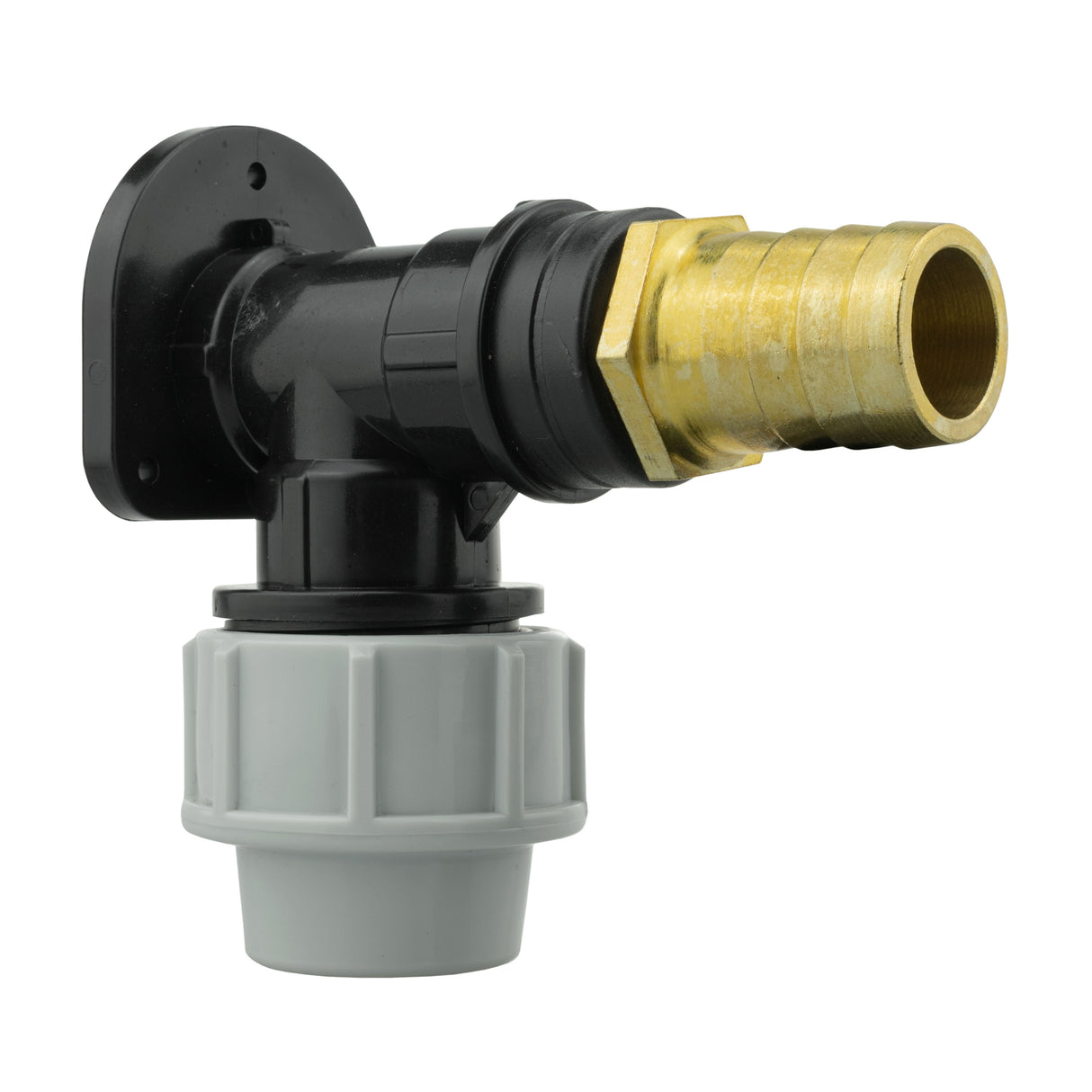

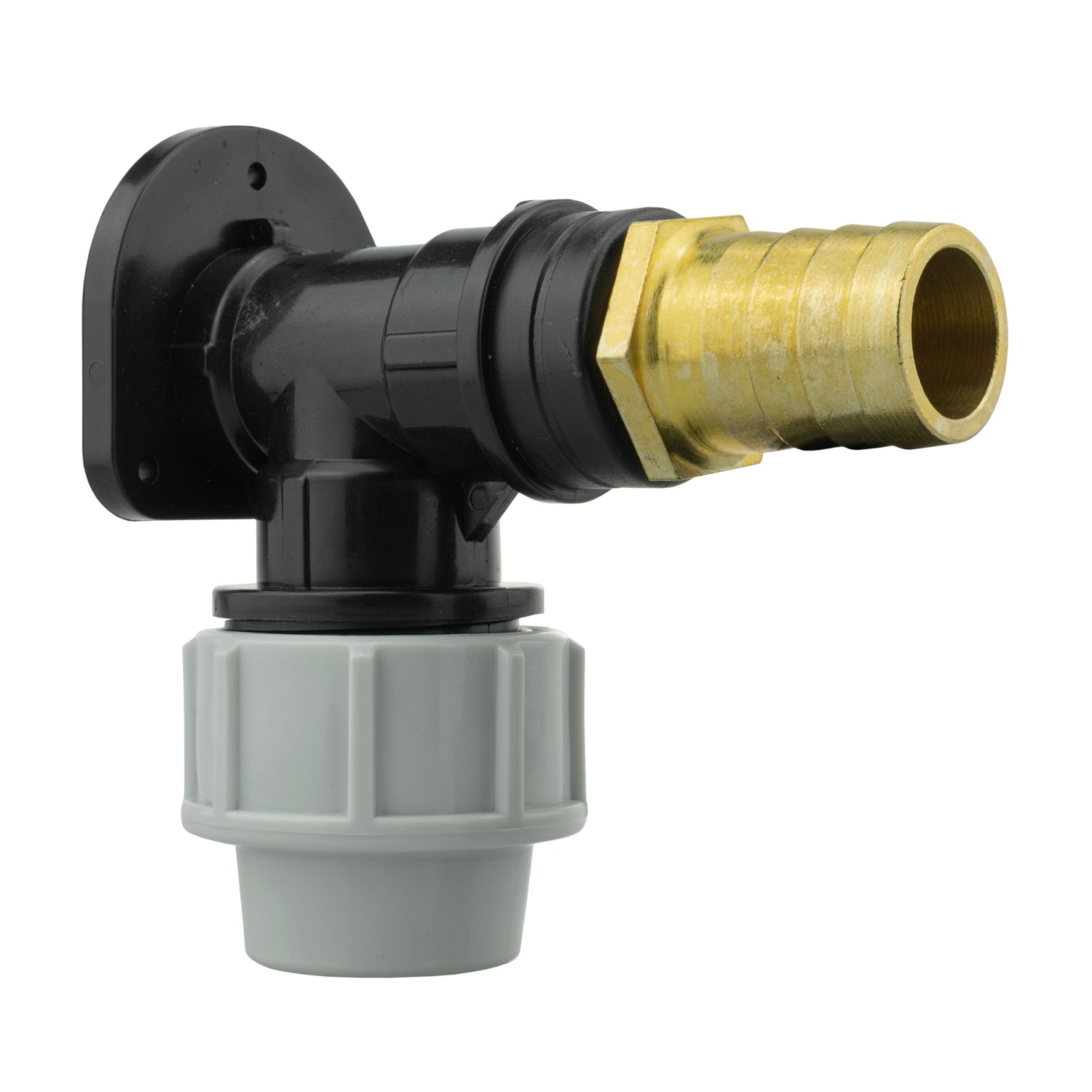

The Wall Flange Kit 25mm MDPE + 25mm Brass Barb provides a ready-to-install, reliable connection for 25mm MDPE pipe to a flat surface and to hose systems. It’s built for water supply, garden irrigation, and light industrial runs, delivering a simple, compression-based seal without the need for specialist tools. What’s included
- MDPE Wall Flange 25mm – ¾" BSP (MDPEWF25-34BSPF)

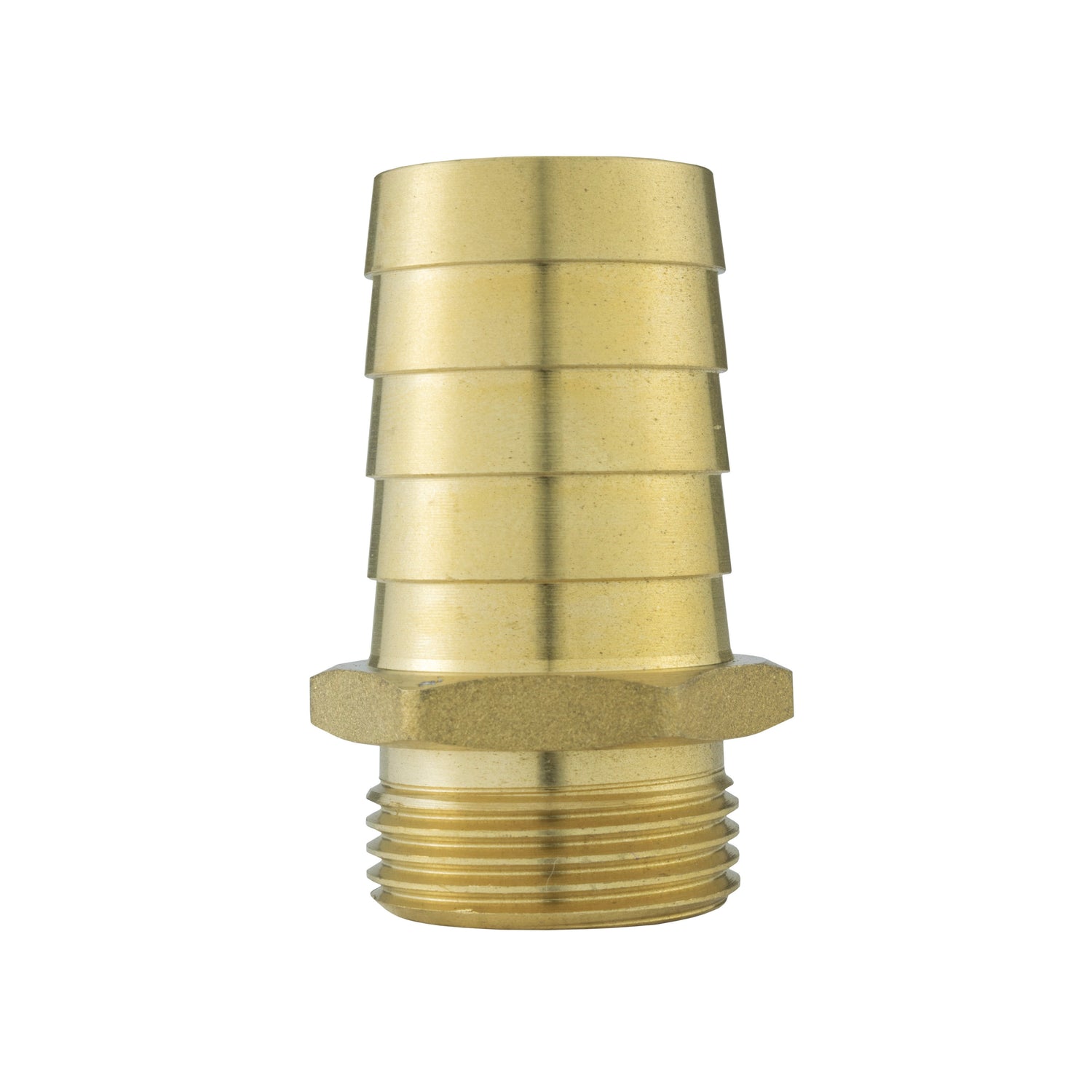

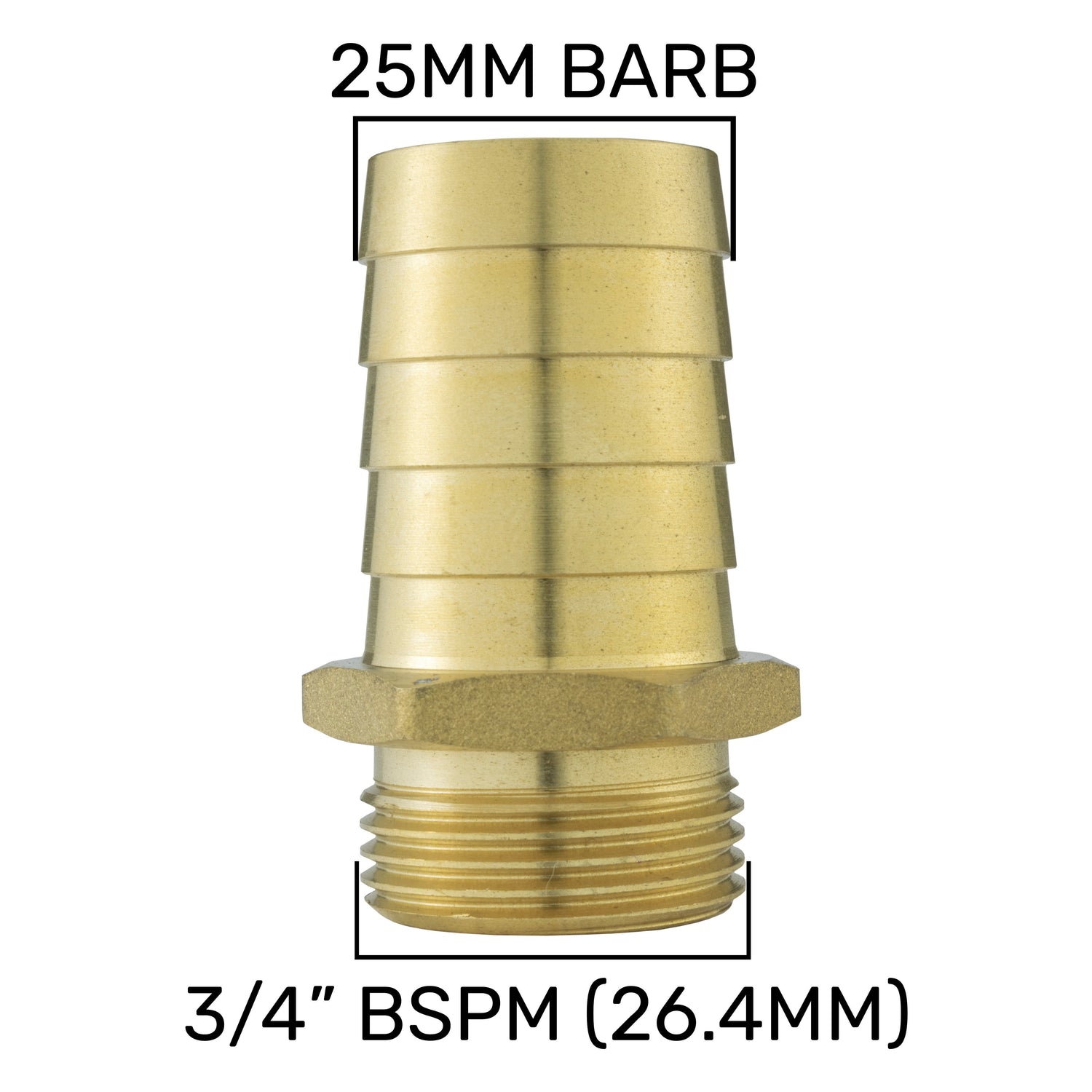

- Brass Straight Joiner 25mm – ¾" BSP (BRSTR25B-34BSPM) Key features
- MDPE PN10 fittings rated to withstand up to 10 bar (approximately 145 psi) maximum working pressure, suitable for typical domestic and light commercial use.
- Wall flange with compression connection to MDPE pipe and a ¾" BSP thread to accept the brass joiner.
- Brass straight joiner is barbed on the hose end for a secure grip and has a BSP threaded end to mate with the MDPE wall flange, delivering a tight, leak-resistant junction.
- Brass offers strong mechanical performance and corrosion resistance, extending service life in varied conditions.
- The kit relies on compression connections to create a seal without specialist tooling. Why this kit stands out
- It combines a surface-mounted MDPE feed with a robust brass male thread, reducing the number of separate components you need on site.
- The barbed hose end on the brass joiner provides a dependable grip for hose connections, while the BSP thread ensures compatibility with standard MDPE fixtures.
- The materials chosen—MDPE for the pipe side and brass for the joiner—balance flexibility, durability, and resistance to common chemicals encountered in plumbing and irrigation. Installation notes
- Ensure MDPE pipe ends are clean and cut square; a gentle deburring helps improve seating.
- Apply PTFE tape to BSP threads during assembly (not included in this kit) to improve thread seal.
- Do not exceed the 10 bar maximum; check system pressures in both domestic and commercial contexts. Note: PTFE Tape is not included and must be purchased separately. This kit is ideal for tradespeople fitting MDPE lines where a surface connection and a robust join are required.
