MDPE Straight Joiner 32mm - 3/4" BSPF
MDPE Straight Joiner 32mm - 3/4" BSPF is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

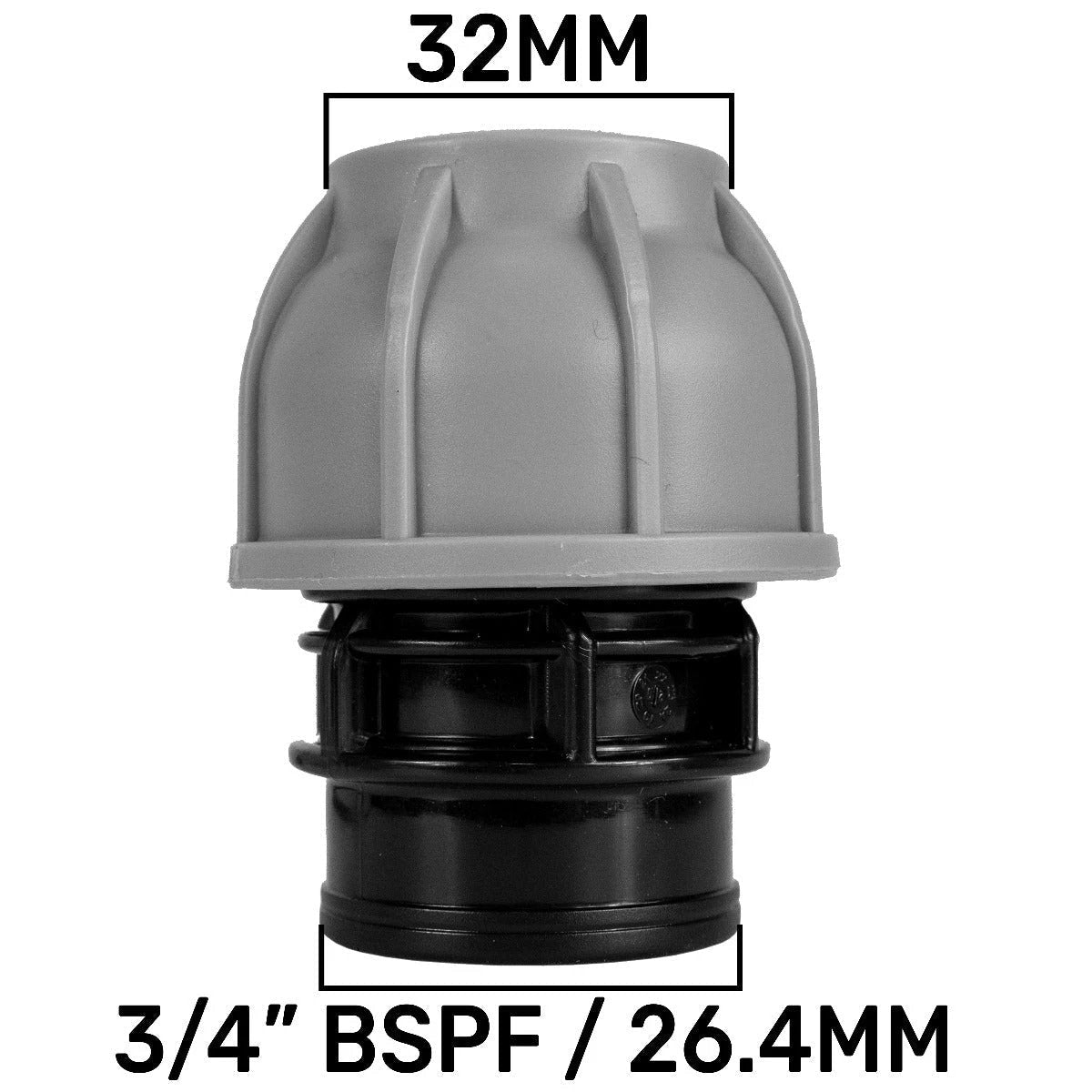

MDPE Straight Joiner 32mm - 3/4" BSPF is a compression fitting that connects a 32mm MDPE pipe to a 3/4" female BSP thread. It’s designed for straight, reliable links in water supply and irrigation systems.
Built from MDPE, the fitting offers good chemical resistance and durability in typical domestic and light industrial environments. It accepts a 32mm MDPE pipe on one end and a 3/4" BSP female thread on the other, enabling a direct, inline connection without bending or unnecessary fittings.
- Connection: 32mm MDPE pipe to 3/4" BSPF threaded outlet; straight joint.
- Pressure rating: PN10, suitable for up to 10 bars (approximately 1 MPa or 145 psi) in cold-water and irrigation services.
- Material: MDPE for corrosion resistance and long service life in circulating fluids.
- Sealing: Compression joint with an olive to form a leak-free seal when installed to the manufacturer’s guidance.
- Installation: Simple hand-tool operation; no soldering required. Ensure correct pipe insertion depth and tighten the compression nut to the recommended torque.
- Applications: Ideal for water supply runs, garden irrigation, and light industrial piping where a straight connection to a threaded fixture is needed.
Typical use cases include extending a MDPE line from a meter or tank to a valve, attaching a regulator or filter via a threaded outlet, or converting a 32mm run to a threaded connection for ancillary components. To maximise reliability, cut pipe ends square, deburr edges, and check that the olive seats evenly before tightening. After installation, conduct a pressure test at a low level and inspect for leaks before proceeding with the rest of the system.
Choosing this MDPE Straight Joiner delivers a robust, cost-effective solution with a straightforward on-site fit. It provides a secure, compliant link within MDPE networks, combining durable plastic construction, PN10 rating, and compatibility with standard 32mm piping and 3/4" BSP fittings.
Description
Description
MDPE Straight Joiner 32mm - 3/4" BSPF is a compression fitting that connects a 32mm MDPE pipe to a 3/4" female BSP thread. It’s designed for straight, reliable links in water supply and irrigation systems.
Built from MDPE, the fitting offers good chemical resistance and durability in typical domestic and light industrial environments. It accepts a 32mm MDPE pipe on one end and a 3/4" BSP female thread on the other, enabling a direct, inline connection without bending or unnecessary fittings.
- Connection: 32mm MDPE pipe to 3/4" BSPF threaded outlet; straight joint.
- Pressure rating: PN10, suitable for up to 10 bars (approximately 1 MPa or 145 psi) in cold-water and irrigation services.
- Material: MDPE for corrosion resistance and long service life in circulating fluids.
- Sealing: Compression joint with an olive to form a leak-free seal when installed to the manufacturer’s guidance.
- Installation: Simple hand-tool operation; no soldering required. Ensure correct pipe insertion depth and tighten the compression nut to the recommended torque.
- Applications: Ideal for water supply runs, garden irrigation, and light industrial piping where a straight connection to a threaded fixture is needed.
Typical use cases include extending a MDPE line from a meter or tank to a valve, attaching a regulator or filter via a threaded outlet, or converting a 32mm run to a threaded connection for ancillary components. To maximise reliability, cut pipe ends square, deburr edges, and check that the olive seats evenly before tightening. After installation, conduct a pressure test at a low level and inspect for leaks before proceeding with the rest of the system.
Choosing this MDPE Straight Joiner delivers a robust, cost-effective solution with a straightforward on-site fit. It provides a secure, compliant link within MDPE networks, combining durable plastic construction, PN10 rating, and compatibility with standard 32mm piping and 3/4" BSP fittings.
