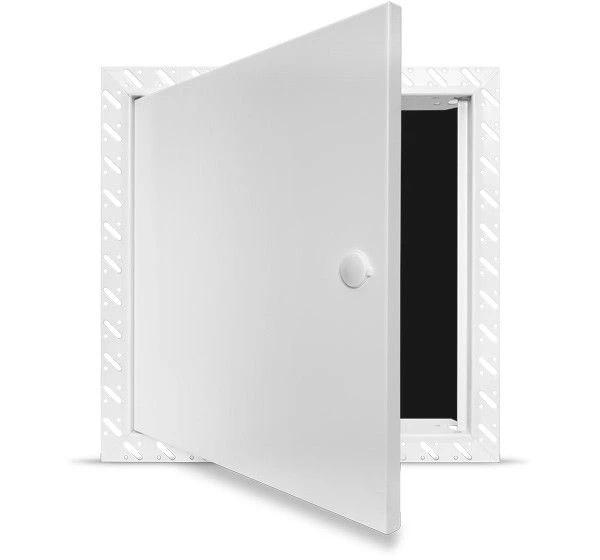

FlipFix Access Panels – Non Fire Rated Beaded Frame with Standard Lock
The FlipFix Access Panel with a non fire rated beaded frame and standard lock is a practical solution for inspection access in walls and ceilings. Available at Trade Counter Direct, this panel is engineered for straightforward installation, featuring a metal faced door and an innovative fitting system that eliminates the need for additional materials or fixings.
Constructed from robust 0.9 mm Zintec steel and finished in a durable RAL 9010 30% gloss powder coat, the FlipFix MD panel is designed for longevity and ease of use. The fully demountable door is secured with a standard budget lock and fitted with a screw pin hinge, making it ideal for inspection purposes where personal access is not required.
Features
- Designed for use in both walls and ceilings
- Quick installation with supplied pop-out cutting template
- Eliminates the need for extra materials such as wood, screws, or glue
- Metal faced, fully demountable door for easy inspection access
- Manufactured from 0.9 mm Zintec steel for enhanced durability
- Powder coated in RAL 9010 (30% gloss) for a clean, professional finish
- Secured with a standard budget lock and screw pin hinge
- Supplied with a 25 mm picture frame beaded edge
- Saves up to 80% of installation time compared to standard panels
Specifications
| Range |
FlipFix MD |
| Frame Type |
Non fire rated beaded frame |
| Lock Type |
Standard budget lock |
| Material |
0.9 mm Zintec steel |
| Finish |
Powder coated RAL 9010, 30% gloss |
| Door |
Fully demountable, metal faced |
| Hinge Type |
Screw pin hinge |
| Frame Width |
25 mm picture frame |
| Suitable For |
Inspection purposes only (not suitable for personal access) |
| Installation |
Pop-out cutting template included |
| Available Sizes (Structural Opening) |
150 x 150 mm
230 x 150 mm
200 x 200 mm
300 x 300 mm
350 x 350 mm
450 x 450 mm
550 x 550 mm
600 x 300 mm
600 x 600 mm
900 x 600 mm
1200 x 600 mm
|
| Overall Size (Including Frame) |
199 x 199 mm
278 x 199 mm
248 x 248 mm
348 x 348 mm
398 x 398 mm
498 x 498 mm
598 x 598 mm
648 x 347 mm
648 x 648 mm
948 x 648 mm
1248 x 648 mm
|
