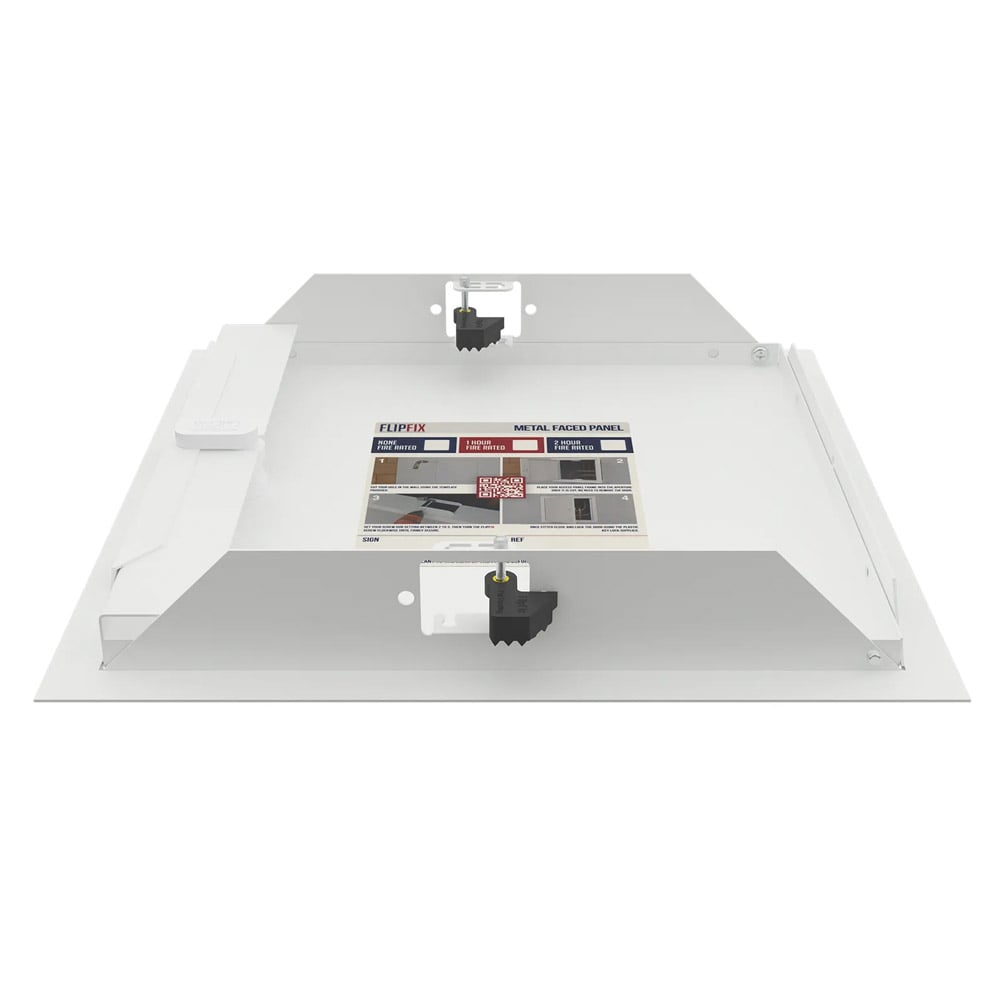

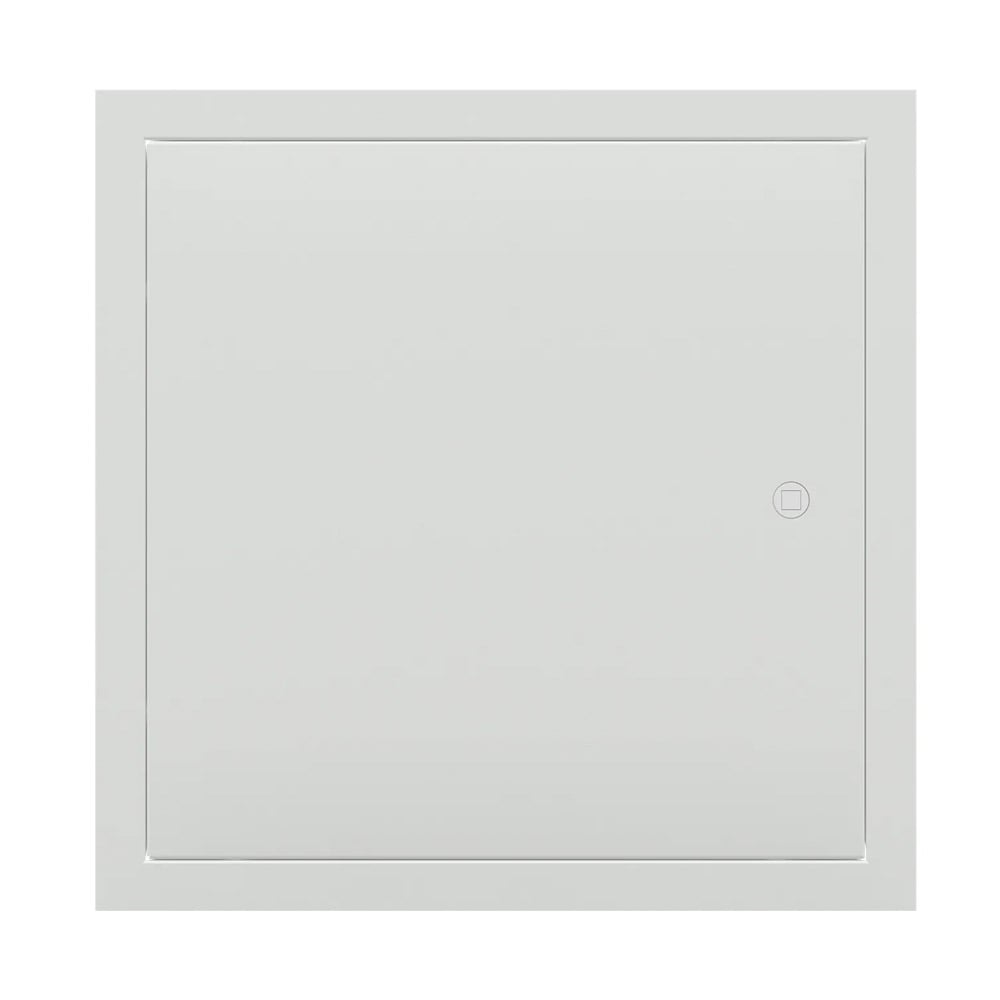

FlipFix Access Panel: 1 Hour Fire Rated, Fast Install
FlipFix Access Panel: 1 Hour Fire Rated, Fast Install - Picture Frame / 150x150mm is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
FlipFix Access Panels offer rapid, compliant inspection access for walls and ceilings, combining a robust fire-rated door with a clean, professional finish. Built for commercial and domestic installs, it installs quickly and performs reliably.
- 1 Hour Fire Resistance: Meets required safety standards for protected access points in walls and ceilings.
- 0.9 mm Zintec Steel Construction: Zone-durable, corrosion-resistant body designed for long-term use.
- 25 mm Picture Frame: Provides a neat, finished edge that reinforces a professional look.

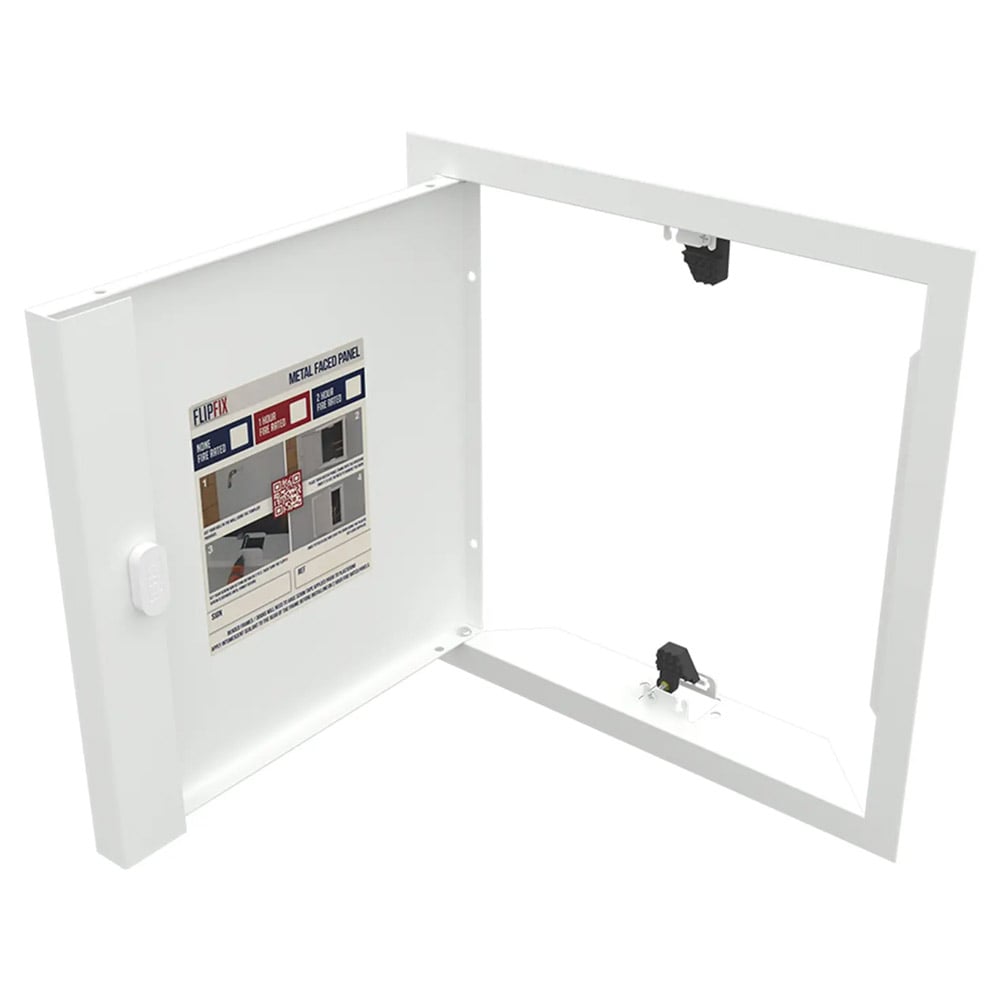

- Fully Demountable Door: Metal-faced with a screw pin hinge for smooth operation and easy servicing.
- Standard Budget Lock: Secure, cost-effective access solution without compromising safety.
- Powder Coated Finish: RAL 9010, 30% gloss for a resilient, attractive appearance.

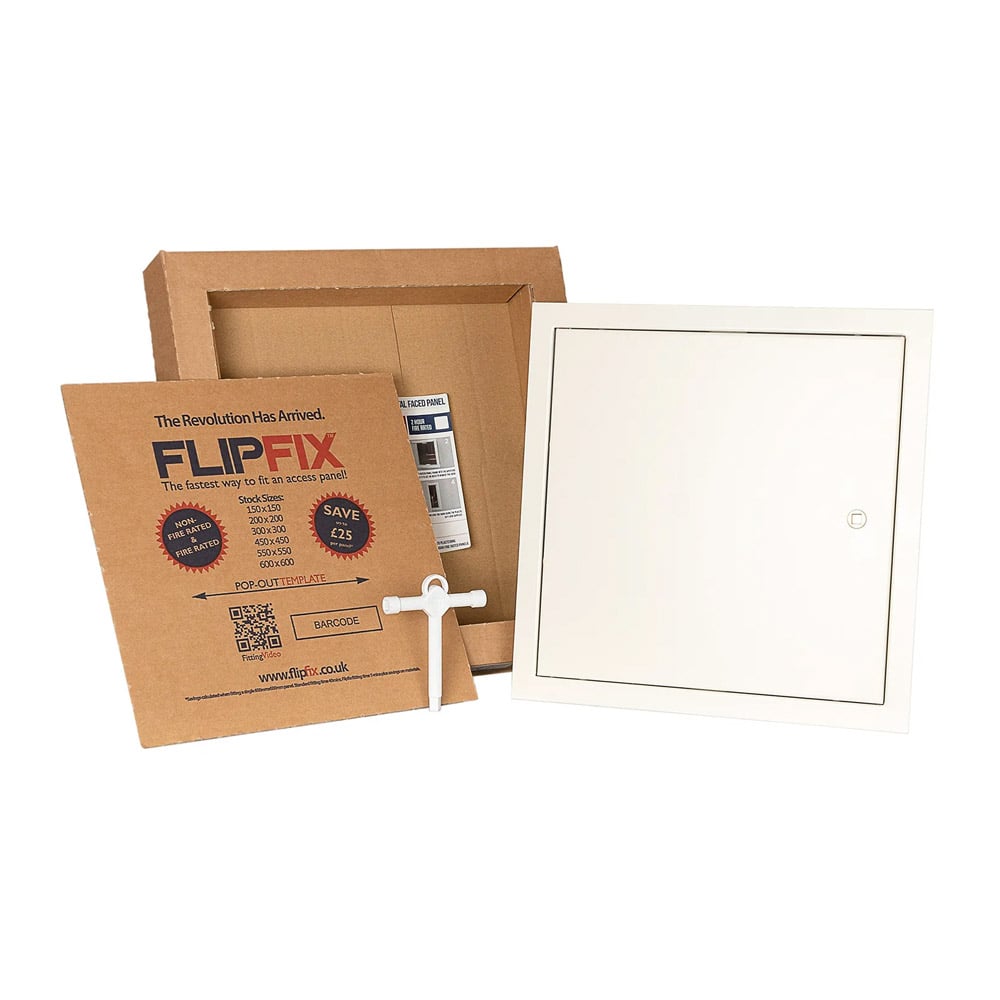

- Pop-out Cutting Template: Quick on-site opening with accurate cuts, reducing installation time.
- Wall and Ceiling Compatibility: Versatile design suitable for both orientations in a range of environments.
- Sizes Available: Structural openings 150×150, 200×200, 300×300, 450×450, 550×550, 600×300, 600×600, 900×600, 1200×600; including-frame sizes 199×199, 248×248, 348×348, 498×498, 598×598, 648×347, 648×648, 948×648, 1248×648.
Designed for efficiency and reliability, FlipFix MD panels minimise installation complexity while delivering strong fire protection and secure inspection access. The demountable door simplifies ongoing maintenance, and the professional finish helps maintain a tidy, compliant appearance in both new builds and retrofit projects.
| Range/Series | FlipFix MD |
|---|---|
| Fire Rating | 1 Hour |
| Frame Type | 25 mm Picture Frame |
| Lock Type | Standard Budget Lock |
| Material | 0.9 mm Zintec Steel |
| Finish | Powder Coated, RAL 9010 30% Gloss |
| Door Type | Fully Demountable, Metal-Faced |
| Hinge Type | Screw Pin Hinge |
| Suitable Applications | Walls and Ceilings |
| Sizes Available (Structural Opening) | 150 x 150 mm 200 x 200 mm 300 x 300 mm 450 x 450 mm 550 x 550 mm 600 x 300 mm 600 x 600 mm 900 x 600 mm 1200 x 600 mm |
| Sizes Including Frame | 199 x 199 mm 248 x 248 mm 348 x 348 mm 498 x 498 mm 598 x 598 mm 648 x 347 mm 648 x 648 mm 948 x 648 mm 1248 x 648 mm |
| Installation Aid | Pop-out Cutting Template Included |
