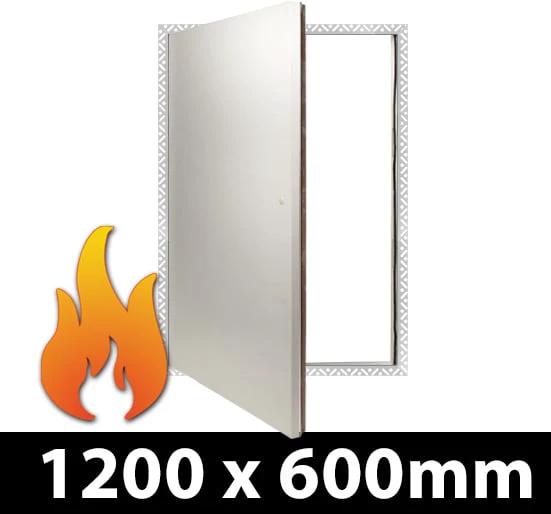

Fire Rated Riser Door Access Panel – Standard Lock
The Fire Rated Riser Door Access Panel with Standard Lock, available from Trade Counter Direct, is engineered for dry lined wall structures where fire protection or separation is essential. Featuring a beaded frame for seamless integration, this panel is ideal for use in both commercial and residential settings requiring reliable access and compliance with fire safety standards.
Designed to offer robust fire resistance and sound insulation, this access panel is constructed from durable 1.2 mm Zintec steel and finished in a high-quality white polyester powder coating. With a one-hour fire rating and precision engineering, it is suitable for a wide range of applications, including building services, concealed flues, ducts, and chimney systems.
Features
- One hour fire-rated, providing 60 minutes of fire resistance
- Tested to BSEN 1634-1:2008 and BSEN 1364-2:1997 standards
- Constructed from 1.2 mm Zintec steel for enhanced durability
- Beaded frame for seamless installation in dry lined wall structures
- Supplied with a standard budget lock and blanking plate
- Accommodates intumescent seals for superior fire protection
- Fully concealed, heavy-duty piano hinge and metal-faced door
- Provides a 30 dB measured sound insulation rating
- Removable door for easy maintenance access
- Finished in white RAL 9010 polyester powder coating (20% gloss)
- 12-month guarantee for peace of mind
Specifications
| Door Size |
1200 x 600 mm |
| Structural Opening |
1205 x 605 mm |
| Clear Opening |
1185 x 585 mm |
| Depth |
50 mm |
| Frame Type |
Beaded |
| Material |
1.2 mm Zintec steel |
| Finish |
White RAL 9010, polyester powder coated, 20% gloss |
| Weight |
15 kg |
| Fire Rating |
60 minutes (one hour) |
| Sound Insulation |
30 dB |
| Locking Mechanism |
Standard budget lock with blanking plate |
| Hinge |
Fully concealed, heavy-duty piano hinge |
| Compliance |
BSEN 1634-1:2008, BSEN 1364-2:1997 |
| Guarantee |
12 months |
Please note: This product is made to order and is non-returnable. Orders cannot be cancelled once placed. Please double-check all specifications before ordering.
