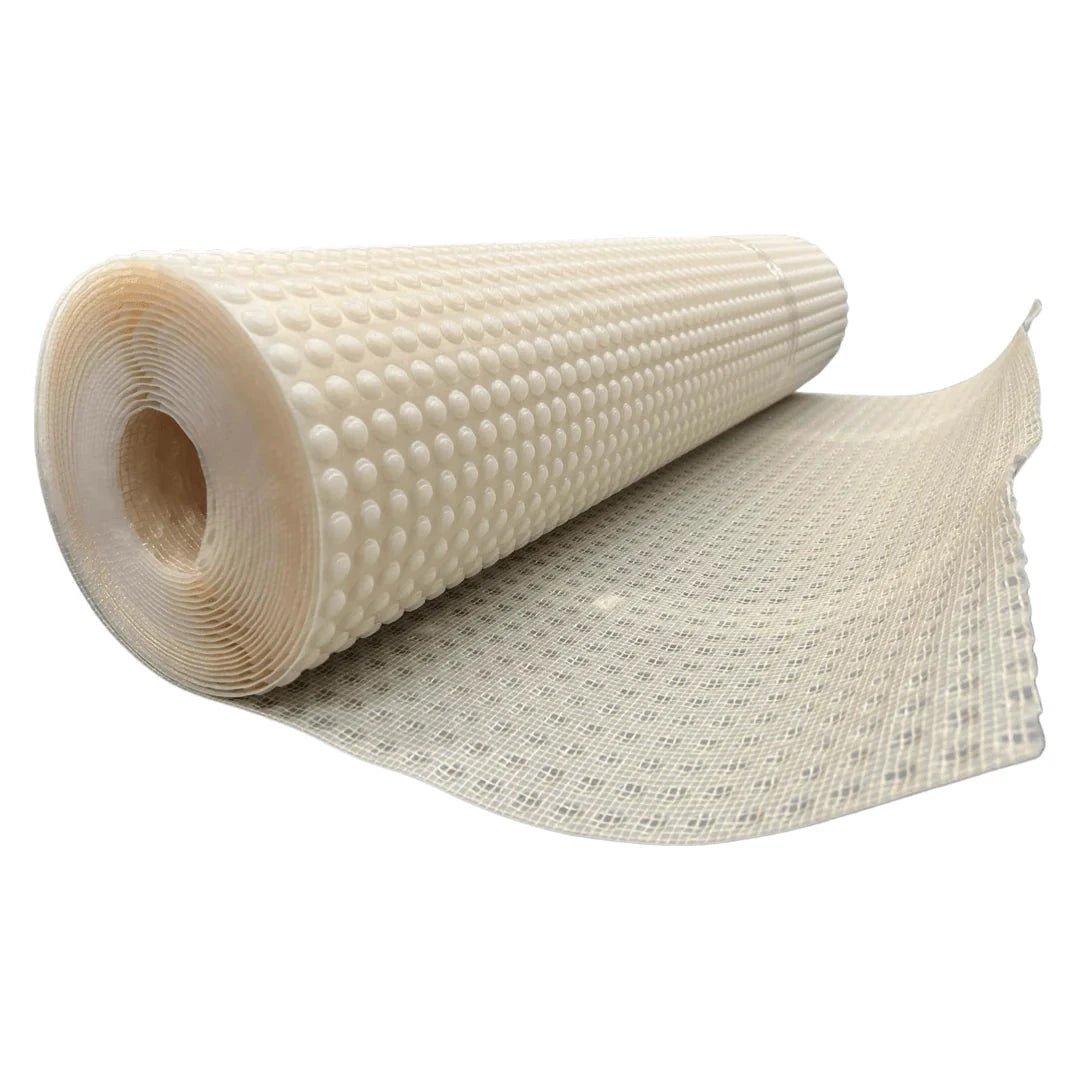

Transparent HDPE Damp-Proofing Membrane with Mesh Face for Direct Plaster Finishes
Biokil Crown 3mm Meshed Membrane Clear is a high-quality cavity drainage and damp-proofing membrane manufactured from clear, high-density polyethylene (HDPE), with a pre-bonded mesh surface to accept direct plaster or render. Designed for above-ground internal applications, it isolates damp, salt-contaminated, or friable masonry from internal finishes, providing a long-lasting solution for damp-proofing and wall restoration in refurbishment, heritage, or domestic projects.
Key Features & Benefits
-
Mesh-Bonded Surface: Accepts direct application of plaster, lime render, or renovating render without the need for boards.
-
3mm Stud Profile: Provides an air gap between damp substrates and interior finishes to allow ventilation and isolate moisture.
-
Clear HDPE Material: Enables visual inspection of substrate during installation, ideal for conservation and remedial work.
-
Breathable and Non-Invasive: Allows wall to dry while maintaining a secure finish – no need to remove contaminated substrates.
-
Quick Installation: Lightweight and easy to cut, handle, and fix using standard membrane plugs and sealing tape.
Product Details
-
Material: High-Density Polyethylene (HDPE) with welded mesh
-
Stud Height: 3mm
-
Thickness: Approx. 0.6mm
-
Colour: Clear with white mesh face
-
Roll Size: Typically 2m x 20m (40m²)
-
Weight: Approx. 0.45 kg/m²
-
Fixing Method: Use with Nu-Seal Plugs, Brick Plugs, and Sealing Tape or Overtape
-
SKU: BCMESH3CLR
Application Instructions
-
Surface Preparation: Remove loose debris. No need to clean salts or fully dry the wall surface.
-
Membrane Fixing: Position membrane with mesh facing into the room and secure with plugs at 250mm centres.
-
Sealing Joints: Overlap mesh or butt joint membrane sheets and seal using Sealing Tape or Overtape.
-
Apply Finish: Apply plaster, lime mortar, or Biokil Crown Renovating Render directly onto the mesh surface.
Limitations
- Not suitable for use on floors or in below-ground waterproofing without full system specification.
- Protect from UV exposure before finishing with render or plaster.
Health & Safety
Non-toxic and inert. Wear gloves and eye protection during installation. Refer to the product Safety Data Sheet (SDS) for detailed guidance.
