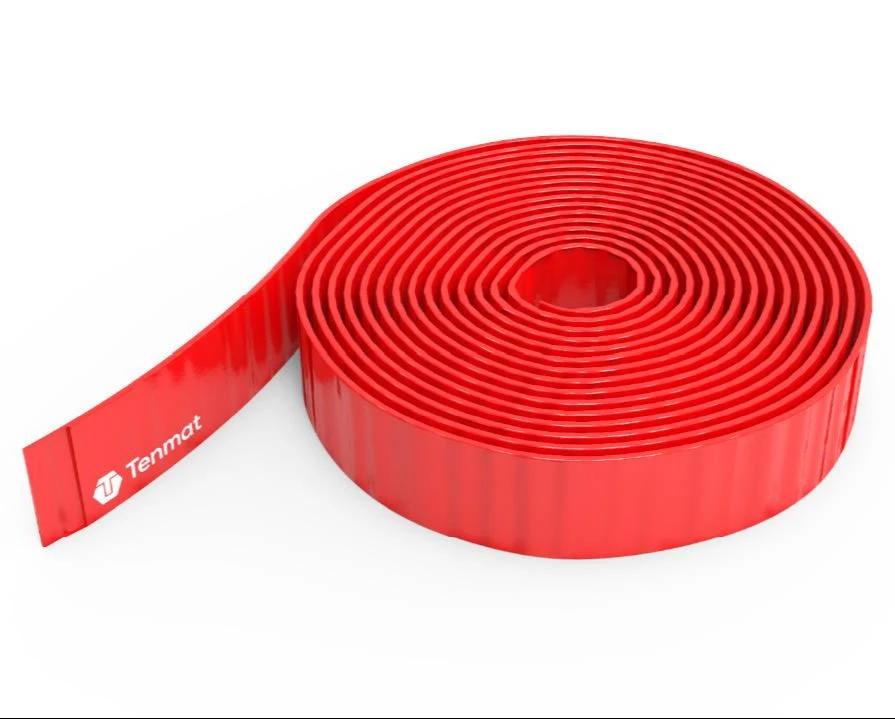

Tenmat Fire Rated Cavity Barrier Roll 65mm is a flexible intumescent solution for ventilated cavities behind masonry or brickwork façades. Designed to maintain airflow during normal conditions, the roll rapidly expands to seal off cavities in the event of fire—delivering 60 minutes of fire integrity and insulation.
Its ultra-thin 6mm profile offers an alternative to traditional cavity socks, saving both space and labour. Supplied in a 6.3m roll and covered with protective polythene for easy handling, it fits cavities up to 65mm, accommodating building tolerances up to 15mm. The CavGuard Roll 65 is ideal for uninsulated cavities requiring both ventilation and passive fire protection.
Key Features
Fire tested to provide 60 minutes of resistance
Flexible roll format saves space and installation time
6mm thickness for low-profile cavity fit
Maintains ventilation in normal conditions
Protective polythene layer for water resistance
Designed for use with masonry and brickwork only
Supports cavity widths up to 65mm, including tolerances
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Downloadable information can be found here:
Tenmat Fire Rated Cavity Barrier Roll 65mm is a flexible intumescent solution for ventilated cavities behind masonry or brickwork façades. Designed to maintain airflow during normal conditions, the roll rapidly expands to seal off cavities in the event of fire—delivering 60 minutes of fire integrity and insulation.
Its ultra-thin 6mm profile offers an alternative to traditional cavity socks, saving both space and labour. Supplied in a 6.3m roll and covered with protective polythene for easy handling, it fits cavities up to 65mm, accommodating building tolerances up to 15mm. The CavGuard Roll 65 is ideal for uninsulated cavities requiring both ventilation and passive fire protection.
Key Features
Fire tested to provide 60 minutes of resistance
Flexible roll format saves space and installation time
6mm thickness for low-profile cavity fit
Maintains ventilation in normal conditions
Protective polythene layer for water resistance
Designed for use with masonry and brickwork only
Supports cavity widths up to 65mm, including tolerances
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online. The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days.
Please get in touch before you order if you need a specific delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page. Some orders are delivered on our vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations, we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Tenmat CavGuard Roll 65 is a fire rated cavity barrier roll for ventilated masonry cavities. It expands on fire exposure to seal cavities and resist flame spread for 60 minutes. Simple, low-profile, and quick to install.
Tenmat Fire Rated Cavity Barrier Roll 65mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
Tenmat Fire Rated Cavity Barrier Roll 65mm is a flexible intumescent solution for ventilated cavities behind masonry or brickwork façades. Designed to maintain airflow during normal conditions, the roll rapidly expands to seal off cavities in the event of fire—delivering 60 minutes of fire integrity and insulation.
Its ultra-thin 6mm profile offers an alternative to traditional cavity socks, saving both space and labour. Supplied in a 6.3m roll and covered with protective polythene for easy handling, it fits cavities up to 65mm, accommodating building tolerances up to 15mm. The CavGuard Roll 65 is ideal for uninsulated cavities requiring both ventilation and passive fire protection.
Key Features
Fire tested to provide 60 minutes of resistance
Flexible roll format saves space and installation time
6mm thickness for low-profile cavity fit
Maintains ventilation in normal conditions
Protective polythene layer for water resistance
Designed for use with masonry and brickwork only
Supports cavity widths up to 65mm, including tolerances
Tenmat Fire Rated Cavity Barrier Roll 65mm is a flexible intumescent solution for ventilated cavities behind masonry or brickwork façades. Designed to maintain airflow during normal conditions, the roll rapidly expands to seal off cavities in the event of fire—delivering 60 minutes of fire integrity and insulation.
Its ultra-thin 6mm profile offers an alternative to traditional cavity socks, saving both space and labour. Supplied in a 6.3m roll and covered with protective polythene for easy handling, it fits cavities up to 65mm, accommodating building tolerances up to 15mm. The CavGuard Roll 65 is ideal for uninsulated cavities requiring both ventilation and passive fire protection.
Key Features
Fire tested to provide 60 minutes of resistance
Flexible roll format saves space and installation time
6mm thickness for low-profile cavity fit
Maintains ventilation in normal conditions
Protective polythene layer for water resistance
Designed for use with masonry and brickwork only
Supports cavity widths up to 65mm, including tolerances
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Passive Fire Performance

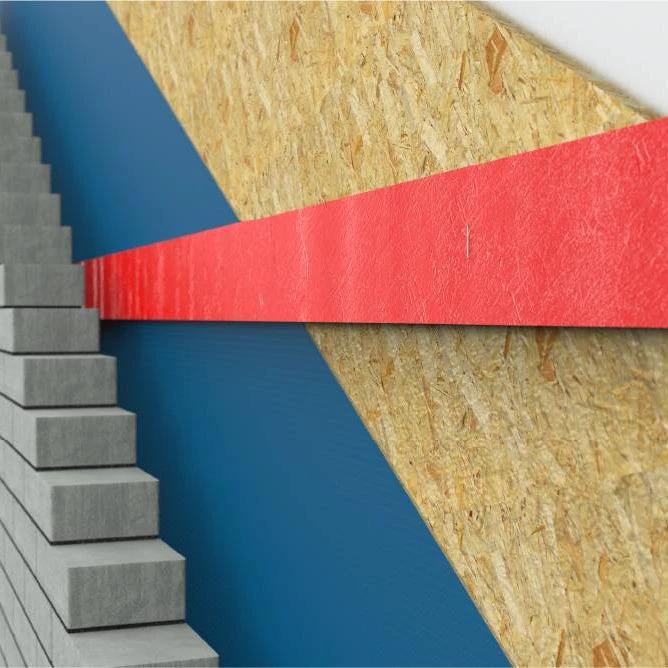

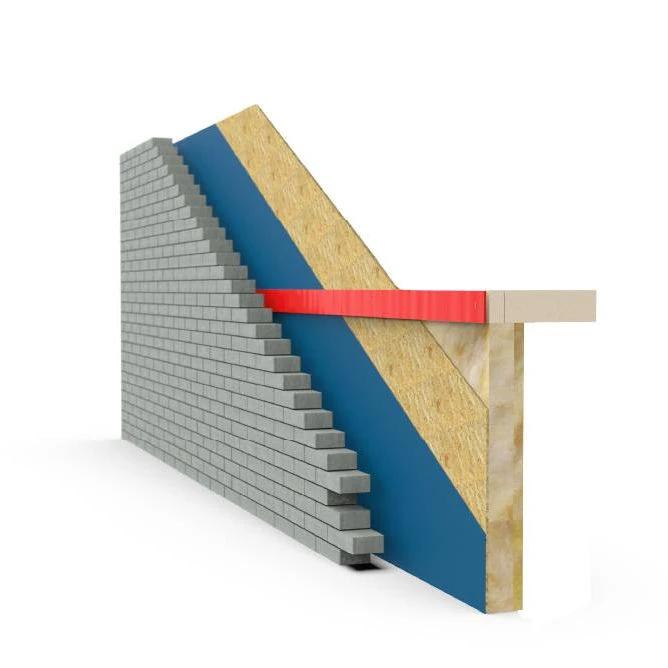

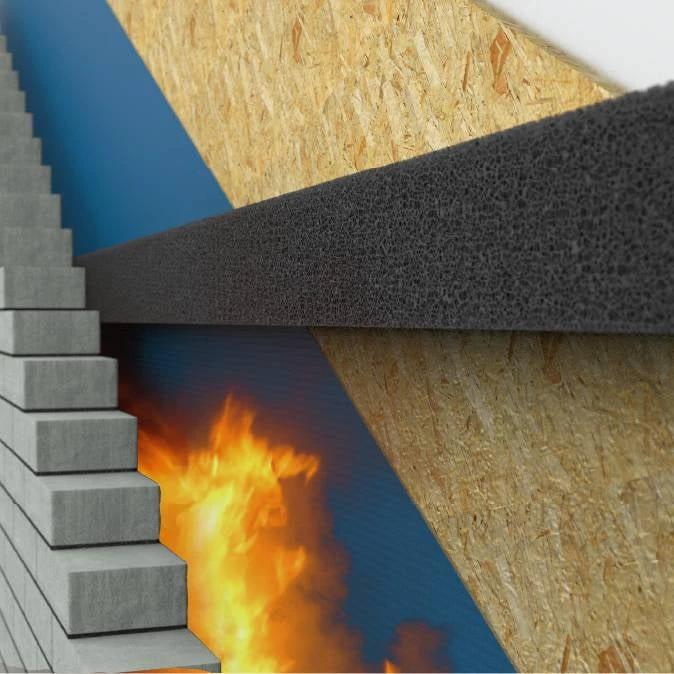

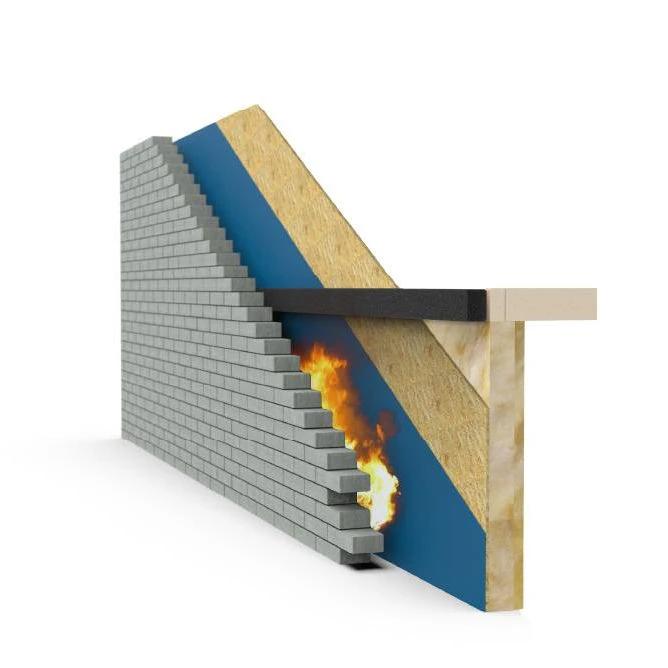

CavGuard Roll 65 by Tenmat is engineered for high-integrity fire stopping in external cavity walls. Its intumescent core activates during fire, expanding to seal off the air gap and limit spread through ventilated cavities.
The roll’s 6mm design allows for continuous ventilation where required and is compatible with uninsulated brick or masonry walls. It reduces the need for cavity trays or weepholes, cutting down build time and complexity.
Designed for Flexible Fit
With a roll length of 6.3m, CavGuard Roll 65 is easy to trim and install. It adapts to site tolerances up to 15mm beyond the standard 50mm cavity, making it suitable for varied construction needs without sacrificing safety.
Easy to Handle and Install
Lightweight and flexible, it can be fitted quickly with minimal tools. The polythene layer ensures safe handling and protects the product before activation. Once in place, no maintenance is needed, making it a cost-efficient solution.

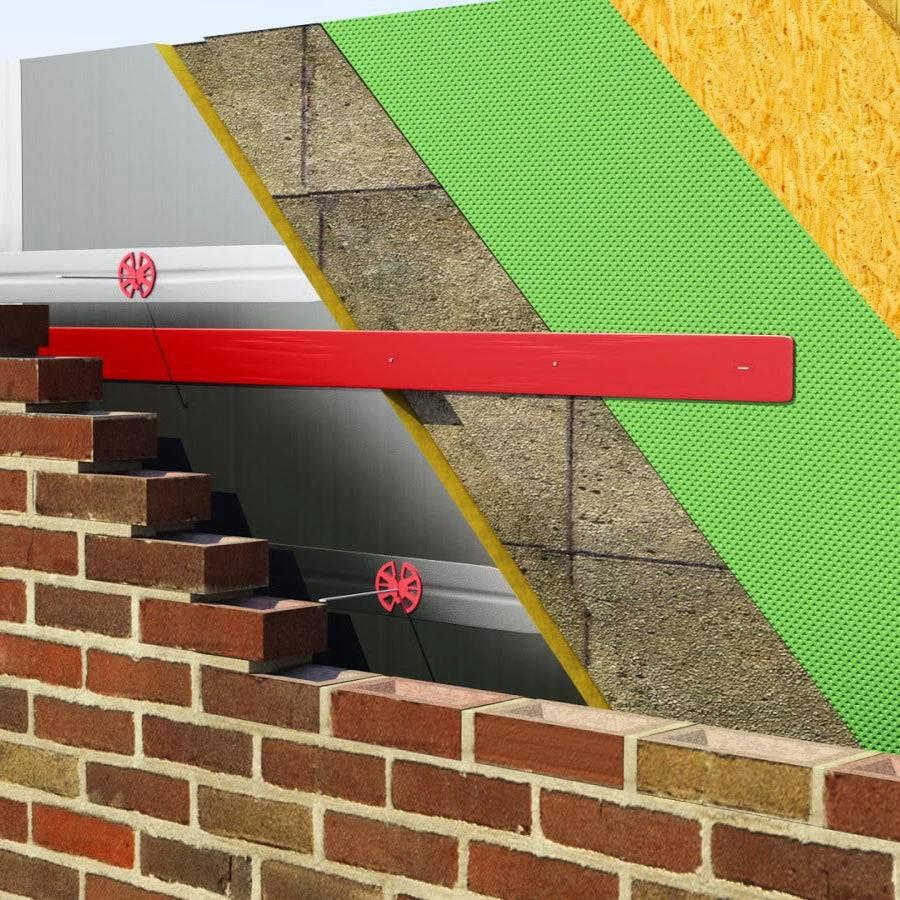

Built for Ventilated Façades
CavGuard Roll 65 supports the airflow needed in ventilated façades, preserving energy performance and minimising the risk of trapped moisture. In case of fire, it seals the cavity while preserving structure for up to 60 minutes.
Backed by Proven Fire Testing
Certified to deliver up to 60 minutes of insulation and integrity, Tenmat’s CavGuard Roll 65 meets the passive fire safety standards required for modern construction. Refer to the manufacturer brochure for full testing data.
