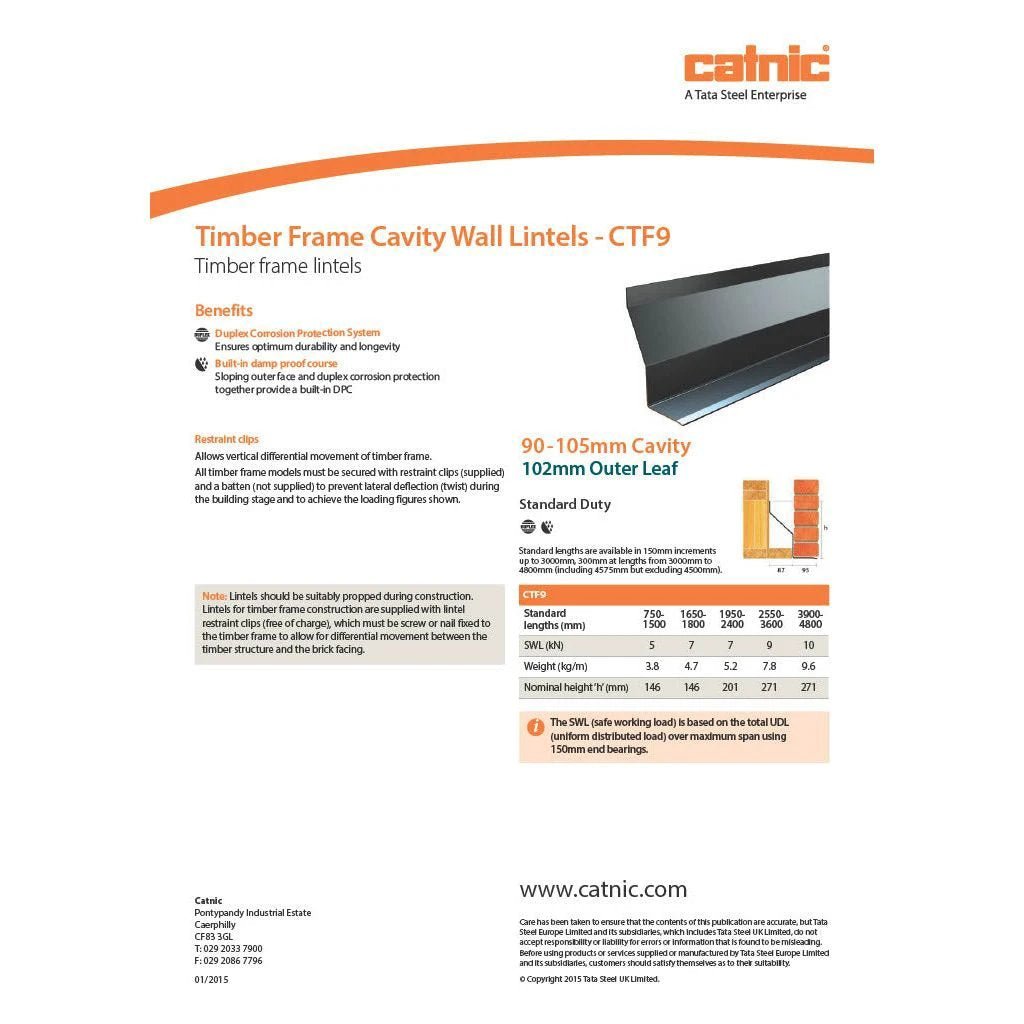

Catnic Timber Frame Lintels CTF9 - Armstrong CheshireSkip to content

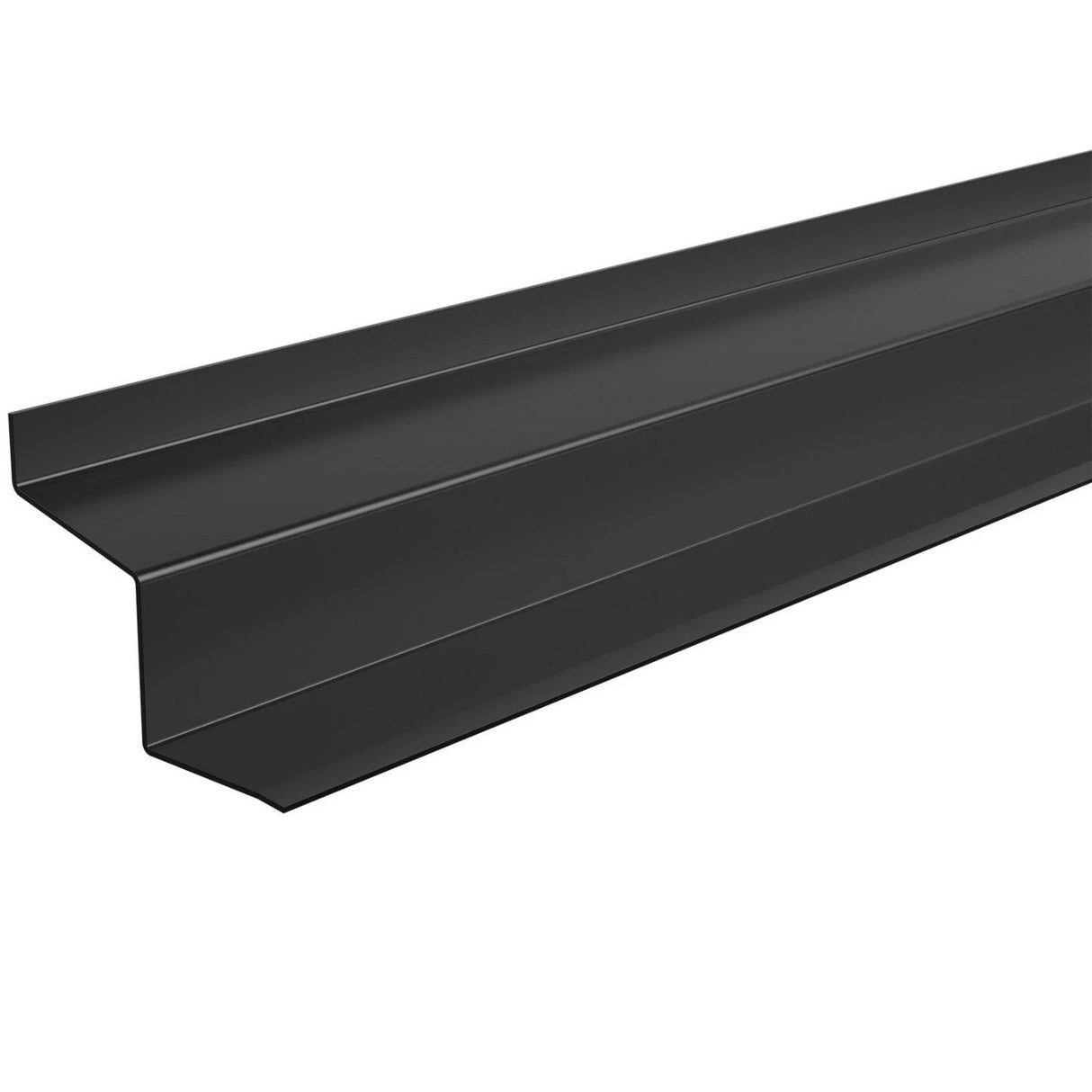

Catnic Timber Frame Lintel CTF9 90-105mm - 900mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
Product Benefits
Duplex Corrosion Protection
Built-in DPC
Standard Lengths (mm)
SWL (kN)
Weight (kg/m)

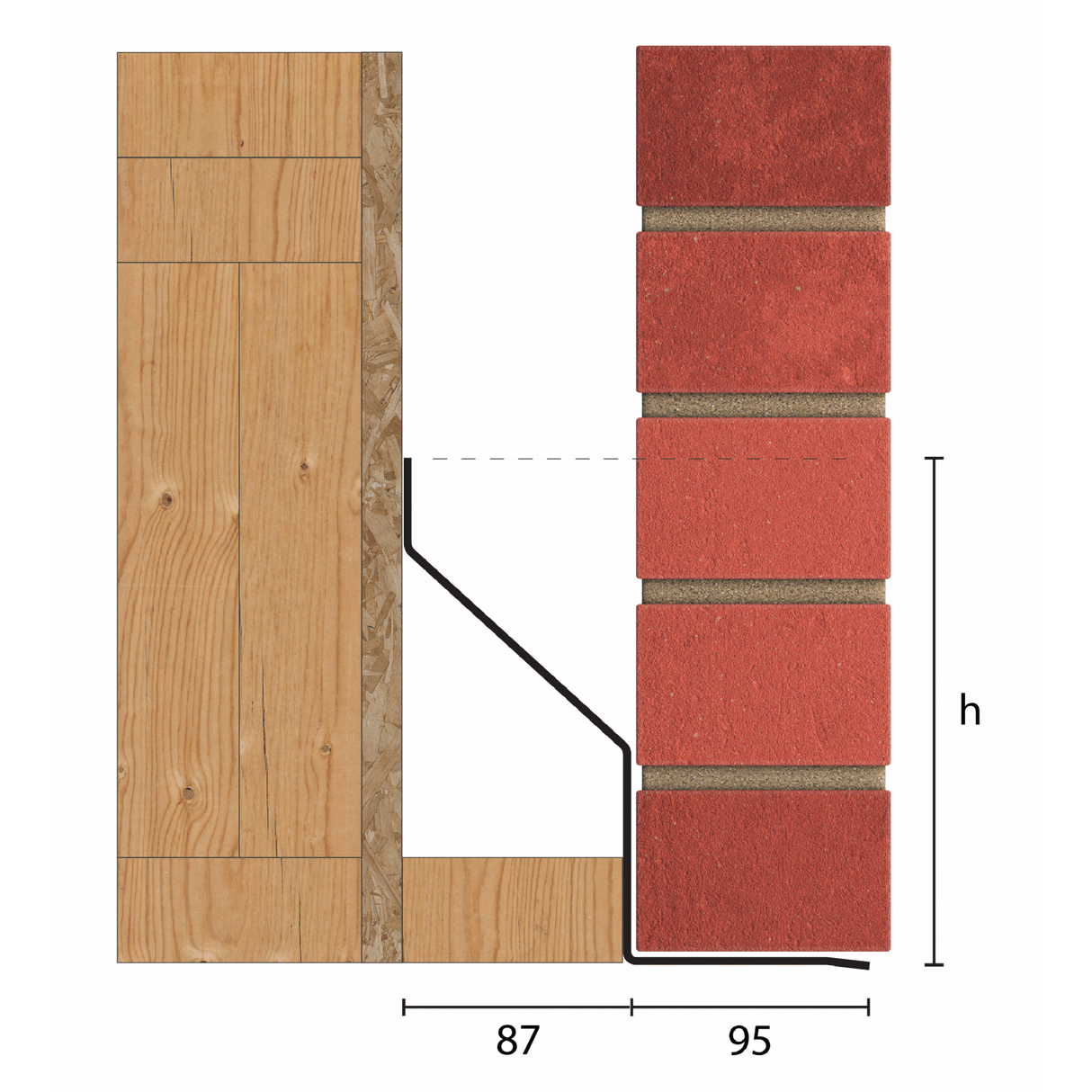

Nominal height 'h' (mm)
750 - 1500
5
3.8
146
1650 - 1800
7
4.7
146
1950 - 2400
7
5.2
201
2550 - 3600
9
7.8
271
3900 - 4800
10
9.6
271
Standard lengths are available in increments of 150mm at lengths up to 3000mm, 300mm at lengths from 3000mm - 4800mm (including 4575 but excluding 4500mm).
The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.

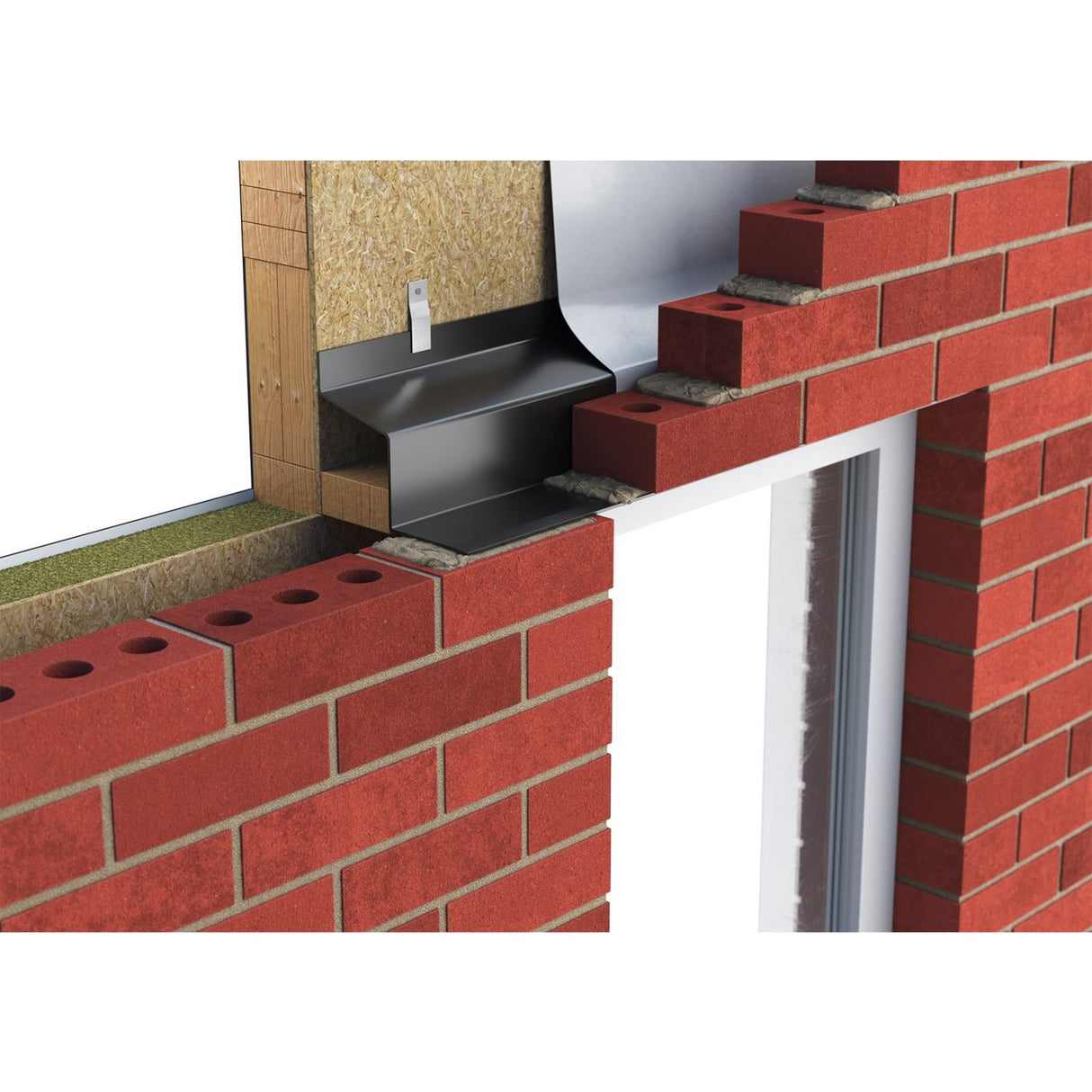

All timber frame models must be secured with restraint clips (supplied) and a batten (not supplied) to prevent lateral deflection (twist) during the building stage to achieve the loading figures shown.
Timber frame lintels should be suitable propped during construction.
