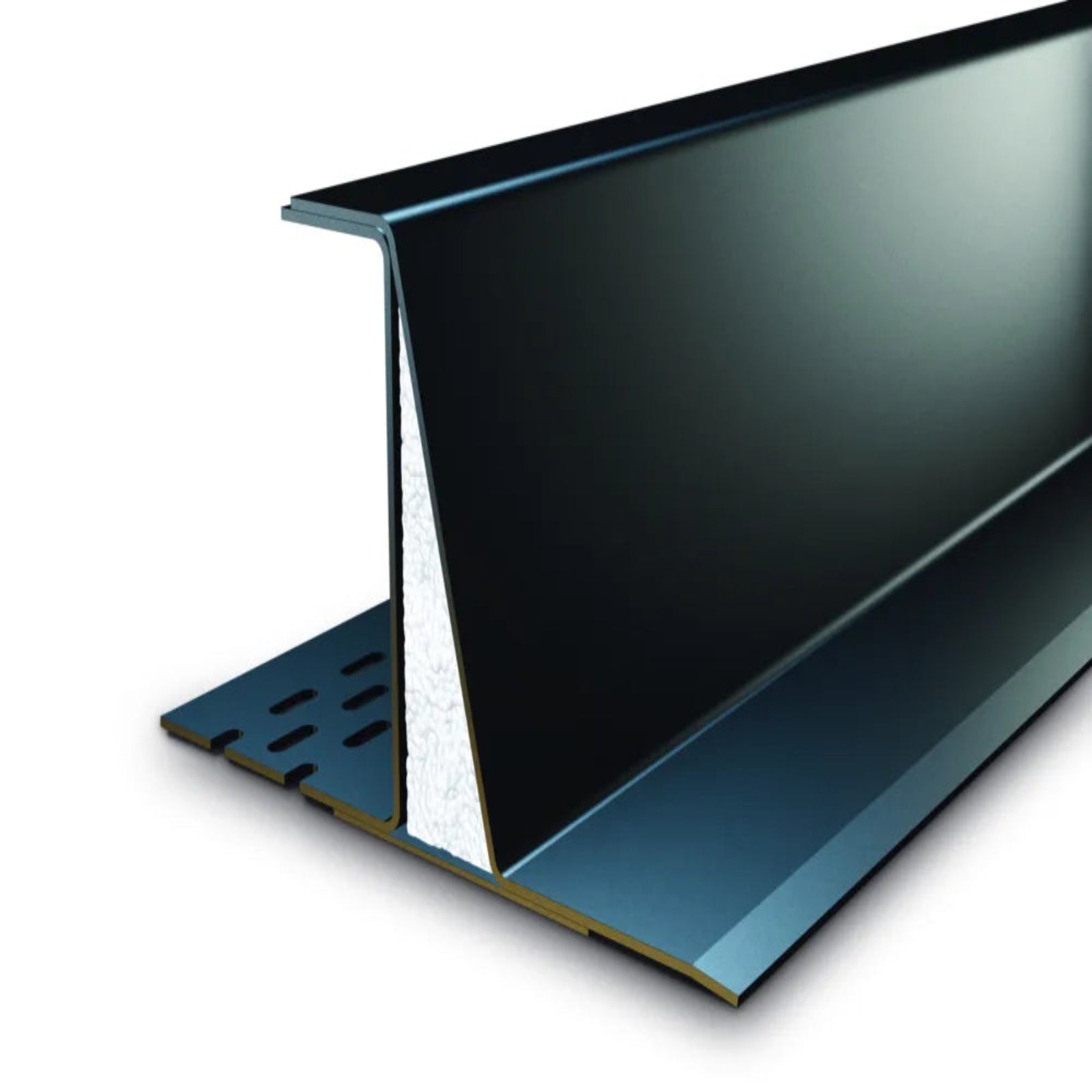

Catnic CX90/100 –  Extra Heavy Duty Cavity Wall Lintel

The Catnic CX90/100 Lintel is engineered for projects requiring maximum load-bearing capability across 100mm cavities, making it an ideal choice for applications demanding reliable performance and longevity.

Manufactured from high-grade galvanised steel and finished with a durable powder coating, this lintel is built to withstand harsh conditions while providing robust support for various masonry loads.

Product Specifications and Key Features

• Material and Durability: Constructed from galvanised steel with a resilient powder-coated finish, the CX90/100 ensures extended lifespan and resistance to corrosion and weathering.
• Integrated Damp Proof Course (DPC): The built-in DPC streamlines installation, effectively safeguarding against moisture penetration and prolonging the structure's durability.
• Insulated Centre: Featuring an insulated core, this lintel offers enhanced thermal performance, making it suitable for energy-efficient projects where insulation is a priority.
• Extra Heavy Duty Classification: The lintel is rated as extra heavy duty, capable of supporting high loads and meeting the demands of challenging construction applications.

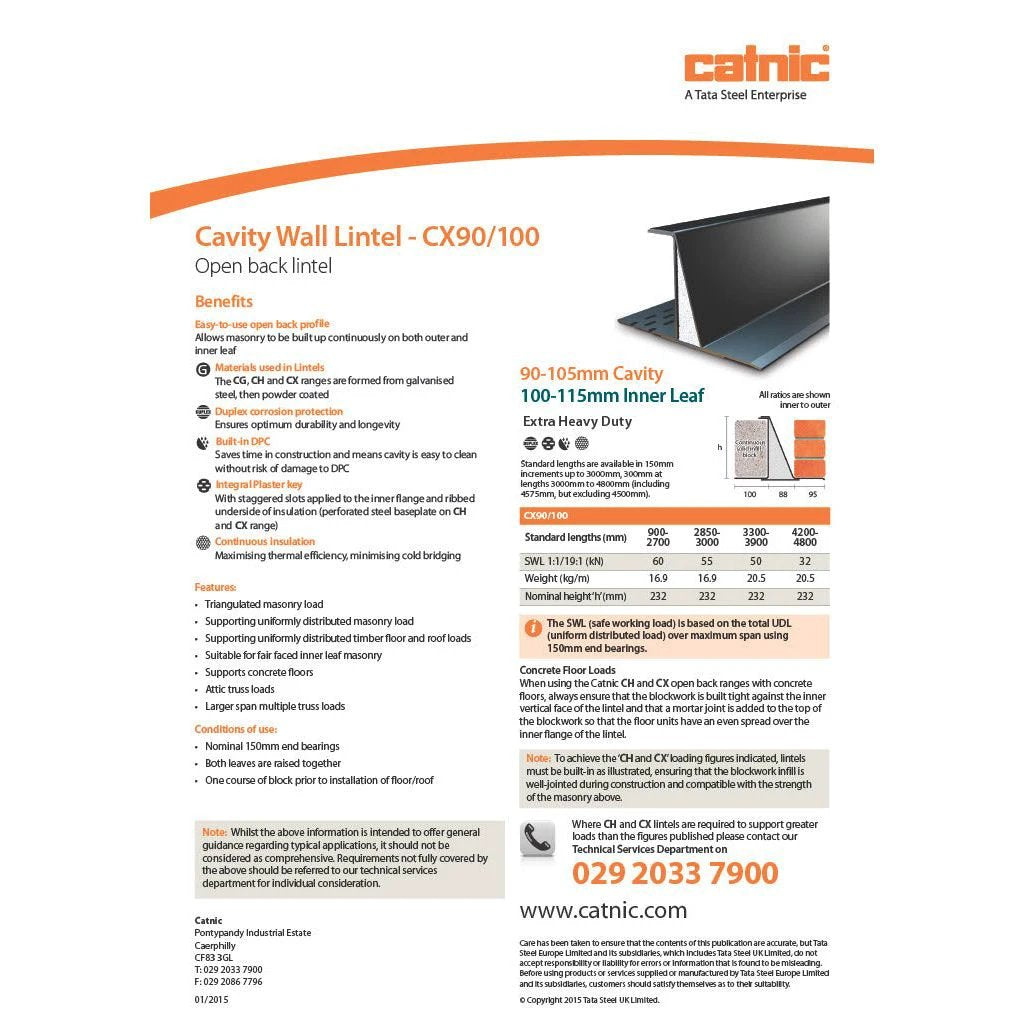

• Datasheet

Versatile Load-Bearing Capabilities

The Catnic CX90/100 is designed to accommodate a wide range of loads and structural requirements:

• Triangulated Masonry Loads: Supports triangulated masonry loads, ensuring consistent stability in complex structures.
• Uniformly Distributed Loads: Capable of bearing uniformly distributed loads for masonry, timber flooring, and roofing, adding versatility to project design.
• Fair-Faced Inner Leaf Masonry: Suited for projects requiring a fair-faced finish on inner leaf masonry, enhancing aesthetic appeal.
• Concrete Floor Support: This lintel provides robust support for concrete floors, allowing for adaptable construction options.
• Attic Trusses and Span Loads: Specifically designed to support attic trusses and large-span, multiple-truss configurations, broadening its application range in large-scale projects.

Specifications and Conditions of Use

• Available Lengths: The Catnic CX90/100 lintel is available in multiple lengths, ranging from 900mm to 3600mm, to accommodate various project requirements.
• Nominal 150mm End Bearings: For optimal load distribution and stability, ensure nominal 150mm end bearings are used during installation.
• Simultaneous Leaf Elevation: Designed for simultaneous elevation of both masonry leaves, simplifying the installation process.
• Pre-Installation Block Course: To maximize performance, include a block course prior to installing floor or roof components.

For technical assistance, our knowledgeable support team at Catnic Technical Support is ready to guide you through every step. Elevate your construction projects with the Catnic CX90/100 Lintel – where strength, durability, and efficiency converge for exceptional results.
