Catnic

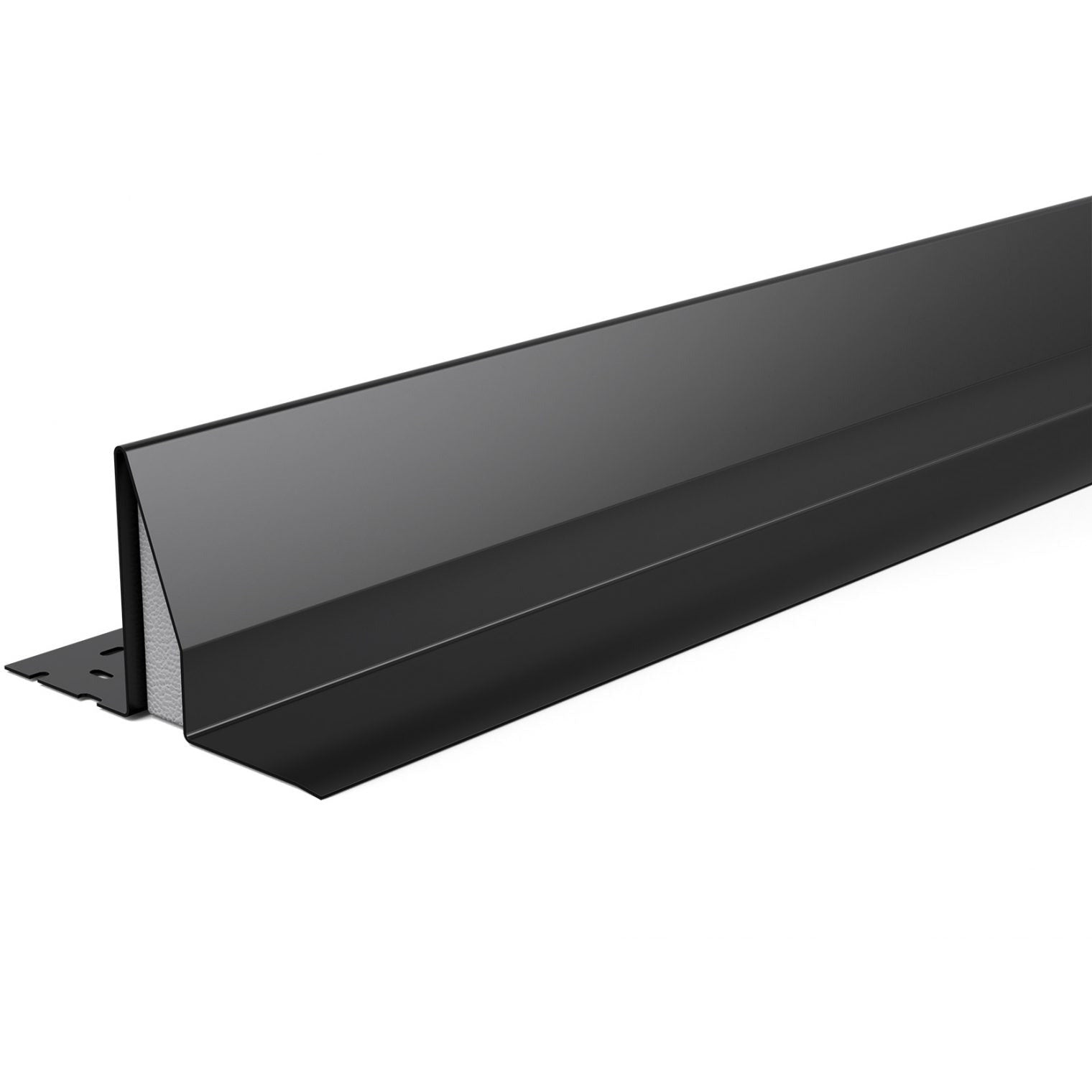

Catnic CG50/100 50mm Cavity Wall Lintel

£104.00
Steel cavity lintel for 50–65mm cavities. Galvanised with built-in DPC and insulation. Supports up to 15kN. For domestic and light commercial use.

Delivery charges will vary depending on your location.

To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode

We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

Catnic CG50/100 50mm Cavity Wall Lintel is a galvanised steel lintel built for cavity wall constructions with cavity widths between 50mm and 65mm. It supports brick and block leaves of 100–115mm and 100–102mm respectively.

Designed for standard duty applications, it offers high structural reliability with built-in damp-proof course (DPC), integral plaster key, and insulation. At 1200mm, it supports 15kN and weighs approximately 7320g, making it ideal for domestic and light commercial builds.

Key Features

  • Galvanised steel construction with duplex corrosion protection
  • Fits 50–65mm cavity widths; inner leaf 100–115mm, outer leaf 100–102mm
  • Built-in DPC and continuous insulation
  • Integral plaster key for internal finish adhesion
  • Open back profile for ease of installation
  • Manufacturer: Catnic
  • Safe Working Load (SWL): 15kN at 1200mm
  • Approx. weight: 7.32kg

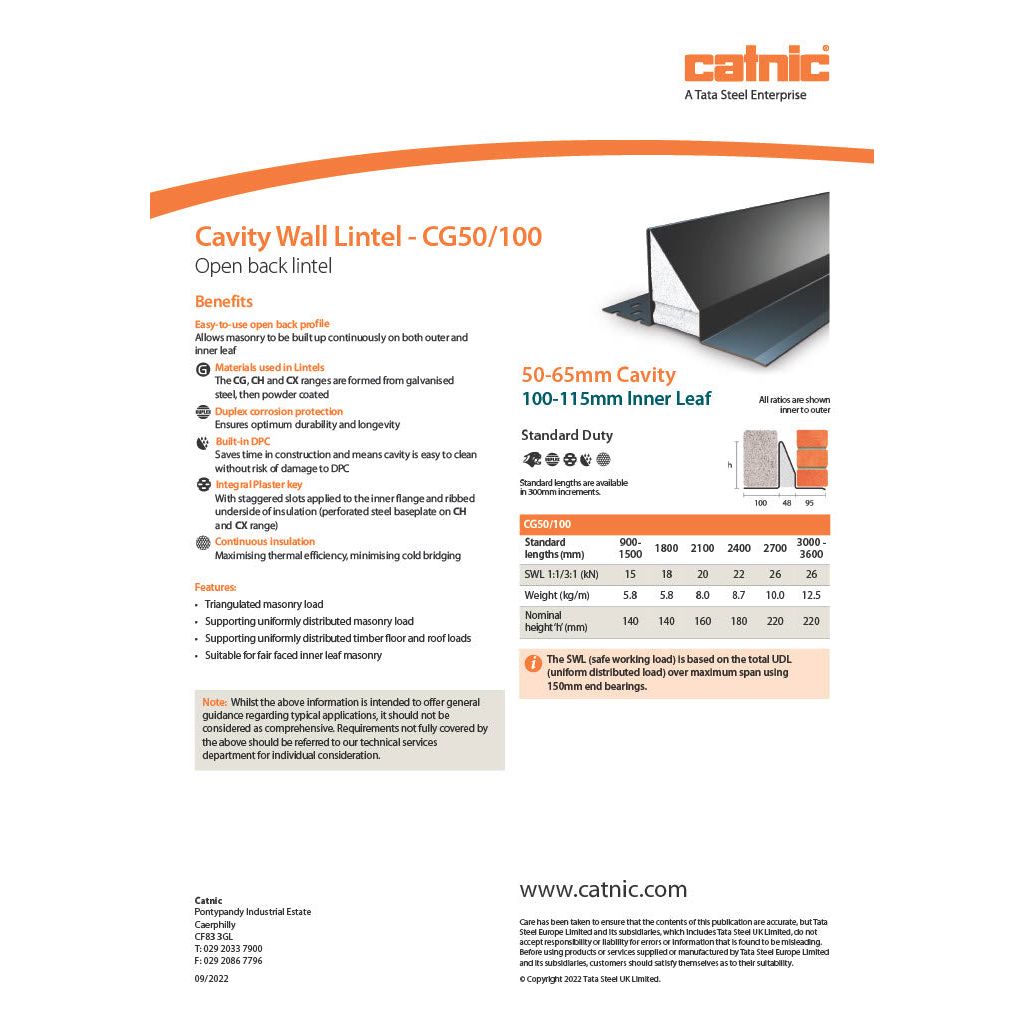

  • Datasheet
  • Available lengths: 900mm to 3600mm

Description

Catnic CG50/100 50mm Cavity Wall Lintel is a galvanised steel lintel built for cavity wall constructions with cavity widths between 50mm and 65mm. It supports brick and block leaves of 100–115mm and 100–102mm respectively.

Designed for standard duty applications, it offers high structural reliability with built-in damp-proof course (DPC), integral plaster key, and insulation. At 1200mm, it supports 15kN and weighs approximately 7320g, making it ideal for domestic and light commercial builds.

Key Features

  • Galvanised steel construction with duplex corrosion protection
  • Fits 50–65mm cavity widths; inner leaf 100–115mm, outer leaf 100–102mm
  • Built-in DPC and continuous insulation
  • Integral plaster key for internal finish adhesion
  • Open back profile for ease of installation
  • Manufacturer: Catnic
  • Safe Working Load (SWL): 15kN at 1200mm
  • Approx. weight: 7.32kg
  • Datasheet
  • Available lengths: 900mm to 3600mm

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

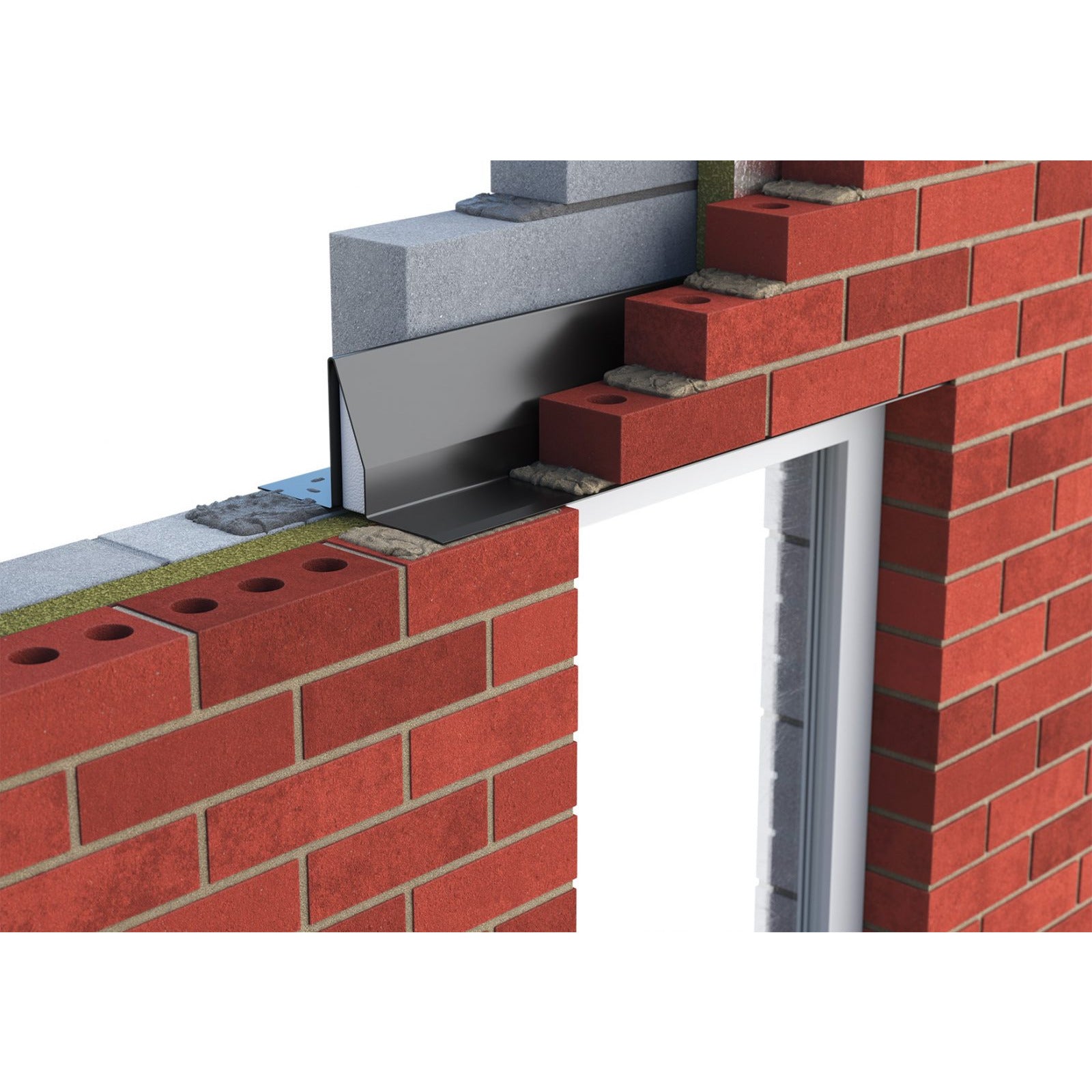

Built for Cavity Wall Applications

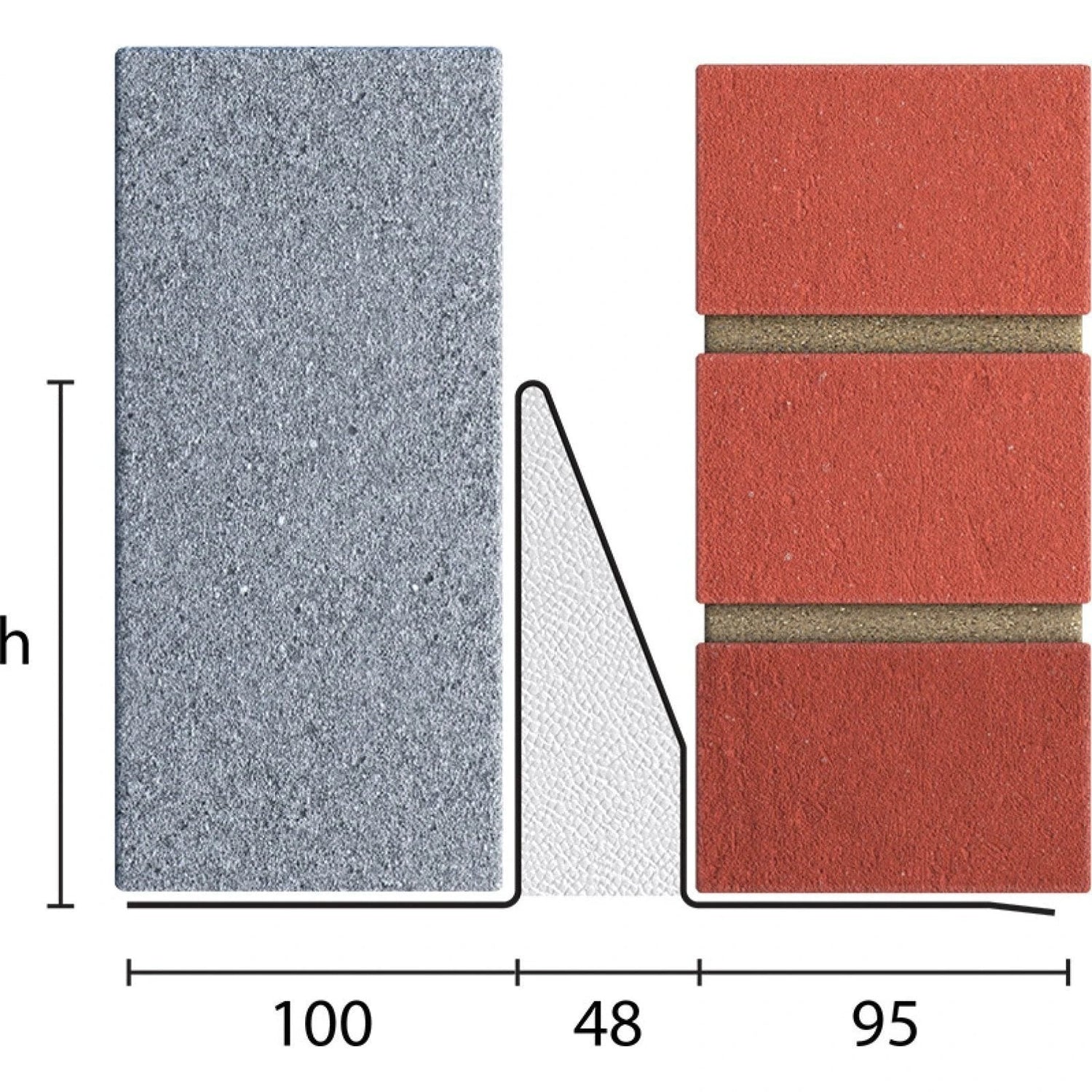

The Catnic CG50/100 is designed for use in cavity wall builds with cavity widths between 50mm and 65mm. Its dimensions make it compatible with inner leaves of 100–115mm and outer leaves of 100–102mm, making it ideal for standard residential walls.
The open back profile simplifies handling and placement on-site. It is suitable for window and door openings where reliable structural support is required.

Rated for Structural Loads

This lintel supports safe working loads up to 15kN at 1200mm span, with options up to 26kN for larger lengths. These ratings meet typical domestic requirements while providing load consistency across cavity spans.

Durable & Protected Finish

The CG50/100 includes a duplex corrosion-resistant coating, making it suitable for damp-prone or exposed environments. Built-in DPC ensures water penetration is minimised along the cavity line.

Insulated and Installation-Ready

Continuous insulation is integrated into the lintel body to help reduce thermal bridging. The integral plaster key allows for a flush interior wall finish after installation.

Trusted Steelwork from Catnic

Catnic, a Tata Steel enterprise, is a UK leader in structural components. The CG50/100 lintel is part of their standard duty range and meets modern performance and ease-of-use standards.
