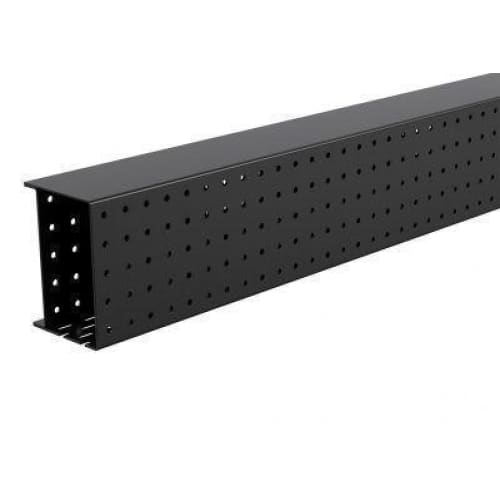

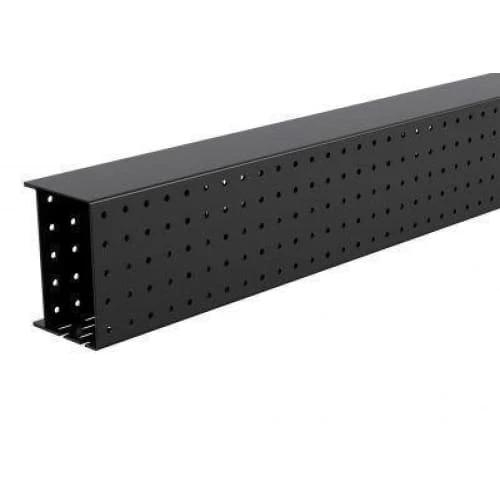

Catnic BHD100 Box Lintel Internal Wall Heavy Duty is a galvanised steel lintel designed for heavy duty internal wall applications. Built to support solid single-leaf internal or external walls, it provides full structural loading at installation. The staggered slot pattern across its underside forms an integral plaster key, reducing heat loss and improving finish quality.
Available in spans from 750mm to 4800mm, this lintel weighs approximately 30,820g at 3000mm and offers superior long-term performance thanks to its powder-coated, corrosion-resistant finish.
Key Features
Supports single-leaf solid internal or external walls
We will contact you once the order is placed to confirm the brand that will be supplied.
Alternatively, please get in touch by phone or live chat before ordering if a specific brand is supplied.
Catnic
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
4200mm
4575mm
4800mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Downloadable information can be found here:
Catnic BHD100 Box Lintel Internal Wall Heavy Duty is a galvanised steel lintel designed for heavy duty internal wall applications. Built to support solid single-leaf internal or external walls, it provides full structural loading at installation. The staggered slot pattern across its underside forms an integral plaster key, reducing heat loss and improving finish quality.
Available in spans from 750mm to 4800mm, this lintel weighs approximately 30,820g at 3000mm and offers superior long-term performance thanks to its powder-coated, corrosion-resistant finish.
Key Features
Supports single-leaf solid internal or external walls
We will contact you once the order is placed to confirm the brand that will be supplied.
Alternatively, please get in touch by phone or live chat before ordering if a specific brand is supplied.
Catnic
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
4200mm
4575mm
4800mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online. The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days.
Please get in touch before you order if you need a specific delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page. Some orders are delivered on our vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations, we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Catnic BHD100 Box Lintel Internal Wall Heavy Duty - 750mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
Catnic BHD100 Box Lintel Internal Wall Heavy Duty is a galvanised steel lintel designed for heavy duty internal wall applications. Built to support solid single-leaf internal or external walls, it provides full structural loading at installation. The staggered slot pattern across its underside forms an integral plaster key, reducing heat loss and improving finish quality.
Available in spans from 750mm to 4800mm, this lintel weighs approximately 30,820g at 3000mm and offers superior long-term performance thanks to its powder-coated, corrosion-resistant finish.
Key Features
Supports single-leaf solid internal or external walls
Catnic BHD100 Box Lintel Internal Wall Heavy Duty is a galvanised steel lintel designed for heavy duty internal wall applications. Built to support solid single-leaf internal or external walls, it provides full structural loading at installation. The staggered slot pattern across its underside forms an integral plaster key, reducing heat loss and improving finish quality.
Available in spans from 750mm to 4800mm, this lintel weighs approximately 30,820g at 3000mm and offers superior long-term performance thanks to its powder-coated, corrosion-resistant finish.
Key Features
Supports single-leaf solid internal or external walls
We will contact you once the order is placed to confirm the brand that will be supplied.
Alternatively, please get in touch by phone or live chat before ordering if a specific brand is supplied.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Built for Internal Support

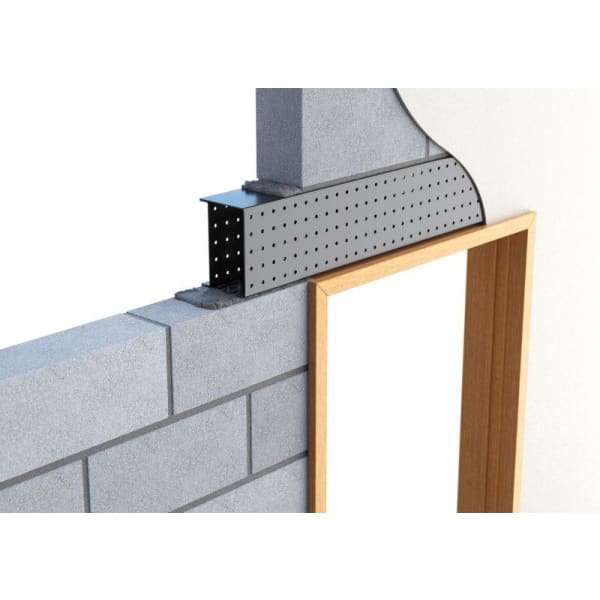

The Catnic BHD100 lintel supports internal wall constructions with high load demands. It provides immediate structural support for wet masonry, removing the need for propping or delayed construction.
Its box profile adds rigidity and strength across long spans, making it ideal for solid single-leaf walls where durability and load performance are essential.
Engineered to Heavy Duty Standards
Designed to handle full masonry loads, the BHD100 lintel complies with BS EN 845-2. The heavy-duty box section resists bending, even under prolonged compressive pressure.
Resistant and Reliable
Each lintel is finished with a corrosion-resistant galvanised coating and a tough powder coat for additional durability. This duplex system extends its lifespan, even in variable site conditions.
Span and Weight Details
Lintels are available in sizes from 750mm to 4800mm. A typical 3000mm unit weighs around 30.82kg (30,820g). The staggered slots on the underside form a built-in plaster key for faster finishing.
Trusted by Builders
Produced by Catnic, a Tata Steel company, the BHD100 box lintel is the industry standard for robust and reliable wall support across internal applications.
