Catnic ANG Lintel Single Leaf Steel is a standard duty lintel for angled single leaf external masonry walls. It supports spans between 900mm and 3900mm and is suitable for 100–102mm brickwork. Lintels up to 2400mm are galvanised, while 2550mm and longer are black powder-coated for enhanced weather protection.

The steel is corrosion-resistant and complies with BS EN 845-2 standards. A 3000mm length weighs approximately 21,810g and is rated for loads up to 15kN using 150mm end bearings.

Key Features

Catnic
Lintel
Trustpilot
1 11
Catnic

Catnic ANG Lintel Single Leaf Steel

£34.00
Standard duty steel lintel for angled single leaf walls. Galvanised or powder-coated by length. Load rated up to 15kN. Weight approx. 21,810g.

Catnic ANG Lintel Single Leaf Steel - 900mm is backordered and will ship as soon as it is back in stock.

Delivery charges will vary depending on your location.

To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode

We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

Catnic ANG Lintel Single Leaf Steel is a standard duty lintel for angled single leaf external masonry walls. It supports spans between 900mm and 3900mm and is suitable for 100–102mm brickwork. Lintels up to 2400mm are galvanised, while 2550mm and longer are black powder-coated for enhanced weather protection.

The steel is corrosion-resistant and complies with BS EN 845-2 standards. A 3000mm length weighs approximately 21,810g and is rated for loads up to 15kN using 150mm end bearings.

Key Features

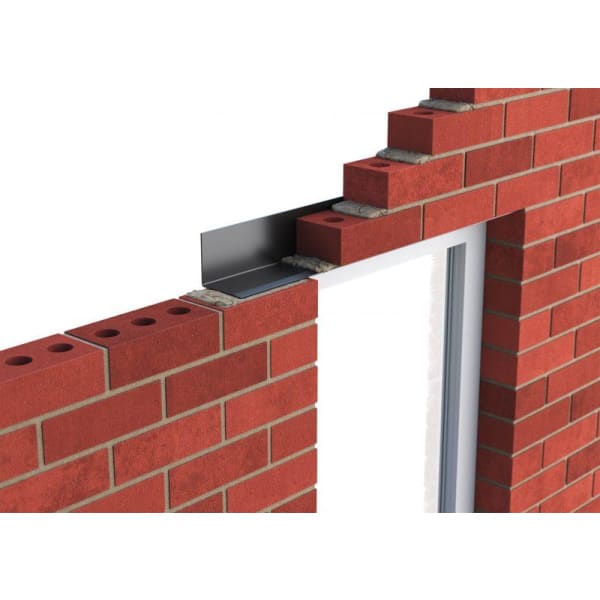

  • For angled single leaf external wall builds
  • Span range: 900mm – 3900mm

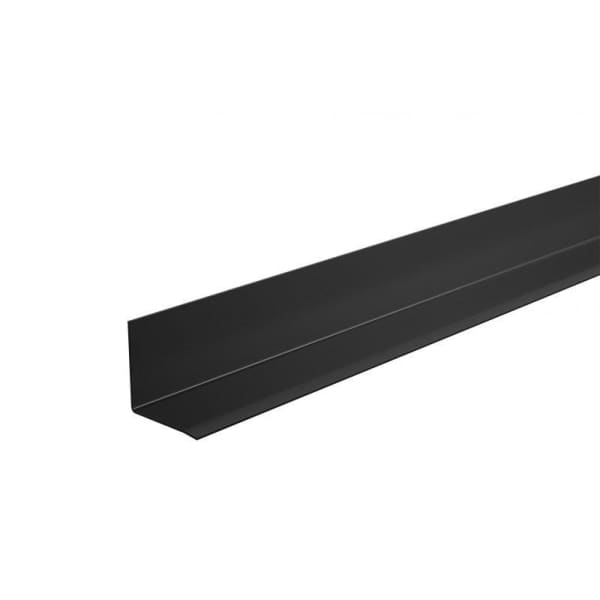

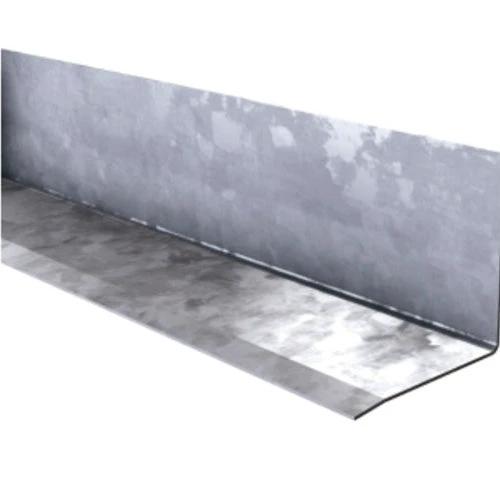

  • Galvanised finish up to 2400mm; powder-coated black 2550mm and above
  • Standard duty load rating up to 15kN

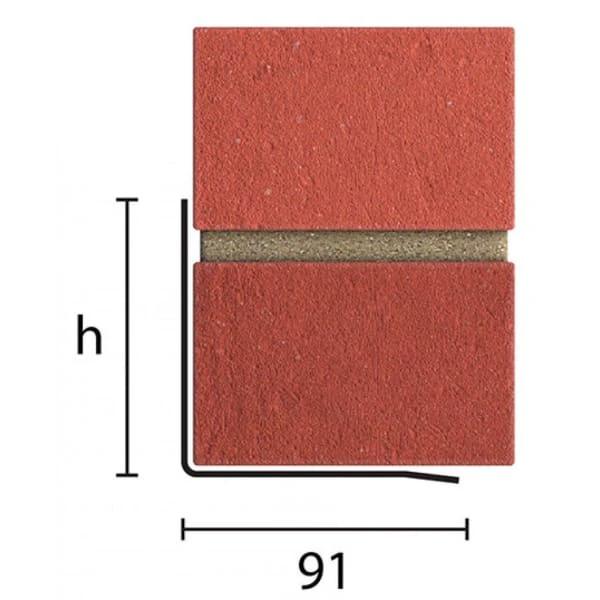

  • Compatible with 100–102mm outer leaf brickwork
  • Steel weight (3000mm): approx. 21.81g
  • BS EN 845-2 performance certified
  • Integral corrosion protection coating
  • Manufacturer: Catnic

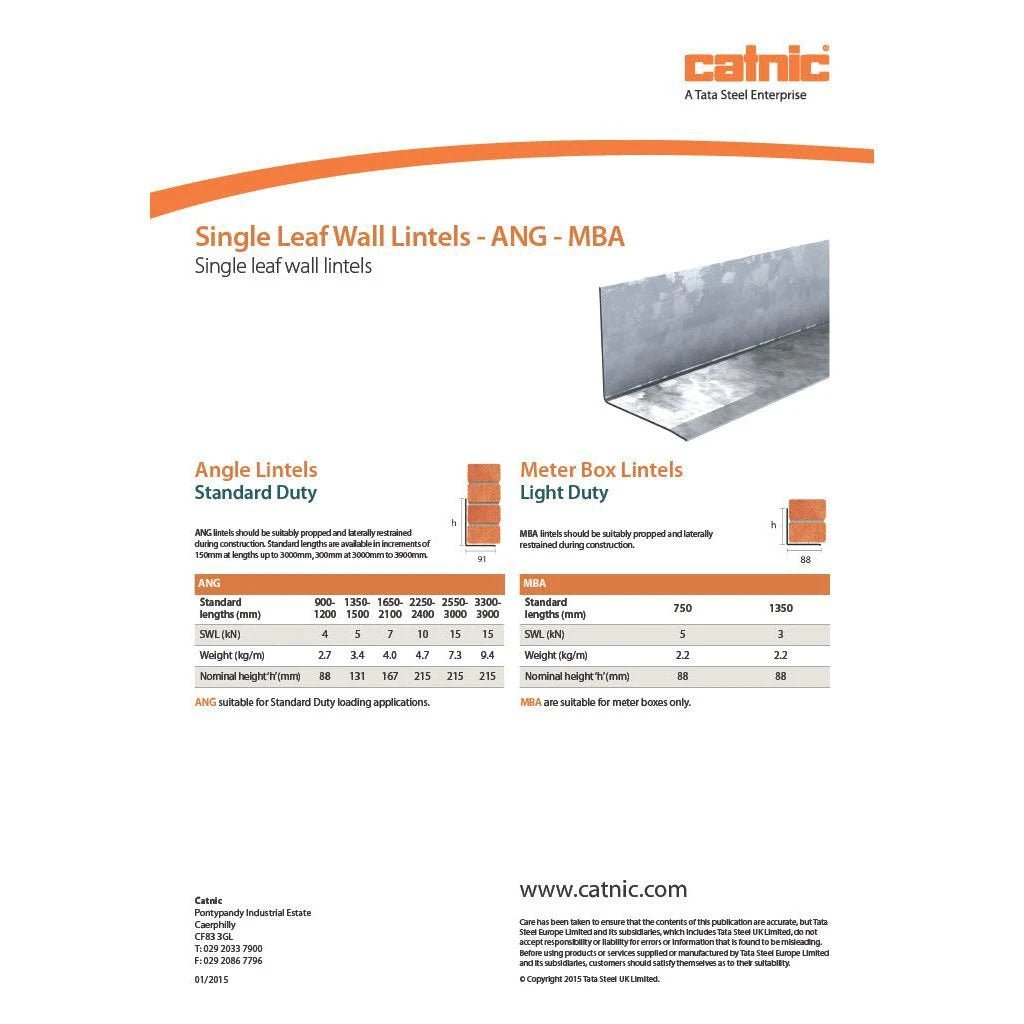

  • Datasheet

Description

Catnic ANG Lintel Single Leaf Steel is a standard duty lintel for angled single leaf external masonry walls. It supports spans between 900mm and 3900mm and is suitable for 100–102mm brickwork. Lintels up to 2400mm are galvanised, while 2550mm and longer are black powder-coated for enhanced weather protection.

The steel is corrosion-resistant and complies with BS EN 845-2 standards. A 3000mm length weighs approximately 21,810g and is rated for loads up to 15kN using 150mm end bearings.

Key Features

  • For angled single leaf external wall builds
  • Span range: 900mm – 3900mm
  • Galvanised finish up to 2400mm; powder-coated black 2550mm and above
  • Standard duty load rating up to 15kN
  • Compatible with 100–102mm outer leaf brickwork
  • Steel weight (3000mm): approx. 21.81g
  • BS EN 845-2 performance certified
  • Integral corrosion protection coating
  • Manufacturer: Catnic
  • Datasheet

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Reliable Wall Support

The Catnic ANG Lintel Single Leaf Steel is designed for structural stability in angled external wall constructions. It delivers dependable support for single leaf 100–102mm brickwork across various spans. With robust design and precise load performance, it's suitable for both domestic and commercial wall openings.

Corrosion-Resistant Finish

Catnic protects the lintel in two ways—shorter sizes are galvanised, while lintels 2550mm and longer receive a black powder-coated finish. This dual treatment helps maintain performance in different site conditions and ensures compliance with durability standards.

Strength Rated for Performance

The ANG lintel withstands loads up to 15kN with standard 150mm end bearings. It complies fully with BS EN 845-2 and supports structural integrity in masonry openings. Whether for new builds or retrofits, it maintains high performance under stress.

Lintel Weight and Sizing

Available in lengths from 900mm to 3900mm, the lintel adapts to varying wall widths. A 3000mm lintel weighs approximately 21,810g. This range enables flexible installation across a wide spectrum of cavity wall applications.

Designed by Catnic

Backed by Catnic’s reputation for engineering excellence, this lintel is produced with consistent quality assurance. It’s part of their certified product range, with structural documentation and datasheets supporting compliance on site.
