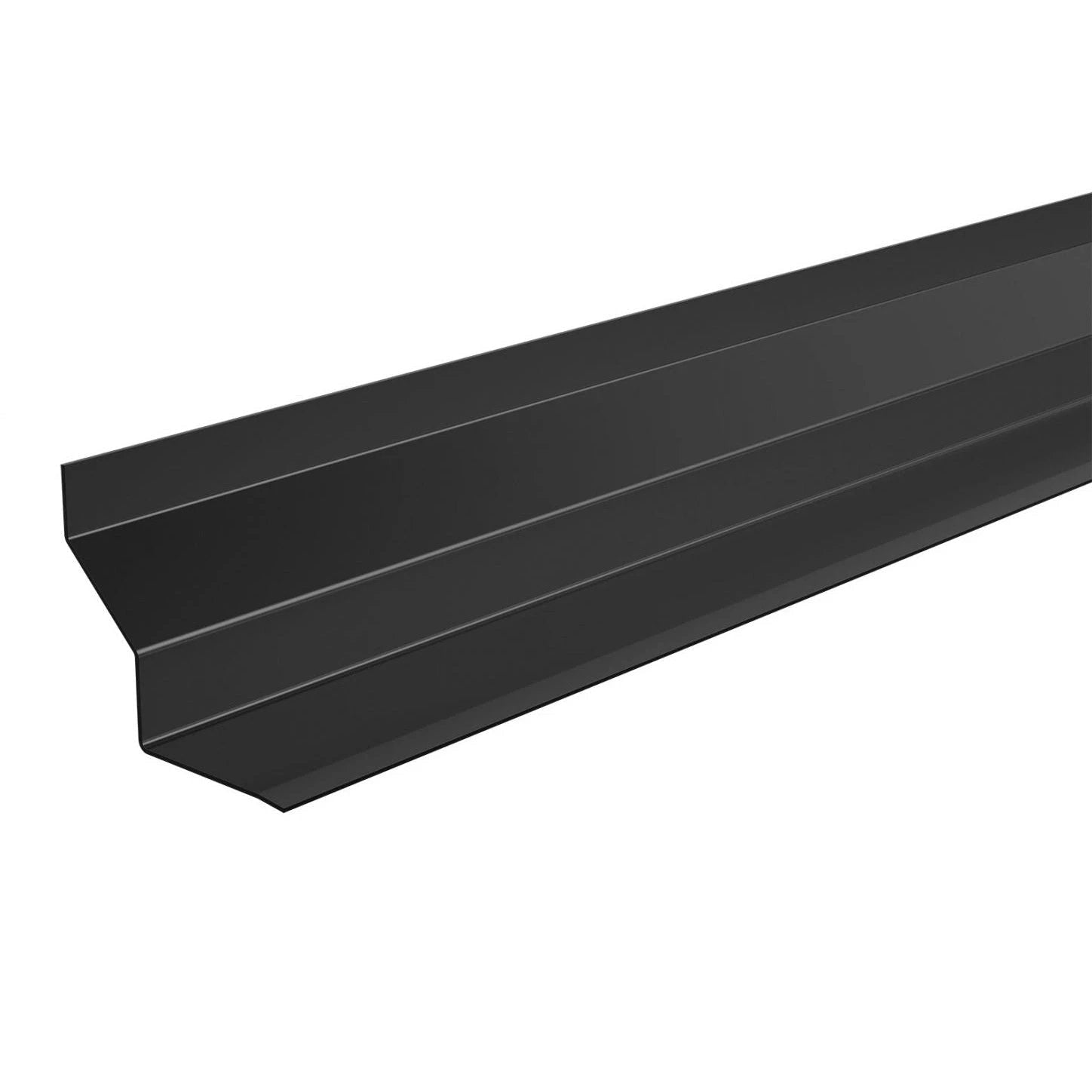

Catnic CTF5 Timber Frame Lintel 50mm Cavity

£21.00
Steel lintel for 50mm timber frame cavities. Galvanised. Load-rated. Includes restraint clips. Sizes up to 4800mm.

Delivery charges will vary depending on your location.

To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode

We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

Catnic CTF5 Timber Frame Lintel 50mm Cavity is a standard duty galvanised steel lintel designed for timber frame constructions with 50–65mm cavity widths. It suits external walls with a brick outer leaf of 100–102mm and is used in combination with timber battens and restraint clips for secure installation.

The lintel comes in lengths from 750mm to 4800mm, weighing between 2,270g and 41,950g. Nominal heights vary from 128mm to 256mm depending on size, providing robust support throughout the build.

Key Features

  • Engineered for timber frame construction with 50–65mm cavity
  • Compatible with outer leaf brickwork of 100–102mm
  • Load-bearing capacity up to 10kN depending on length
  • Includes restraint clips for added stability during build
  • Lengths from 750mm to 4800mm in 150mm and 300mm increments
  • Manufacturer: Catnic
  • Weight range: approx. 2.27kg to 41.95kg

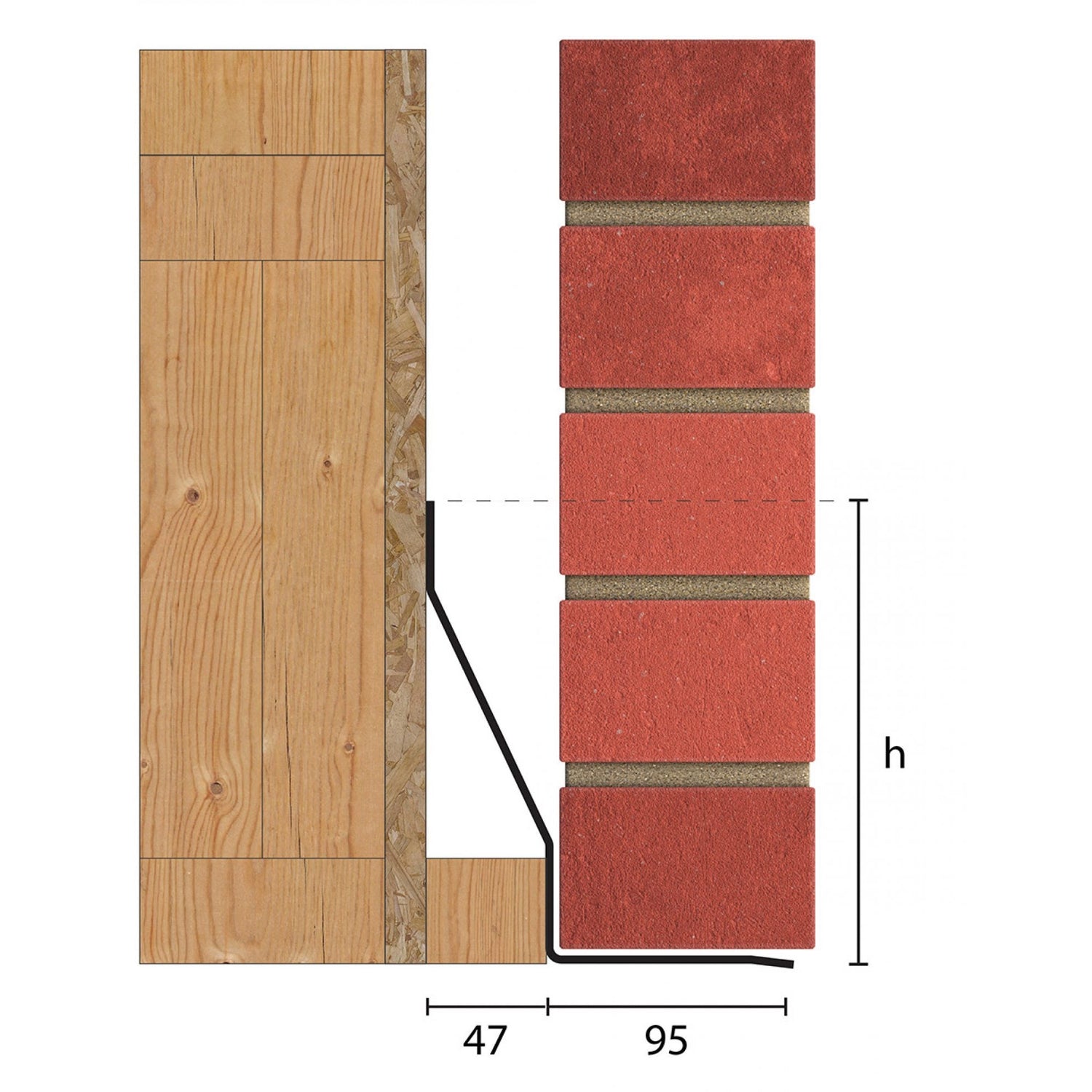

  • Nominal heights: 128mm, 183mm, or 256mm by size

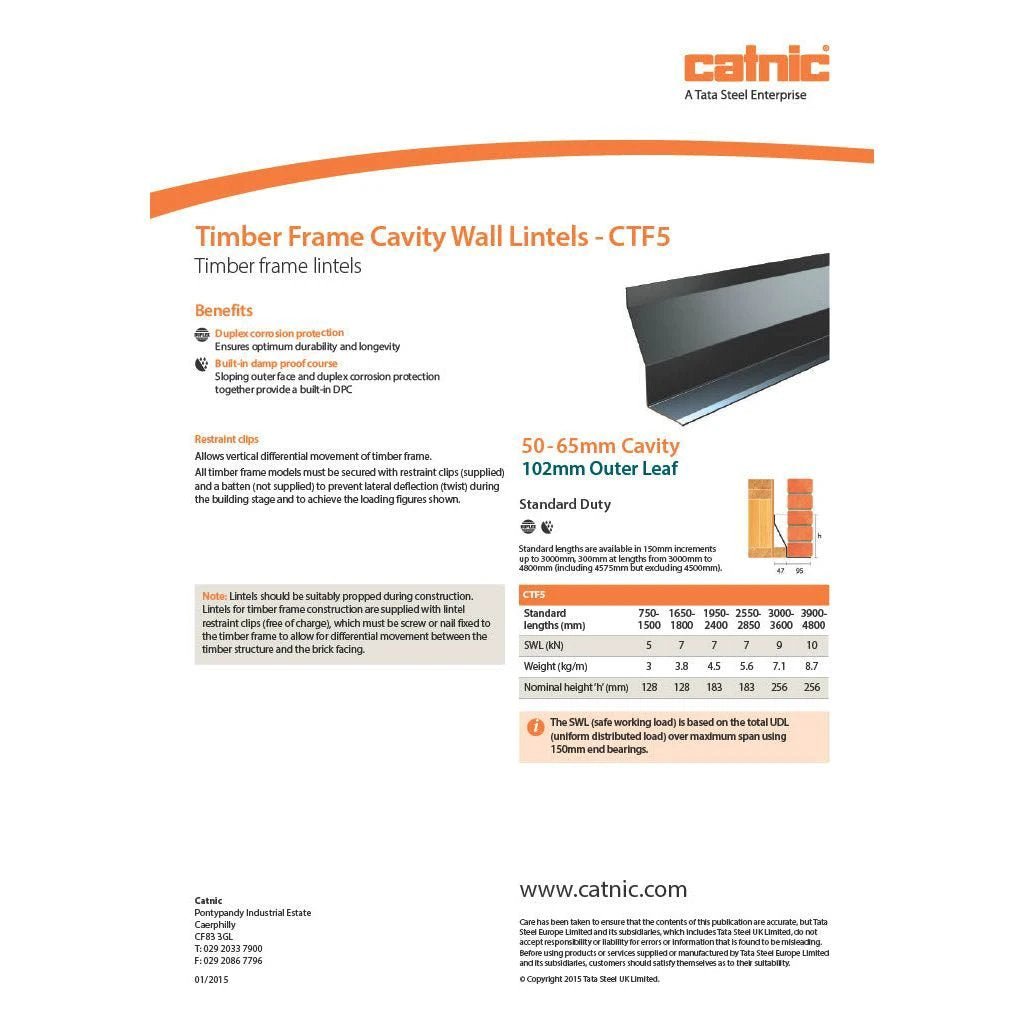

  • Datasheet

Description

Catnic CTF5 Timber Frame Lintel 50mm Cavity is a standard duty galvanised steel lintel designed for timber frame constructions with 50–65mm cavity widths. It suits external walls with a brick outer leaf of 100–102mm and is used in combination with timber battens and restraint clips for secure installation.

The lintel comes in lengths from 750mm to 4800mm, weighing between 2,270g and 41,950g. Nominal heights vary from 128mm to 256mm depending on size, providing robust support throughout the build.

Key Features

  • Engineered for timber frame construction with 50–65mm cavity
  • Compatible with outer leaf brickwork of 100–102mm
  • Load-bearing capacity up to 10kN depending on length
  • Includes restraint clips for added stability during build
  • Lengths from 750mm to 4800mm in 150mm and 300mm increments
  • Manufacturer: Catnic
  • Weight range: approx. 2.27kg to 41.95kg
  • Nominal heights: 128mm, 183mm, or 256mm by size
  • Datasheet

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Built for Timber Frame Systems

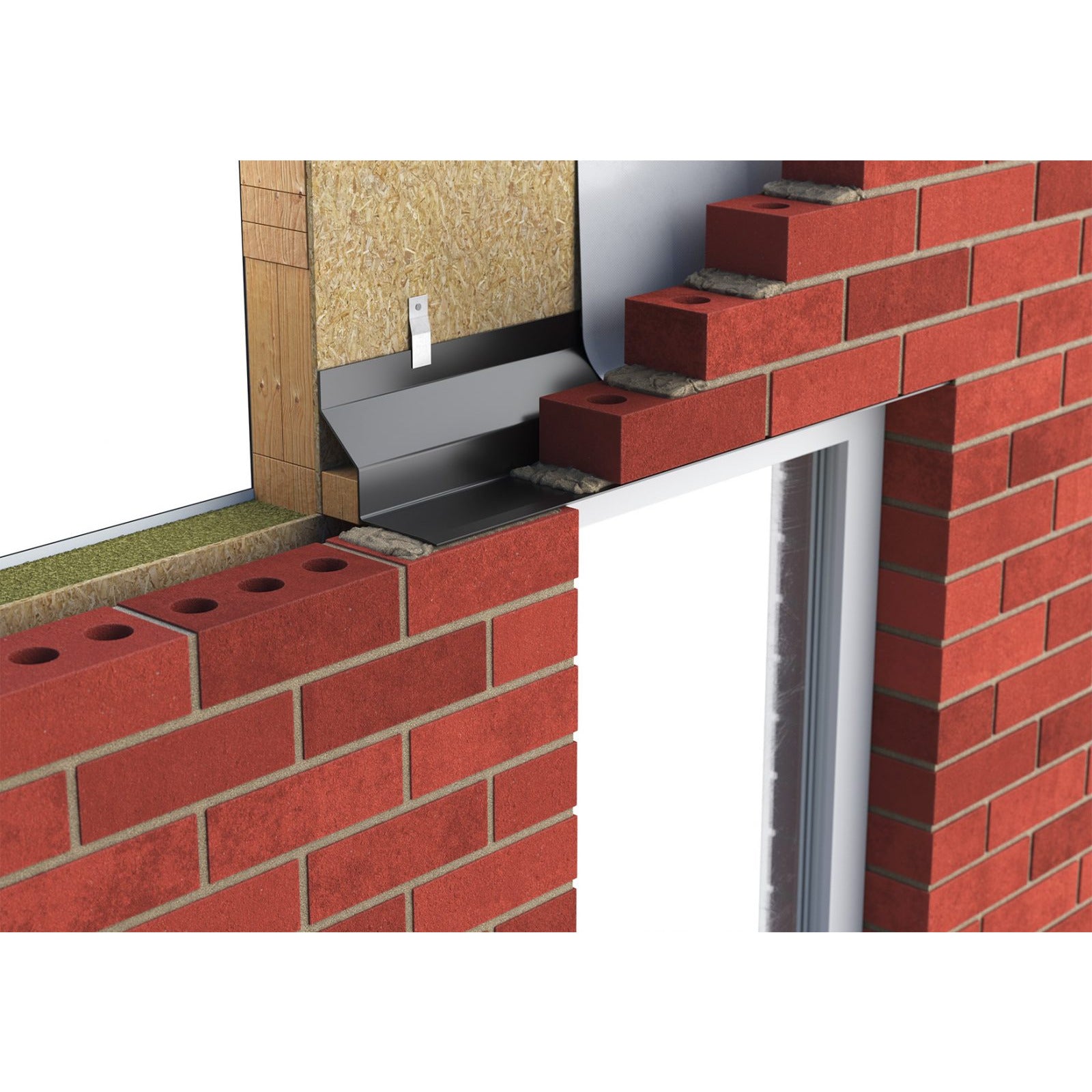

The Catnic CTF5 lintel is purpose-built for timber-framed buildings with a 50mm cavity. It supports outer brickwork between 100–102mm and includes restraint clips for secure installation.
Its shape and strength offer structural stability across a range of residential timber frame designs, helping simplify installation and load distribution.

Range of Sizes for Flexibility


Available in 150mm increments up to 3000mm, and 300mm steps beyond that, the CTF5 adapts easily to wall openings from 750mm to 4800mm.

Engineered to Last


Constructed from galvanised steel, the lintel resists corrosion even in exposed environments. It holds its structural integrity during and after construction.

Support and Restraint Included


Each lintel includes specially designed restraint clips to help stabilise the structure during building. These prevent lateral movement and twisting.

Performance for Every Project


The CTF5 supports loads of up to 10kN, depending on length and height. It complies with all key structural standards for timber builds.
