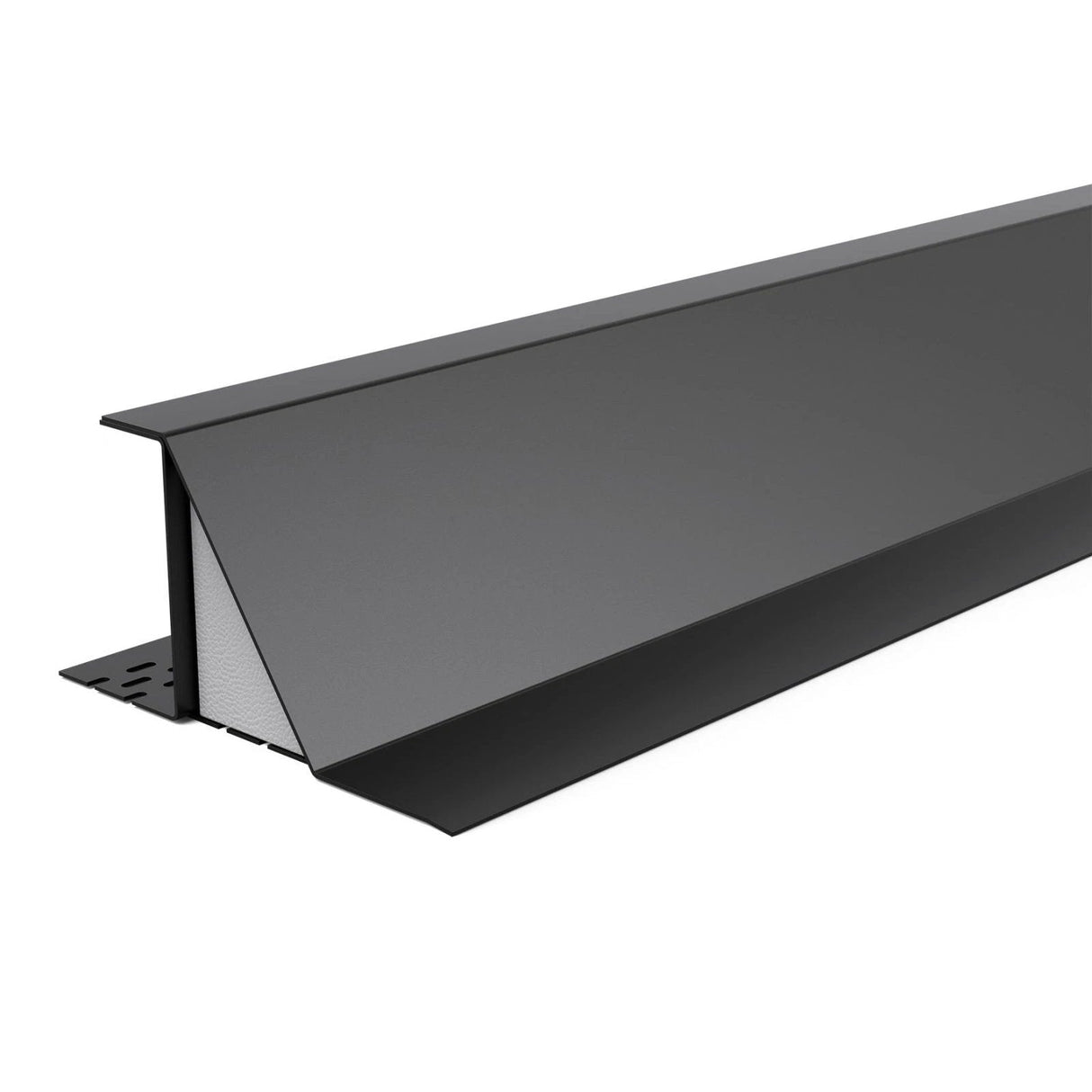

Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.

Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.

Key Features

Catnic
Lintel
Trustpilot
1 8
Catnic

Catnic CH110/100 110mm Cavity Wall Lintel

£101.00
Heavy duty lintel for 110–125mm cavities. Galvanised. 48kN load capacity. For concrete floors and structural builds.

Catnic CH110/100 110mm Cavity Wall Lintel - 900mm is backordered and will ship as soon as it is back in stock.

Delivery charges will vary depending on your location.

To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode

We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.

Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.

Key Features

  • Heavy duty galvanised steel construction
  • Supports 110–125mm cavity widths
  • Load rated up to 48kN for reinforced strength
  • Designed for block and concrete flooring loads
  • Manufacturer: Catnic
  • Weight: 10,910g to 34.92kg based on lintel length
  • Available in 150mm increments up to 2400mm

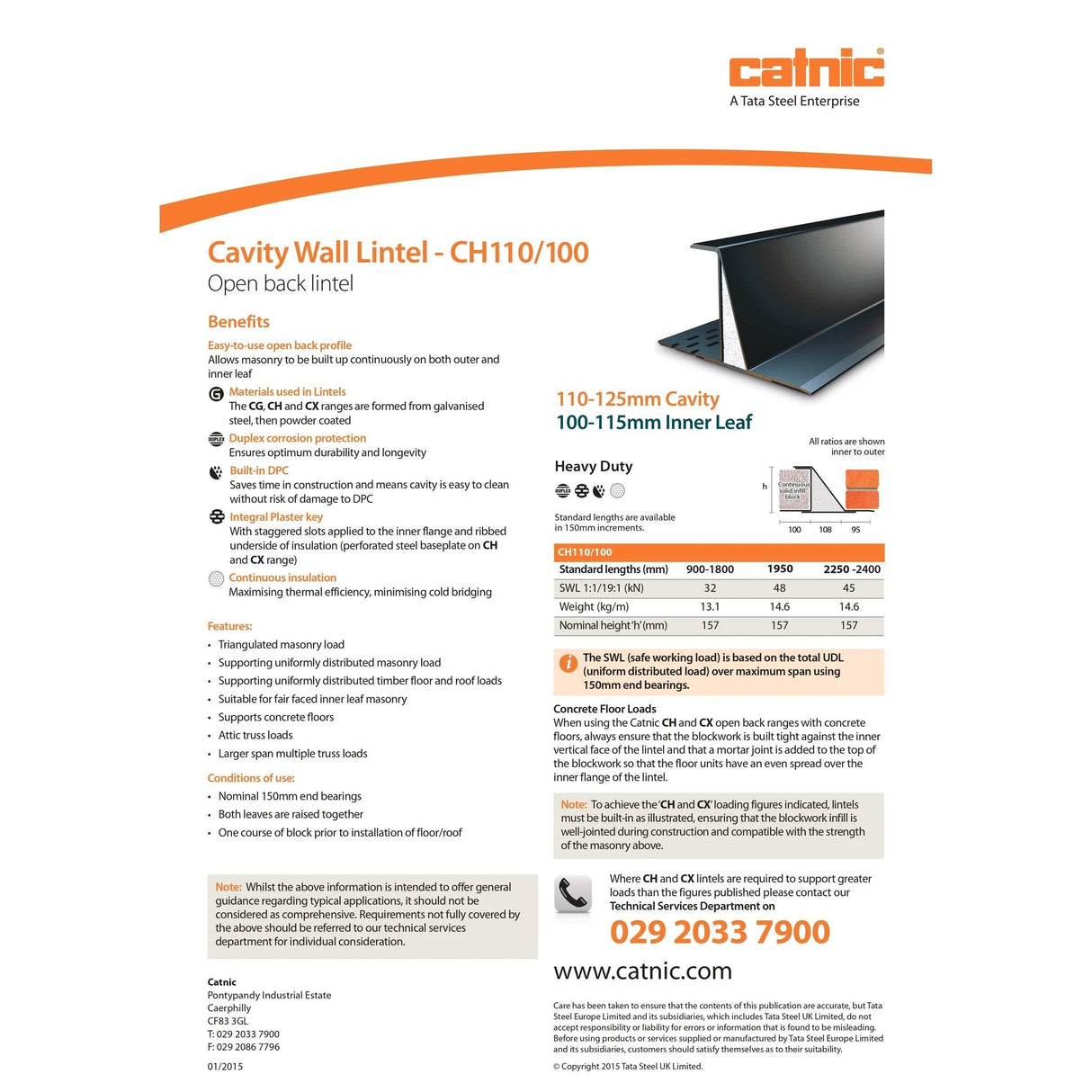

  • Datasheet

Description

Catnic CH110/100 110mm Cavity Wall Lintel is a galvanised heavy duty steel lintel built for cavity wall construction with a cavity range of 110mm to 125mm. It supports inner masonry leaves of 100–115mm and outer leaves of 100–102mm.

Engineered for high load applications, it suits structural and multi-storey use. Available in spans from 900mm to 2400mm. Each unit weighs approximately 10,910g to 34,920g depending on size.

Key Features

  • Heavy duty galvanised steel construction
  • Supports 110–125mm cavity widths
  • Load rated up to 48kN for reinforced strength
  • Designed for block and concrete flooring loads
  • Manufacturer: Catnic
  • Weight: 10,910g to 34.92kg based on lintel length
  • Available in 150mm increments up to 2400mm
  • Datasheet

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Built for Heavy Loads

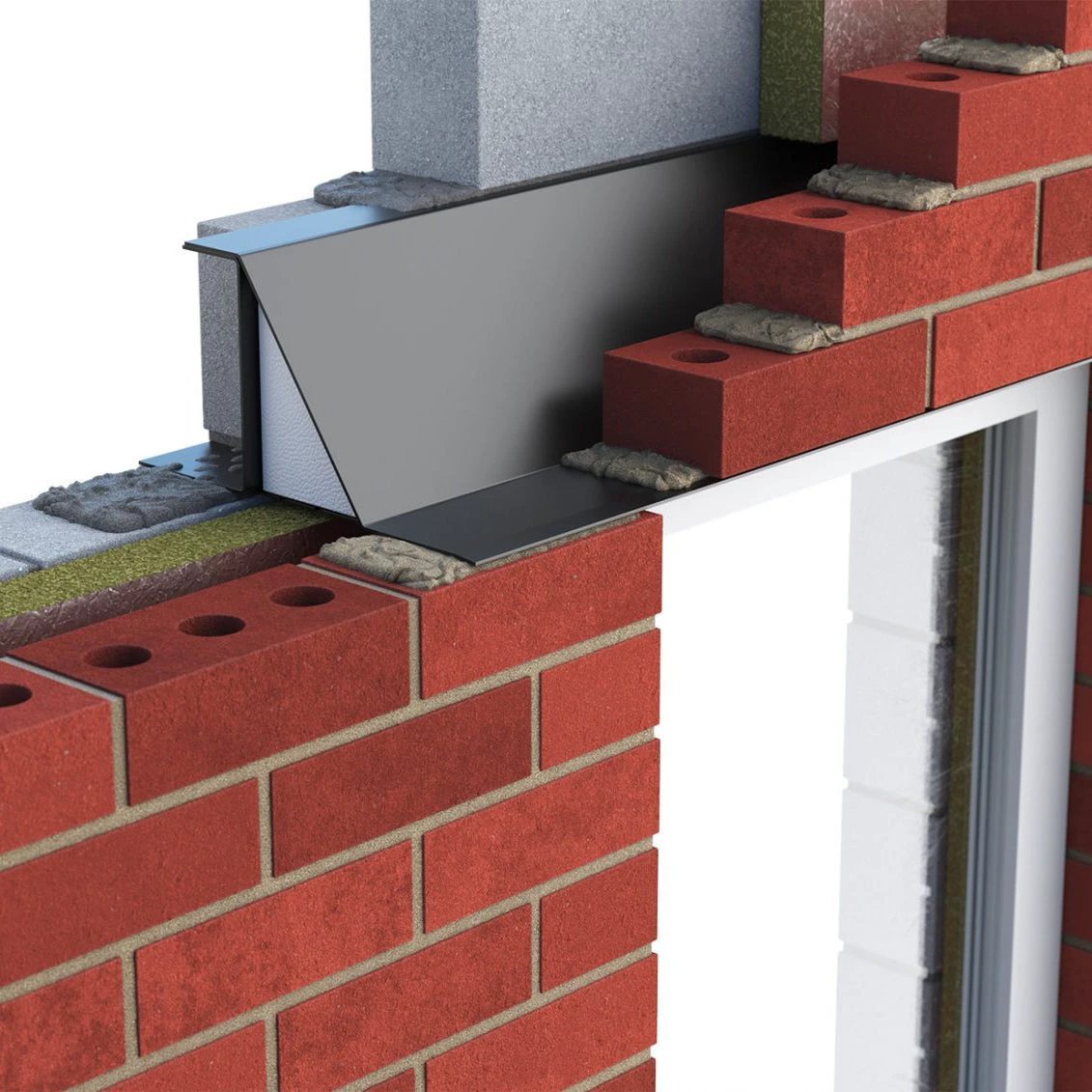

The Catnic CH110/100 lintel is a heavy-duty structural solution tailored for cavity walls with wider cavities and higher load demands. It handles significant uniform distributed loads with ease.
This model is ideal for concrete floor support, meeting engineering demands in larger domestic or commercial structures where standard duty lintels fall short.

Designed for Wider Cavities

This lintel is configured for cavity walls with a 110–125mm gap, supporting both masonry leaves with optimal load distribution.

Strength and Safety Combined

With a maximum safe working load (SWL) of 48kN, this Catnic lintel suits applications with higher structural stresses or larger openings.

Precision in Fabrication

Each unit is made from galvanised steel with a nominal height of 158mm, offering corrosion protection and consistency across sizes.

Catnic Confidence

Backed by Catnic’s reputation in British lintel manufacturing, the CH110/100 is a trusted solution in multi-storey, concrete-bearing construction.
