Birtley SB140HDX Extra Heavy Duty – Single Leaf Internal Wall Lintel
No reviews
£74.53
Unit price /
Unavailable
The Birtley SB140HDX is an extra heavy-duty lintel designed for 140mm single-leaf internal walls, offering superior protection and optional insulation.
Birtley SB140HDX Extra Heavy Duty – Single Leaf Internal Wall Lintel - 750
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.

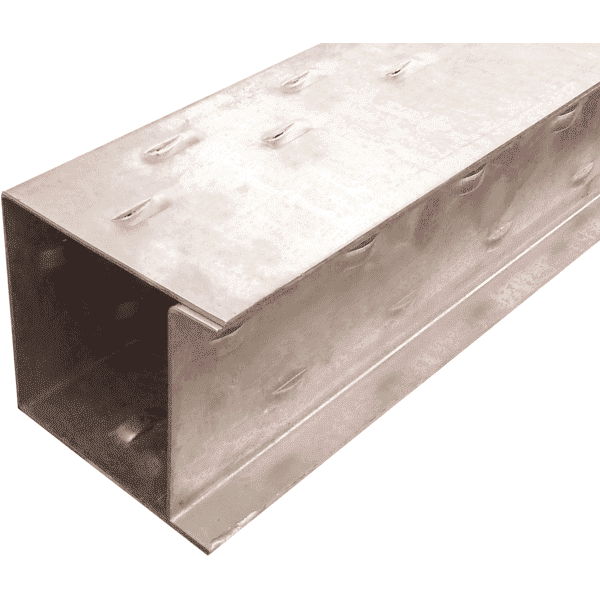

Birtley SB140HDX Extra Heavy Duty – Single Leaf Internal Wall Lintel
The Birtley SB140HDX is an extra heavy-duty lintel designed for single-leaf internal walls with a cavity of 140mm. It is suitable for load-bearing internal block walls that are plastered.
This lintel is hot-dip galvanized after fabrication, providing up to 50% more zinc protection than other approved coatings. It offers the option for insulation and is rated for 60 minutes of fire resistance with a two-coat plaster finish.
Technical Specifications

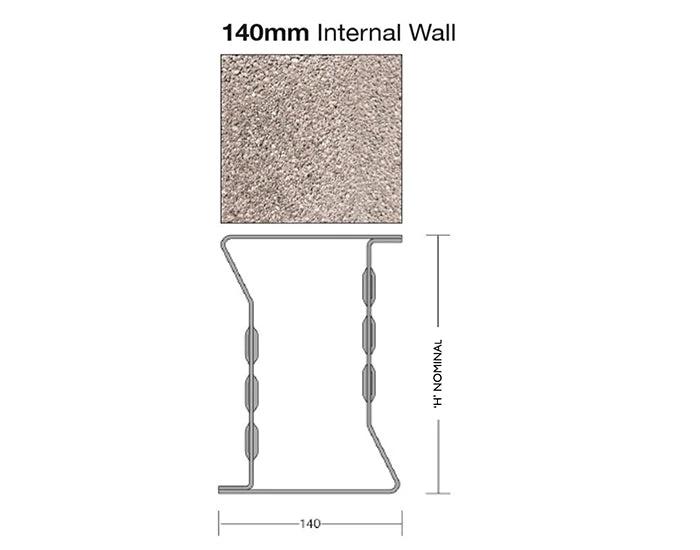

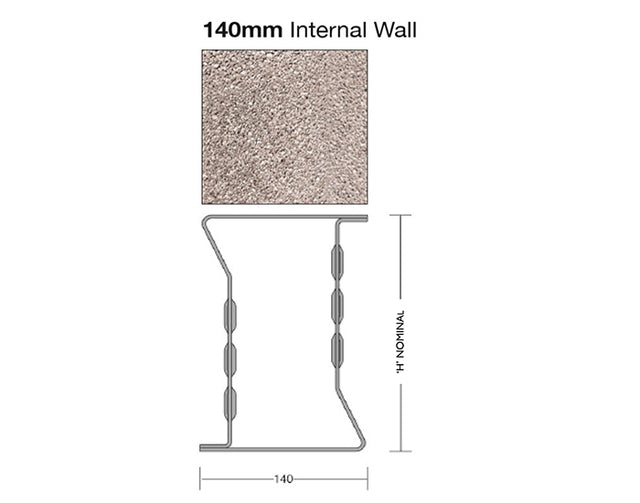

- Cavity Width: 140mm
- Material: Mild Steel S275JR to BS EN10025-2:2004
- Coating: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
- Fire Rating: 60 minutes (with 2 coat plaster finish)
Length Options: 750mm to 5100mm
Features
- Supergalv coating offers superior life expectancy.
- Post-fabrication galvanizing leaves no surface with inferior paint protection.
- Structural grade steel to EN10025.
- Optional insulation available.
Installation Requirements
- Must be bedded fully on bricklaying mortar.
- Suitable for internal block walls (plastered).
- Requires a minimum end bearing of 150mm.
Why Choose Birtley?
Birtley lintels are known for their durability and superior protection against corrosion. Our post-fabrication galvanizing process ensures that every surface is protected, providing a longer lifespan for your construction projects.
