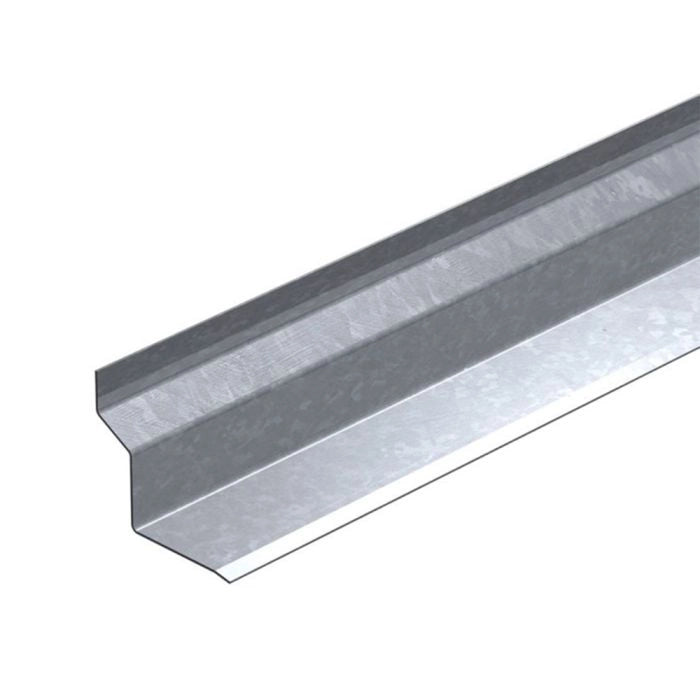

The Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD is engineered for exceptional strength and durability, making it the ideal choice for heavy-duty structural applications. Crafted from high-quality steel, this lintel offers superior load-bearing capacity, ensuring long-lasting performance in timber frame constructions. Its 50mm height provides optimal support while maintaining a sleek profile, perfect for both residential and commercial projects. Designed and manufactured in the UK, the TF50HD combines precision engineering with robust materials, delivering unmatched reliability for your building needs.
We are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings
Supergalv coating offers a superior life expectancy
Post-fabrication galvanising leaves no surface with inferior paint protection
Available in span lengths from 750mm to 4800mm.
Made from structural grade steel toEN10025

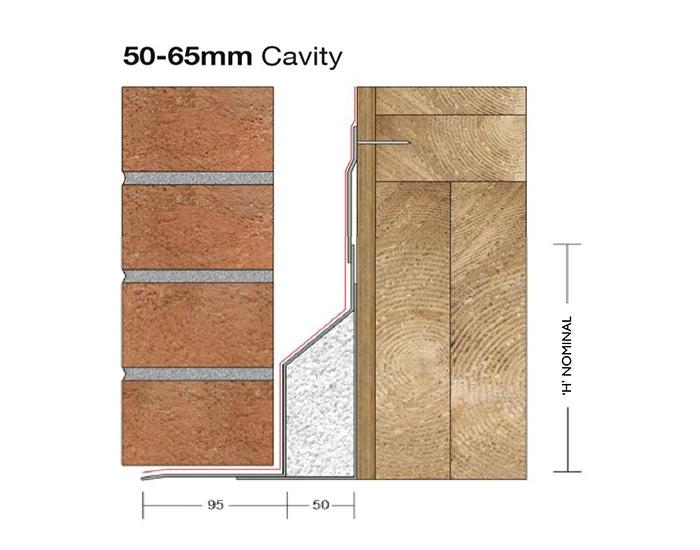

Designed for cavity walls 50–65mm
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Use lintel clips at <600mm intervals, not more than 225mm from each end
Lintels over 1200mm must be propped until masonry is fully loaded and cured.
150mm Minimum end Bearing
Birtley
Lintel
Lenght -mm
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
4200mm
4500mm
4800mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Downloadable information can be found here:
The Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD is engineered for exceptional strength and durability, making it the ideal choice for heavy-duty structural applications. Crafted from high-quality steel, this lintel offers superior load-bearing capacity, ensuring long-lasting performance in timber frame constructions. Its 50mm height provides optimal support while maintaining a sleek profile, perfect for both residential and commercial projects. Designed and manufactured in the UK, the TF50HD combines precision engineering with robust materials, delivering unmatched reliability for your building needs.
We are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings
Supergalv coating offers a superior life expectancy
Post-fabrication galvanising leaves no surface with inferior paint protection
Available in span lengths from 750mm to 4800mm.
Made from structural grade steel toEN10025
Designed for cavity walls 50–65mm
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Use lintel clips at <600mm intervals, not more than 225mm from each end
Lintels over 1200mm must be propped until masonry is fully loaded and cured.
150mm Minimum end Bearing
Birtley
Lintel
Lenght -mm
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
4200mm
4500mm
4800mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online. The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days.
Please get in touch before you order if you need a specific delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page. Some orders are delivered on our vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations, we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD
£43.00
£157.28
Unit price /
Unavailable
The Birtley TF50HD 50mm lintel is a high-strength, durable solution for timber frame walls. Made in the UK, it offers reliable performance for residential and commercial projects.
Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD - 750mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
The Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD is engineered for exceptional strength and durability, making it the ideal choice for heavy-duty structural applications. Crafted from high-quality steel, this lintel offers superior load-bearing capacity, ensuring long-lasting performance in timber frame constructions. Its 50mm height provides optimal support while maintaining a sleek profile, perfect for both residential and commercial projects. Designed and manufactured in the UK, the TF50HD combines precision engineering with robust materials, delivering unmatched reliability for your building needs.
We are the only lintel manufacturer to hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings
Supergalv coating offers a superior life expectancy
Post-fabrication galvanising leaves no surface with inferior paint protection
Available in span lengths from 750mm to 4800mm.
Made from structural grade steel toEN10025
Designed for cavity walls 50–65mm
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Use lintel clips at <600mm intervals, not more than 225mm from each end
Lintels over 1200mm must be propped until masonry is fully loaded and cured.
150mm Minimum end Bearing
Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD
The Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD is designed to handle the toughest structural demands. Its high-quality steel construction ensures it can support heavy loads without compromising stability. Whether you're working on a residential extension or a commercial build, this lintel provides the strength and reliability you need.
With a 50mm height, the TF50HD offers the perfect balance of strength and versatility. Its compact design fits seamlessly into timber frame walls, providing robust support while maintaining a clean, professional finish. This lintel is a trusted choice for builders and architects across the UK.
Precision Engineering for Reliable Performance
Every Birtley TF50HD lintel is precision-engineered to meet the highest standards of quality and performance. Manufactured in the UK using advanced techniques, this lintel ensures consistent strength and durability. Its design minimises deflection, making it a dependable solution for long-term structural integrity.
Versatile and Easy to Install
The Birtley TF50HD lintel is designed for ease of installation, saving you time and effort on-site. Its versatile design makes it suitable for a wide range of timber frame applications, from residential homes to commercial buildings. With its lightweight yet robust construction, this lintel is both practical and efficient.
Trusted by Professionals Across the UK
Builders and architects rely on the Birtley TF50HD lintel for its proven performance and durability. Made in the UK, this lintel is a testament to British engineering excellence. Its ability to withstand heavy loads and harsh conditions makes it a top choice for professionals in the construction industry.
Why Choose the Birtley TF50HD Lintel?
The Birtley Heavy Timber Frame Wall Lintel 50mm TF50HD stands out for its strength, durability, and ease of installation. Designed and manufactured in the UK, it offers unmatched reliability for your building projects. Whether you're tackling a small renovation or a large-scale construction, this lintel delivers the performance you need.
