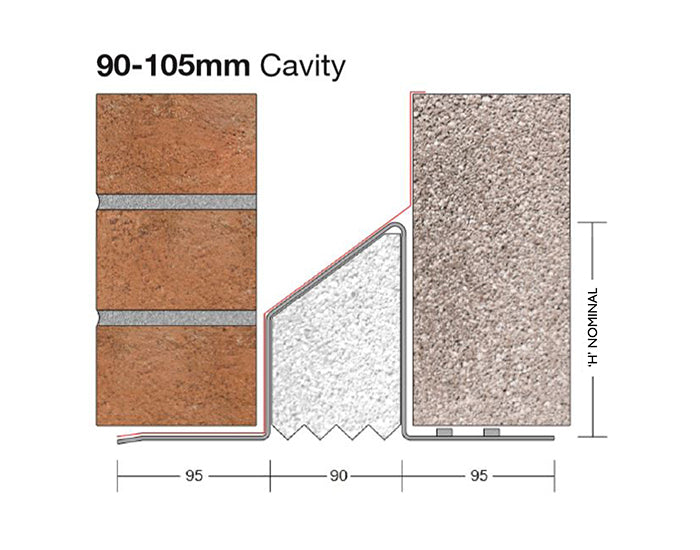

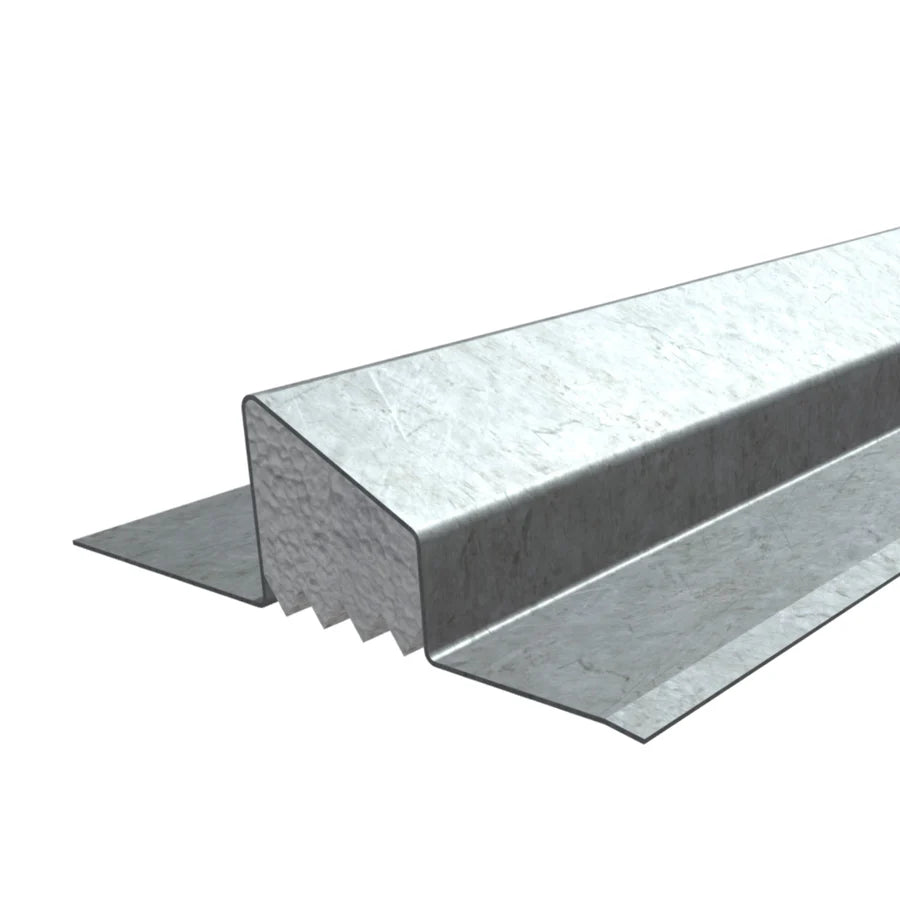

The Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD is engineered for superior performance in cavity wall constructions. Designed for cavities between 90-105mm, this lintel features a 100mm outer and inner leaf, making it ideal for medium-duty applications. With a 60-minute fire rating and compliance with BS EN845-2:2013+A1:2016, it combines strength, safety, and reliability. The absence of a baseplate and factory-fitted insulation reduces thermal bridging, while the Supergalv coating extends its lifespan. Trusted by professionals, the Birtley CB90HD lintel is a top choice for robust and efficient cavity wall solutions.
Unique hot-dip galvanisation after fabrication, providing up to 50% more zinc protection than other approved coatings
Available in span lengths from 750mm to 3000mm.
Cavity: 90-105mm
Outer Leaf: 100mm
Inner Leaf: 100mm
Length
L (kN)
W (kg/m)
H (mm)
750-1500
36
10.1
141
1650-2100
36
14
193
2250-3000
36
14.4
201
Birtley
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Downloadable information can be found here:
The Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD is engineered for superior performance in cavity wall constructions. Designed for cavities between 90-105mm, this lintel features a 100mm outer and inner leaf, making it ideal for medium-duty applications. With a 60-minute fire rating and compliance with BS EN845-2:2013+A1:2016, it combines strength, safety, and reliability. The absence of a baseplate and factory-fitted insulation reduces thermal bridging, while the Supergalv coating extends its lifespan. Trusted by professionals, the Birtley CB90HD lintel is a top choice for robust and efficient cavity wall solutions.
Unique hot-dip galvanisation after fabrication, providing up to 50% more zinc protection than other approved coatings
Available in span lengths from 750mm to 3000mm.
Cavity: 90-105mm
Outer Leaf: 100mm
Inner Leaf: 100mm
Length
L (kN)
W (kg/m)
H (mm)
750-1500
36
10.1
141
1650-2100
36
14
193
2250-3000
36
14.4
201
Birtley
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online. The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days.
Please get in touch before you order if you need a specific delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page. Some orders are delivered on our vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations, we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269

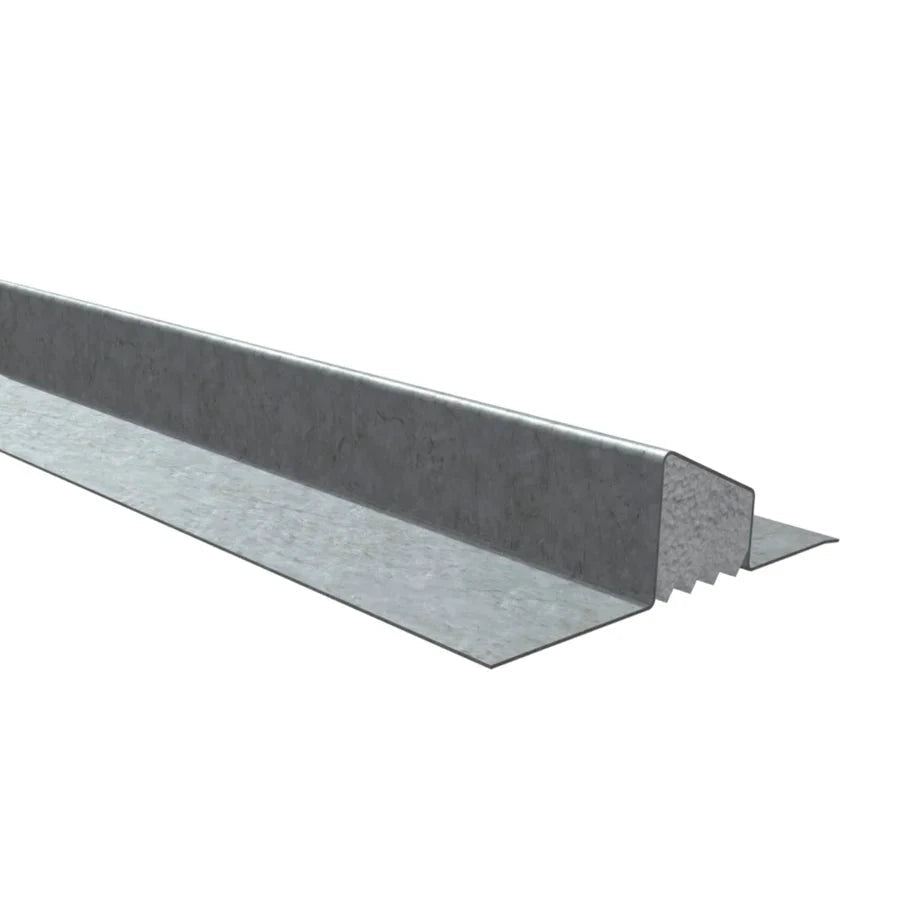

Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD
£63.00
£192.54
Unit price /
Unavailable
The Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD is a high-performance solution for 90-105mm cavities. Hot-dip galvanised for superior corrosion resistance, it features a 60-minute fire rating and complies with BS EN845-2:2013+A1:2016. Ideal for medium-duty applications, it reduces thermal bridging and offers customisable options.
Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD - 750mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
The Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD is engineered for superior performance in cavity wall constructions. Designed for cavities between 90-105mm, this lintel features a 100mm outer and inner leaf, making it ideal for medium-duty applications. With a 60-minute fire rating and compliance with BS EN845-2:2013+A1:2016, it combines strength, safety, and reliability. The absence of a baseplate and factory-fitted insulation reduces thermal bridging, while the Supergalv coating extends its lifespan. Trusted by professionals, the Birtley CB90HD lintel is a top choice for robust and efficient cavity wall solutions.
Unique hot-dip galvanisation after fabrication, providing up to 50% more zinc protection than other approved coatings
Available in span lengths from 750mm to 3000mm.
Cavity: 90-105mm
Outer Leaf: 100mm
Inner Leaf: 100mm
Length
L (kN)
W (kg/m)
H (mm)
750-1500
36
10.1
141
1650-2100
36
14
193
2250-3000
36
14.4
201
Birtley Medium Duty Cavity Wall Lintel 100mm CB90HD
The Birtley CB90HD lintel is hot-dip galvanised after fabrication, providing up to 50% more zinc protection than other coatings. This process ensures every surface is thoroughly coated, leaving no weak spots and significantly extending the lintel's lifespan. Whether in harsh weather or high-moisture environments, this lintel remains corrosion-free and reliable.
The Supergalv coating further enhances the lintel's durability, offering superior protection against rust and wear. This makes the CB90HD a cost-effective, long-term solution for cavity wall constructions, reducing maintenance needs and ensuring structural integrity.
Optimised for Medium-Duty Cavity Walls
Designed for cavities between 90-105mm, the Birtley CB90HD lintel features a 100mm outer and inner leaf, making it perfect for medium-duty applications. Its robust construction ensures it can handle the demands of residential and commercial projects with ease.
Enhanced Thermal Performance
The absence of a baseplate and factory-fitted insulation reduces thermal bridging, improving the lintel's energy efficiency. For bespoke thermal bridging assessments, Birtley's in-house team of accredited thermal modelers is available to provide tailored solutions.
Compliance and Safety
The Birtley CB90HD lintel complies with BS EN845-2:2013+A1:2016 and boasts a 60-minute fire rating when used with a two-coat plaster finish. This ensures it meets rigorous safety and structural standards, providing peace of mind for builders and architects.
Customisable Options for Specific Needs
The Birtley CB90HD lintel offers flexibility with alternative material options, including Ultragalv coating (150µm) and stainless steel 1.4301 (304). Outer leaf options such as reduced length flange (RFF), no rainwater drip (ND), and render mesh (MF) are also available, allowing you to tailor the lintel to your project's requirements.
