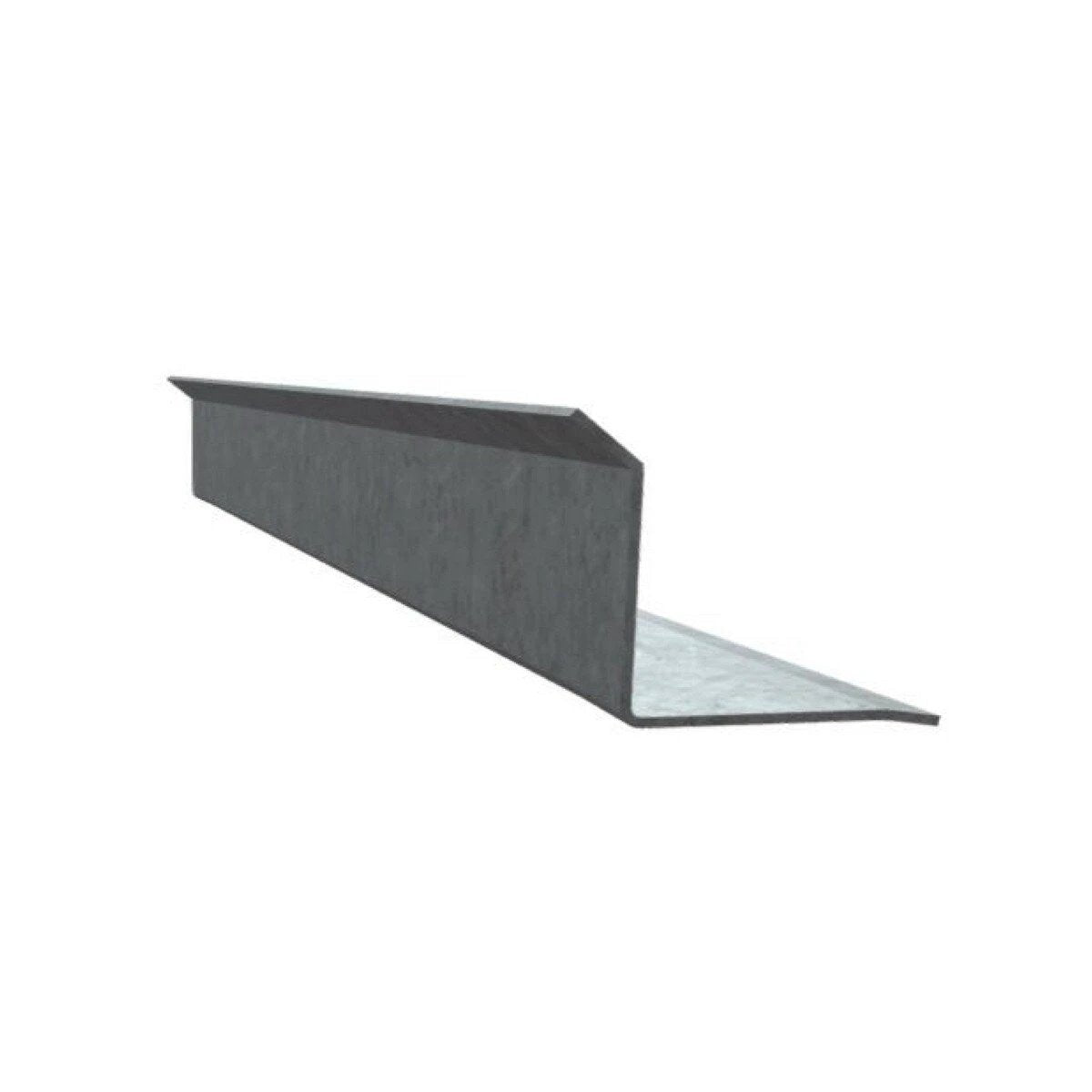

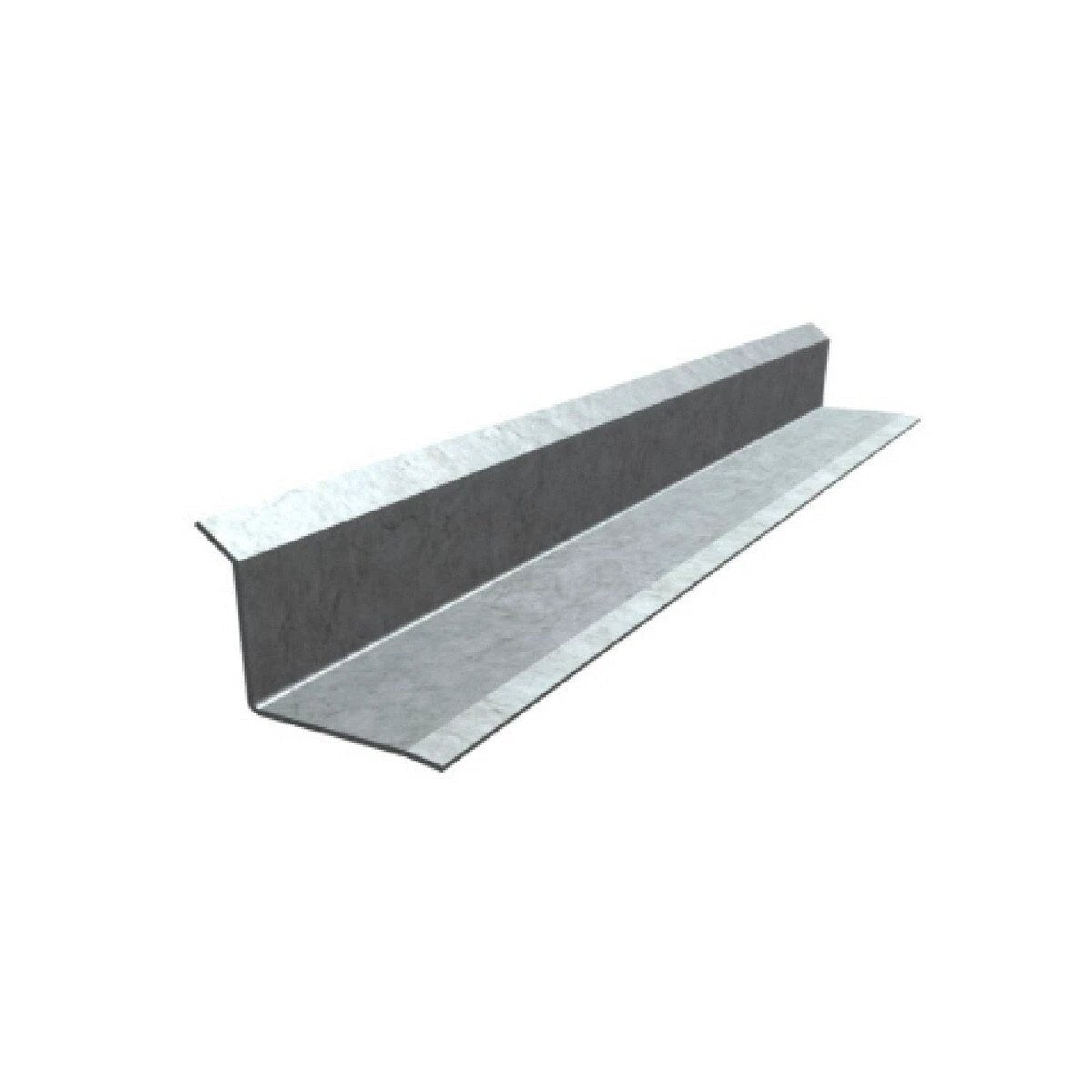

Birtley Single Leaf Angle Lintel offers superior structural support and long-term durability. This external wall lintel benefits from an innovative galvanising process. The standard duty wall lintel undergoes hot-dip galvanisation after fabrication to provide up to 50% more zinc protection than other/similar approved coatings for steel lintels. The post-fabrication galvanisation process covers every inch of this single-leaf angle lintel, boosting the overall life expectancy of the product.
Lintel Features:
Better Protection: This single leaf lintel delivers a robust performance due to its hot-dip galvanisation that provides up to 50% more zinc protection.
Special Coating: Supergalv coating extends the life expectancy of the Birtley LA lintel, making it a reliable option for different construction requirements.
Comprehensive Protection: Every part of the anglelintel is covered during the post-fabrication galvanizing process to ensure no surface suffers from poor paint protection.
Available in span lengths from 750mm to 3900mm.
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Lintels over 1500mm must be propped until masonry is fully loaded and cured.
Birtley
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
FAQ
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online.
The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days. Please get in touch before you order if you need a specifc delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page.
Some orders are delivered on our own vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269
Birtley Single Leaf Angle Lintel offers superior structural support and long-term durability. This external wall lintel benefits from an innovative galvanising process. The standard duty wall lintel undergoes hot-dip galvanisation after fabrication to provide up to 50% more zinc protection than other/similar approved coatings for steel lintels. The post-fabrication galvanisation process covers every inch of this single-leaf angle lintel, boosting the overall life expectancy of the product.
Lintel Features:
Better Protection: This single leaf lintel delivers a robust performance due to its hot-dip galvanisation that provides up to 50% more zinc protection.
Special Coating: Supergalv coating extends the life expectancy of the Birtley LA lintel, making it a reliable option for different construction requirements.
Comprehensive Protection: Every part of the anglelintel is covered during the post-fabrication galvanizing process to ensure no surface suffers from poor paint protection.
Available in span lengths from 750mm to 3900mm.
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Lintels over 1500mm must be propped until masonry is fully loaded and cured.
Birtley
Lintel
Length
750mm
900mm
1050mm
1200mm
1350mm
1500mm
1650mm
1800mm
1950mm
2100mm
2250mm
2400mm
2550mm
2700mm
2850mm
3000mm
3300mm
3600mm
3900mm
{PRODUCT_DESCRIPTION}
Delivery is free to Mainland England and Wales. Deliveries are chargable to Scotland.
Once the order is placed, our courier will call you within 3 working days to arrange a delivery date. If you do not hear from the courier within 3 days, please get in touch with us. The majority of deliveries are made within 7 days, occasionally a little longer during peak periods.
Deliveries are made between 08:00 and 18:00 on the day, we request the driver calls you one hour before with an advised time.
Delivery is made via a kerbside tail lift lorry, we cannot deliver to sloping ground as the tail lift must be able to lay flat.
The road must be wide enough for a lorry to fit down and free from obstruction, if there are any access restrictions, please contact us.
Deliveries must be signed for, please report any damages to us within 24 hours.
We offer all bricks with a tail lift offloading service, Please familiarise yourself with the information below.
Crane offloading is available as a premium service for some bricks.
All of our C16 and C24 graded timber is regularised
Regularised timber is timber that has been processed to have a uniform shape and size. This means that the wood has been sawn and planed to remove any irregularities and ensure that each piece of wood has consistent dimensions. Regularised timber is often used in construction, particularly in the framing of buildings, as it is easier to work with and can be more efficiently installed than irregularly shaped timber.
We have one of the largest ranges of timber lengths, dimensions and grades available to buy online. The variation you require will determine the exact lead time and delivery method.
Most orders arrive within 3-4 days, the maximum is 7 days.
Please get in touch before you order if you need a specific delivery date.
Delivery charges vary by postcode. To find out the delivery charge, add the item(s) you require to your basket and select CALCULATE SHIPPING at the bottom of the page. Some orders are delivered on our vehicles based in Leicestershire and Cheshire. We also use carriers including Yodel and Tuffnells. For some sizes and locations, we use regional distributors.
If you'd prefer crane offloading rather than tail lift vehicle offloading for your brick order then this service is available for the majority of bricks that we sell. Charges are shown at checkout.
For deliveries of less than 6 packs then Taillift offloading is normally a more cost effective option
Downloadable information can be found here:
Armstrong Cheshire supply the full range of Catnic Lintels. If you don't see the lintel you need on our website, choose from the Catnic Lintel Selector Brochure and give us a call 01625 322269

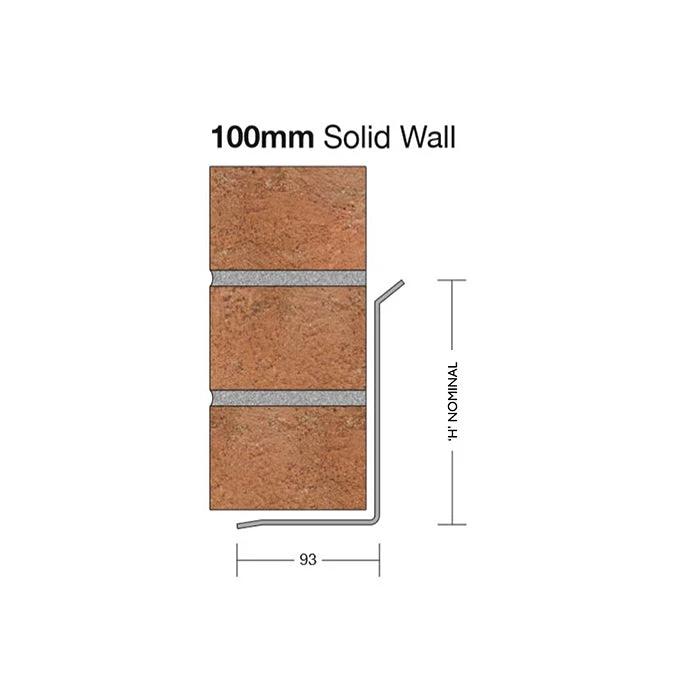

The Birtley External Wall Angle Lintel 100mm LA is a high-performance, hot-dip galvanised lintel designed for standard-duty external walls. With a 60-minute fire rating and compliance with BS EN845-2:2013+A1:2016, it ensures durability, safety, and reliability for your construction needs.
Birtley External Wall Angle Lintel 100mm LA - 750mm
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
Birtley Single Leaf Angle Lintel offers superior structural support and long-term durability. This external wall lintel benefits from an innovative galvanising process. The standard duty wall lintel undergoes hot-dip galvanisation after fabrication to provide up to 50% more zinc protection than other/similar approved coatings for steel lintels. The post-fabrication galvanisation process covers every inch of this single-leaf angle lintel, boosting the overall life expectancy of the product.
Lintel Features:
Better Protection: This single leaf lintel delivers a robust performance due to its hot-dip galvanisation that provides up to 50% more zinc protection.
Special Coating: Supergalv coating extends the life expectancy of the Birtley LA lintel, making it a reliable option for different construction requirements.
Comprehensive Protection: Every part of the anglelintel is covered during the post-fabrication galvanizing process to ensure no surface suffers from poor paint protection.
Available in span lengths from 750mm to 3900mm.
Installation Requirements:
Bed fully on bricklaying mortar
Must be used with a cavity tray - External walls only
Lintels over 1500mm must be propped until masonry is fully loaded and cured.

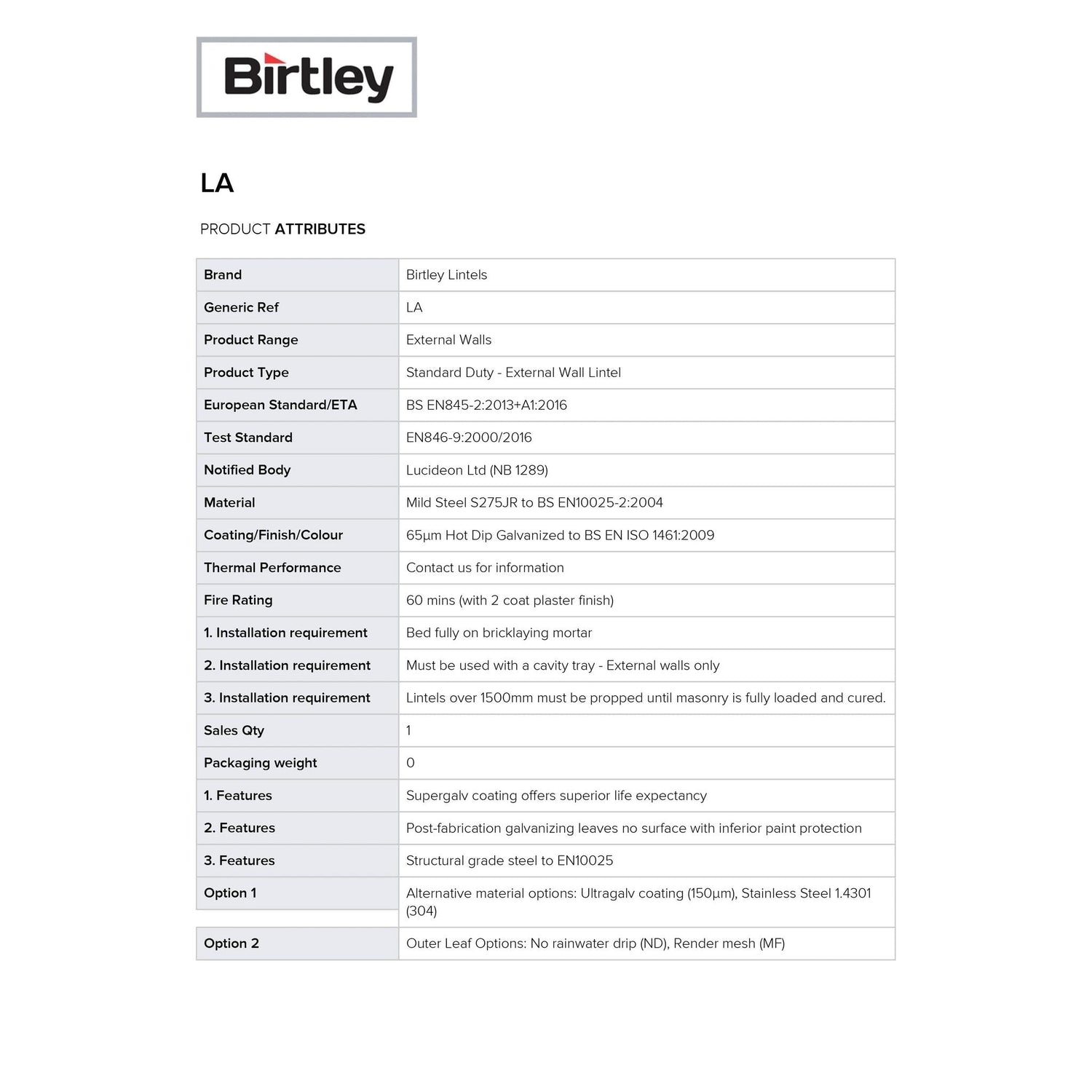

The Birtley External Wall Angle Lintel 100mm LA is built to last, using high-quality mild steel S275JR that meets EN10025 standards. Its 65µm hot-dip galvanised coating ensures maximum protection against rust and corrosion, making it a dependable choice for external wall applications. This lintel is designed to withstand the test of time, even in challenging environments.
Post-fabrication galvanising ensures every inch of the lintel is thoroughly coated, leaving no weak spots. This meticulous process enhances the lintel's durability, providing superior life expectancy and reducing maintenance needs over its lifespan.
Compliance and Safety Standards
Birtley 100mm LA lintel complies with BS EN845-2:2013+A1:2016, ensuring it meets rigorous structural and safety standards. With a 60-minute fire rating when used with a two-coat plaster finish, this lintel offers added safety for your building projects.
Easy Installation and Versatility
Designed for straightforward installation, the Birtley External Wall Angle Lintel 100mm LA must be fully bedded on bricklaying mortar and used with a cavity tray for external walls. For lintels over 1500mm, temporary propping is required until the masonry is fully loaded and cured. This ensures stability and safety during construction.
Customisable Options for Specific Needs
The Birtley 100mm LA lintel offers flexibility with alternative material options, including Ultragalv coating (150µm) and stainless steel 1.4301 (304). Outer leaf options such as no rainwater drip (ND) and render mesh (MF) are also available, allowing you to tailor the lintel to your project's requirements.
Why Choose Birtley Lintels?
Birtley Lintels are trusted by builders and architects across the UK for their unmatched quality, durability, and compliance with industry standards. The 100mm LA lintel is no exception, offering superior performance and peace of mind for your external wall projects.
