Birtley HD90/130 90mm Heavy Duty Cavity Wall Lintel - 750
is backordered and will ship as soon as it is back in stock.
Couldn't load collection availability
Delivery charges will vary depending on your location.
To find out delivery cost to your postcode, add the products your require to your basket and then review your basket, entering the delivery postcode
We look to dispatch all products same-day where possible, we use a close network of couriers we have worked alongside for a number of years and will share any and all shipping updates with you directly.
The Birtley HD90/130 is a heavy-duty cavity wall lintel designed for construction projects requiring wide inner leaf support. It has a unique Supergalv hot-dip galvanization process that provides up to 50% more zinc protection, leading to improved durability and thermal efficiency. With SWL ranging from 25 kN to 70 kN and complying with European standards, it is a reliable structural support option.
For a wide selection of Birtley Steel Lintels, click here.
Brand: Birtley Generic: Ref HD90/130 Product Range: Cavity Wall Lintels Product Sub-range: 90-105mm Cavity Wide Inner Leaf Product Type: Heavy Duty Cavity Wall Lintel - 100mm Outer leaf/125-140mm Inner Leaf European Standard/ETA: BS EN845-2:2013+A1:2016 Test Standard: EN846-9:2000/2016 Notified Body: Lucideon Ltd (NB 1289) Material: Mild Steel S275JR to BS EN10025-2:2004 Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009 Insulation Expanded Polystyrene - BREEAM rating A+
Fire Rating: 60 mins (with 2 coat plaster finish) 1. Installation requirement Bed fully on bricklaying mortar 2. Installation requirement Must be used with a cavity tray - External walls only 3. Installation requirement Not suitable for point loads or concrete floors 4. Installation requirement 150mm Minimum end bearing
Sales Qty: 1
Packaging weight 0 1. Features: Supergalv coating offers superior life expectancy 2. Features: Post-fabrication galvanizing leaves no surface with inferior paint protection 3. Features: Lack of baseplate and factory fitted insulation reduces thermal bridging 4. Features: Structural grade steel to EN10025 5. Features: Wide inner leaf to suit 125-140mm block Option 1: Alternative material options: Ultragalv coating (150µm), Stainless Steel 1.4301 (304) Option 2: Outer Leaf Options: Reduced length flange (RFF), No rainwater drip (ND), Render mesh (MF) Option 3: Inner Leaf Options: No plaster key (NM), Closer plate (CP)
No reviews

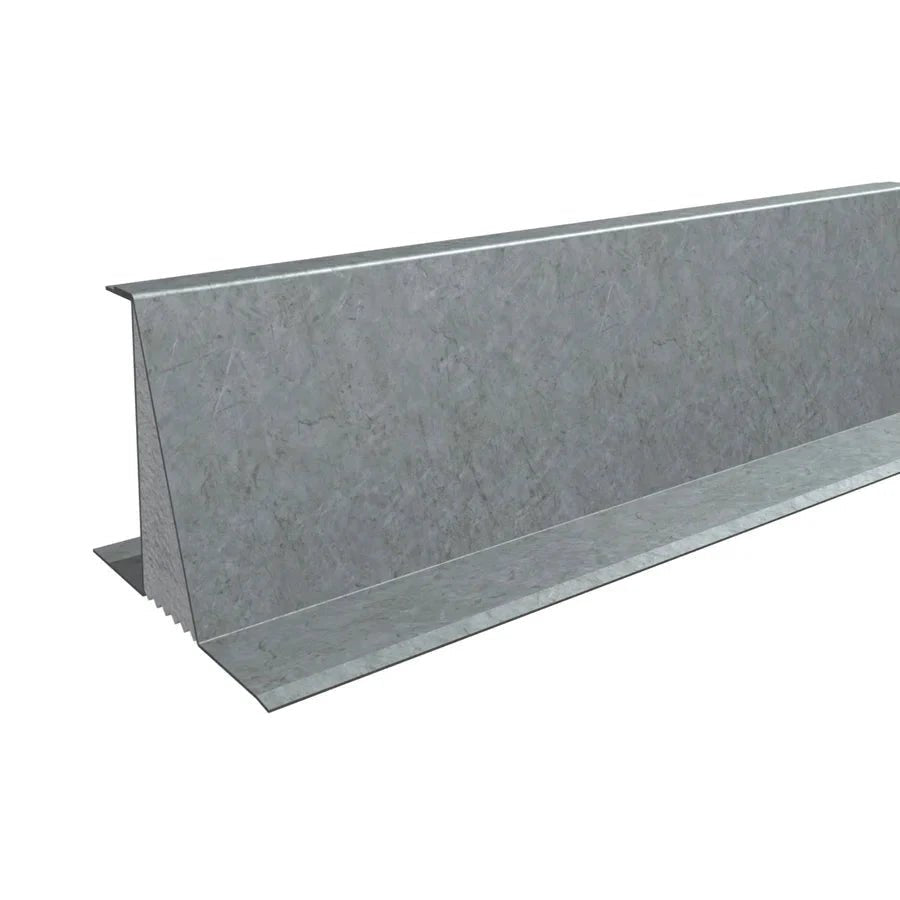

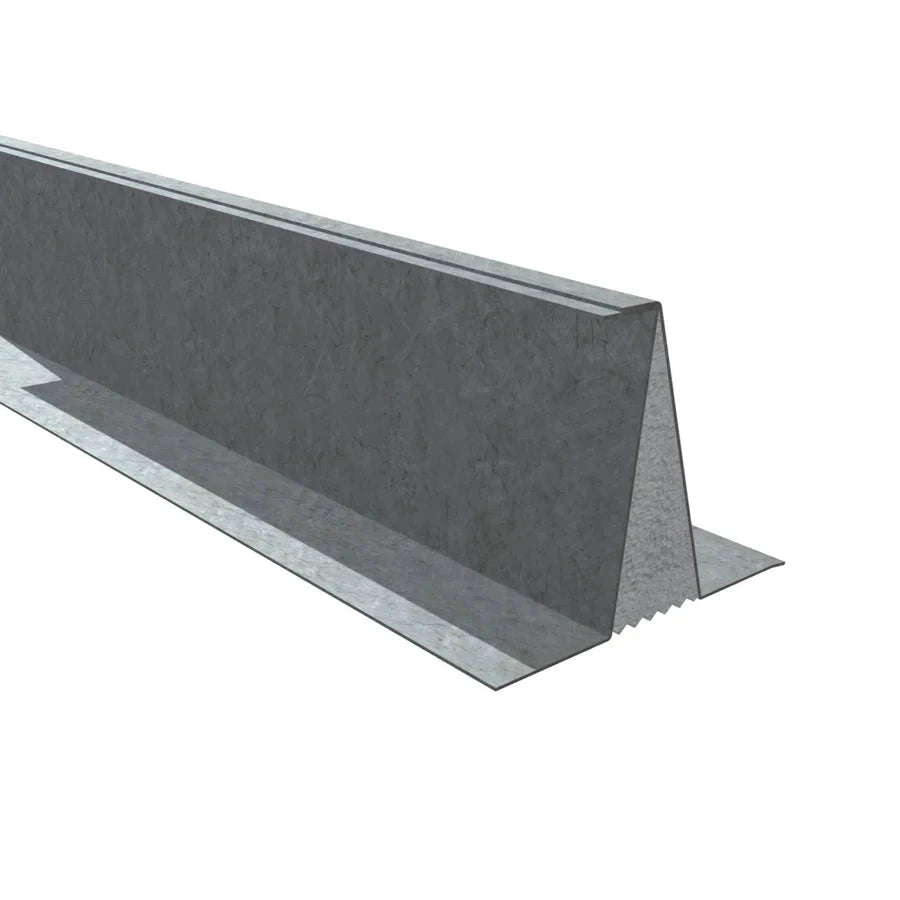

Birtley HD90/130 90mm Heavy Duty Cavity Wall Lintel

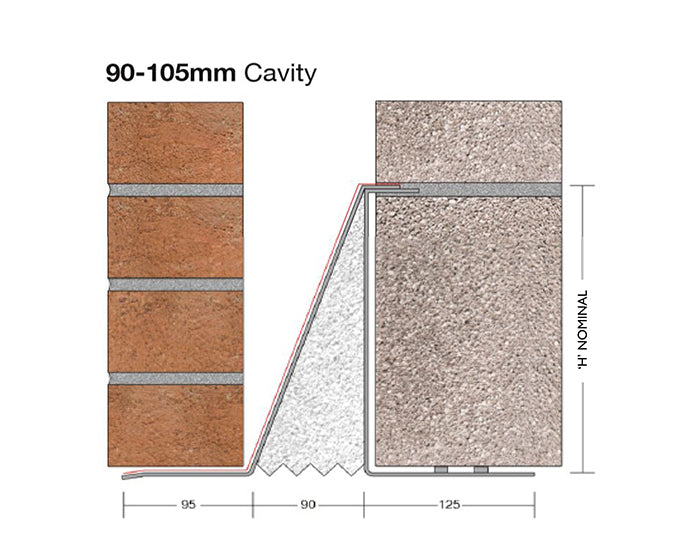

The Birtley HD90/130 is a heavy-duty cavity wall lintel designed for cavities ranging from 90-105mm. It features a wide inner leaf suitable for 125-140mm blockwork and a 100mm outer leaf. This lintel must have a solid, fully jointed blockwork infill to the inner leaf.
This lintel is hot-dip galvanized after fabrication, providing up to 50% more zinc protection than other approved coatings. The lack of a baseplate and factory-fitted insulation reduces thermal bridging.
Technical Specifications
- Cavity Width: 90-105mm
- Inner Leaf: 125-140mm
- Outer Leaf: 100mm
- Material: Mild Steel S275JR to BS EN10025-2:2004
- Coating: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
- Fire Rating: 60 minutes (with 2 coat plaster finish)
Features
- Supergalv coating offers superior life expectancy.
- Post-fabrication galvanizing leaves no surface with inferior paint protection.
- Lack of baseplate and factory-fitted insulation reduces thermal bridging.
- Structural grade steel to EN10025.
Installation Requirements
- Must be bedded fully on bricklaying mortar.
- Must be used with a cavity tray for external walls.
- Not suitable for point loads or concrete floors.
- Requires a minimum end bearing of 150mm.
Why Choose Birtley?
Birtley lintels are known for their durability and superior protection against corrosion. Our post-fabrication galvanizing process ensures that every surface is protected, providing a longer lifespan for your construction projects.
